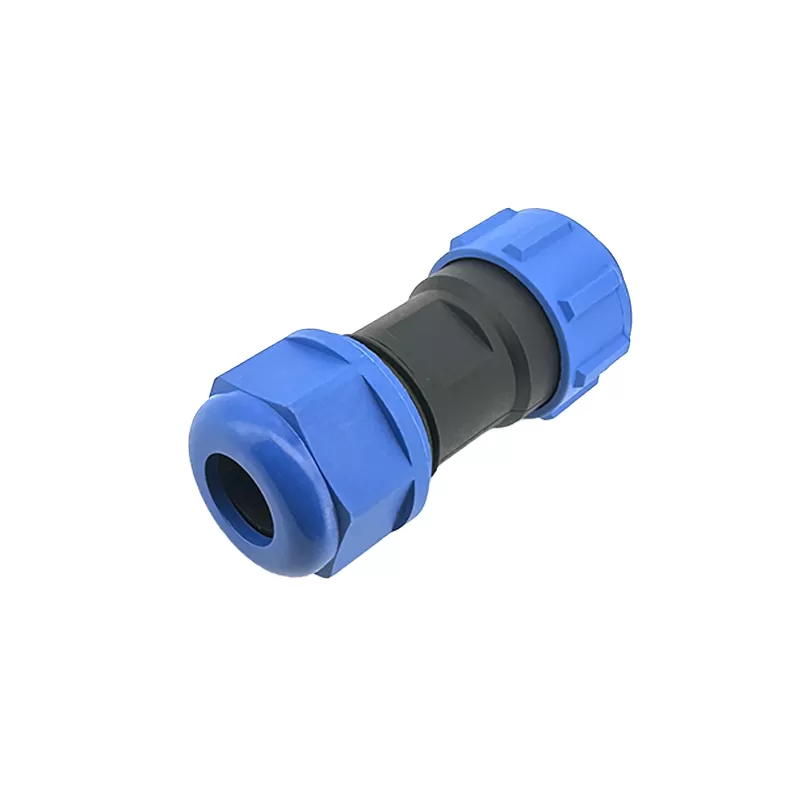

    SP2110/S Compatible IP68 Y21 Connector, Female Cable Plug, Solder Type, Alternative to: RHTOY21B1

    Series P/N:RHTOY21B1

    RHT provides a wide selection of Y13, Y17, and Y21 IP68 Waterproof Circular Connectors, supporting reliable electrical connections for industrial equipment, outdoor devices, and automation systems.

    With various connector types, sizes, contact configurations, and mounting options, our products meet different wiring and installation requirements.

    As a connector solutions partner, RHT works closely with engineering teams to understand technical needs and provide suitable waterproof circular connector solutions from sample evaluation and design verification to product integration and project implementation.


    Inquire Now
    Share
    Product parameter:

    SP2110/S Compatible IP68 Y21 Connector, Female Cable Plug, Solder Type, Alternative to: RHTOY21B1

    Features

    -Connector Type:Female plug design suitable for cable connections.

    -Solder Termination:Allows for secure, permanent connections through soldering, ensuring reliable electrical conductivity.

    -Durable Construction:Made from robust materials (often thermoplastic or metal) to withstand harsh environments.

    -Temperature Resistance:Capable of operating within a wide temperature range.


    Applications

    1.Outdoor Equipment

    2.Marine Applications

    3.Industrial Machinery

    4.Automotive Systems


    Specifications

     Material & SPEC.

    1.Shell Material:                PPO,PA66 UL94V-0

    2.Insulation Materials:      PPS, High Temperature 260°C

    3.Contact:                        Brass,Gold-plated

    4.Insulation resistance:    2000MΩ

    5.Number of   poles:         2~12  poles

    6.Coupling:                       Threaded

    7.Termination:                  Solder

    8.Cable outer Diameter:    7~12mm

    9.IP Rating:                      IP68

    10.Durability:                    500 mating cycles

    11.Temperature Range:      -25°C~+80°C


    Technical Documents

    Please contact us for more information.
