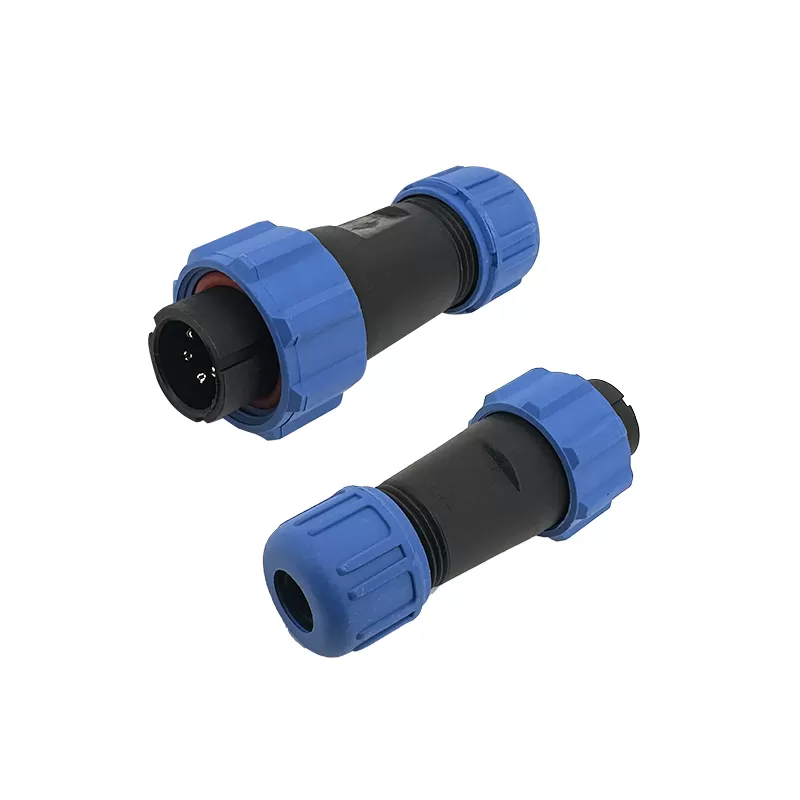

SP1310/P Compatible IP68 W13 Connector, Male Cable Plug, Solder Type, Alternative to: RHTOY13A1

Series P/N: RHTOY13A1

RHT provides a wide selection of Y13, Y17, and Y21 IP68 Waterproof Circular Connectors, supporting reliable electrical connections for industrial equipment, outdoor devices, and automation systems.

With various connector types, sizes, contact configurations, and mounting options, our products meet different wiring and installation requirements.

As a connector solutions partner, RHT works closely with engineering teams to understand technical needs and provide suitable waterproof circular connector solutions from sample evaluation and design verification to product integration and project implementation.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

SP1310/P Compatible IP68 W13 Connector, Male Cable Plug, Solder Type, Alternative to: RHTOY13A1

Features

-Design and Structure:

Male Plug: Designed to be soldered onto the end of a cable, providing a secure electrical connection.

Threaded Coupling: Typically features a threaded coupling mechanism that ensures a tight and secure fit, preventing accidental disconnection.

Durable Housing: Constructed from rugged materials such as metal or high-grade plastic to withstand impacts and environmental stresses.

-Electrical Characteristics:

Solder Contacts: The male plug is equipped with solder contacts inside the housing, allowing for a reliable connection between the cable conductors and the connector pins.

Current and Voltage Ratings: Designed to handle specific current and voltage ratings suitable for various applications, ensuring safe and reliable electrical performance.

-Versatility:

Wide Range of Applications: Used in outdoor equipment, marine environments, industrial machinery, and any application where exposure to moisture, dust, and rough handling is a concern.

Compatibility: Designed to be compatible with corresponding female connectors or receptacles of the same series, ensuring interoperability in different systems.

Applications

1.Telecommunications and Data Networks

2.Marine and Aquatic Applications

3.Industrial Machinery and Equipment

4.Renewable Energy

Specifications

Material & SPEC.

1.Shell Material: PPO,PA66 UL94V-0

2.Insulation Materials: PPS, High Temperature 260°C

3.Contact: Brass,Gold-plated

4.Insulation resistance: 2000MΩ

5.Number of poles: 2~9 poles
