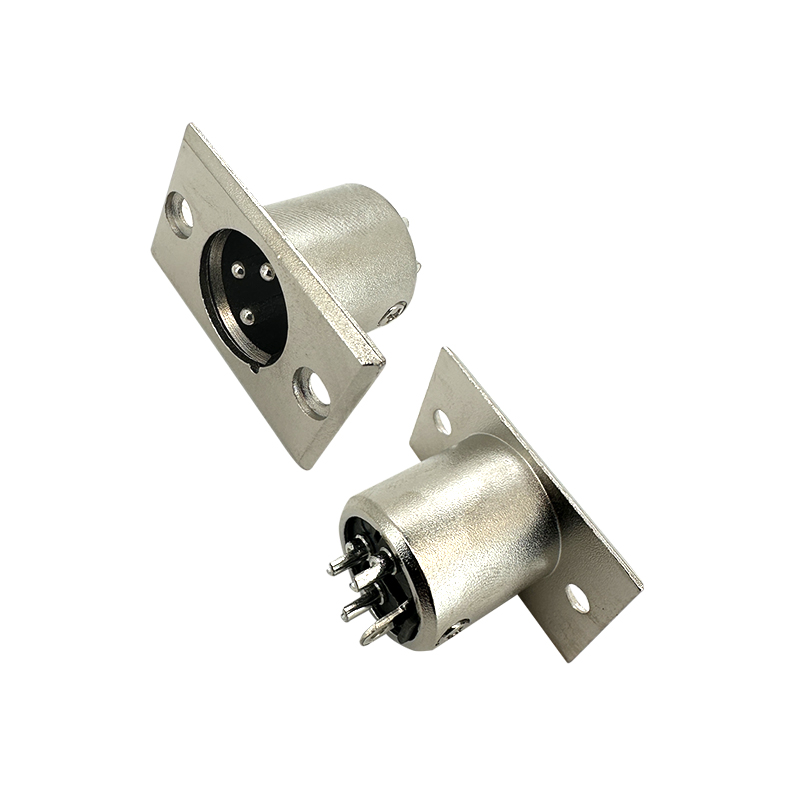

XLR Socket Connector :RHTAYLR-S07

Series P/N:RHTAYLR-S07

RHT provides a wide selection of XLR Connectors, supporting reliable audio signal transmission and connections for professional audio equipment, microphones, mixing consoles, amplifiers, stage sound systems, and recording equipment.

With various connector types, pin configurations, mounting options, and structural designs, our products meet different audio connection requirements, installation conditions, and equipment integration needs.

RHT works closely with engineering teams to understand technical requirements and provide suitable XLR Connector solutions, from sample evaluation and specification confirmation to design verification and product integration.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-High Signal Integrity: The balanced connection minimizes signal loss and distortion, providing a cleaner, more accurate audio or video signal.

-Impact Resistance: The robust construction can withstand frequent use and harsh handling, making them suitable for demanding environments like live performances and professional studios.

-Improved Conductivity: Many XLR sockets feature gold-plated contacts, which enhance the conductivity and ensure minimal signal loss.

-Corrosion Resistance: The gold plating prevents oxidation and corrosion, ensuring reliable performance and a long lifespan, even in harsh or humid environments.

Applications

1.Microphone Connections

2.Industrial and Scientific Applications

3.Professional Audio Systems

4.Medical Equipment

Specifications

Contact resistance: ≤ 0.03Ω

Insulation resistance: ≥ 100mΩ

Withstand voltage: 500V AC (50Hz)/minute

Rated load: 50V DC, 1A

Insertion and extraction force: 4-40N

Temperature range: -30° C to + 80°
