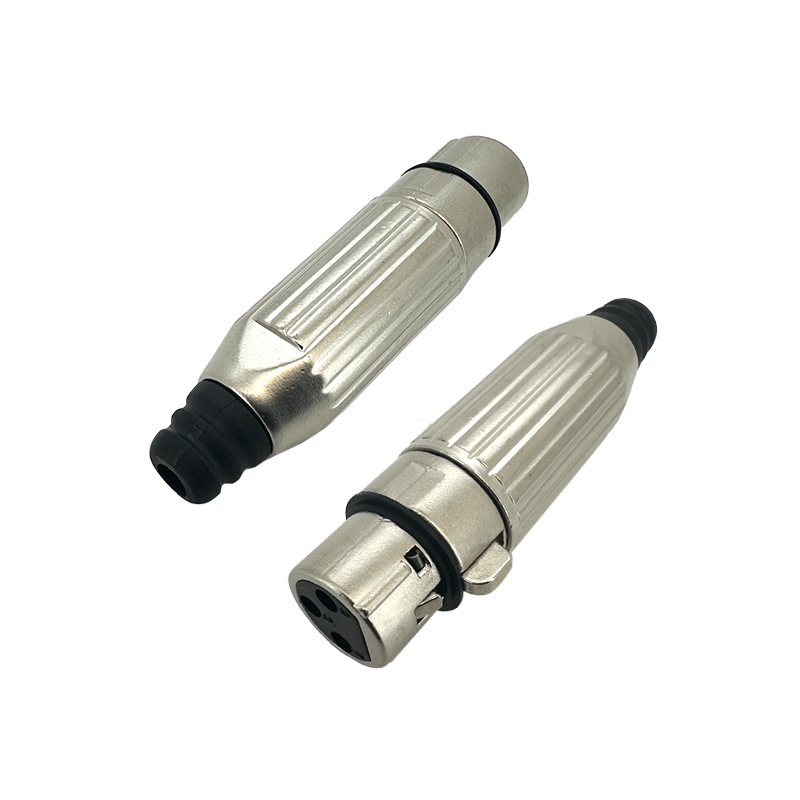

XLR Plug Connector :RHTAYLR-P15

Series P/N:RHTAYLR-P15

RHT provides a wide selection of XLR Connectors, supporting reliable audio signal transmission and connections for professional audio equipment, microphones, mixing consoles, amplifiers, stage sound systems, and recording equipment.

With various connector types, pin configurations, mounting options, and structural designs, our products meet different audio connection requirements, installation conditions, and equipment integration needs.

RHT works closely with engineering teams to understand technical requirements and provide suitable XLR Connector solutions, from sample evaluation and specification confirmation to design verification and product integration.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Noise Rejection: XLR connectors use balanced audio signals to help minimize electromagnetic interference (EMI) and radio frequency interference (RFI), making them ideal for transmitting clean audio over long distances.

-Grounding: The balanced design consists of three contacts—positive, negative, and ground—helping to reduce ground loop hum and interference that can affect sound quality.

-Shock Resistance: The robust construction is resistant to wear, corrosion, and damage from impact, making XLR connectors suitable for high-stress environments like live concerts or field recording.

-Versatility: XLR connectors are versatile and used in various applications beyond audio, including professional lighting equipment, intercom systems, and some digital audio interfaces. They can carry balanced audio signals over long distances without significant signal degradation.

Applications

1.Microphone Connections

2.Live Performances and Concerts

3.Recording and Field Sound Equipment

4.Multi-Channel Audio Systems

Specifications

Number of contacts: 3

Contact resistance: ≤ 5M Ω

Insulation resistance: ≥ 5000M Ω

Rated current : 16 A

Voltage: 1400V

Axial fixity: ≥ 100N
