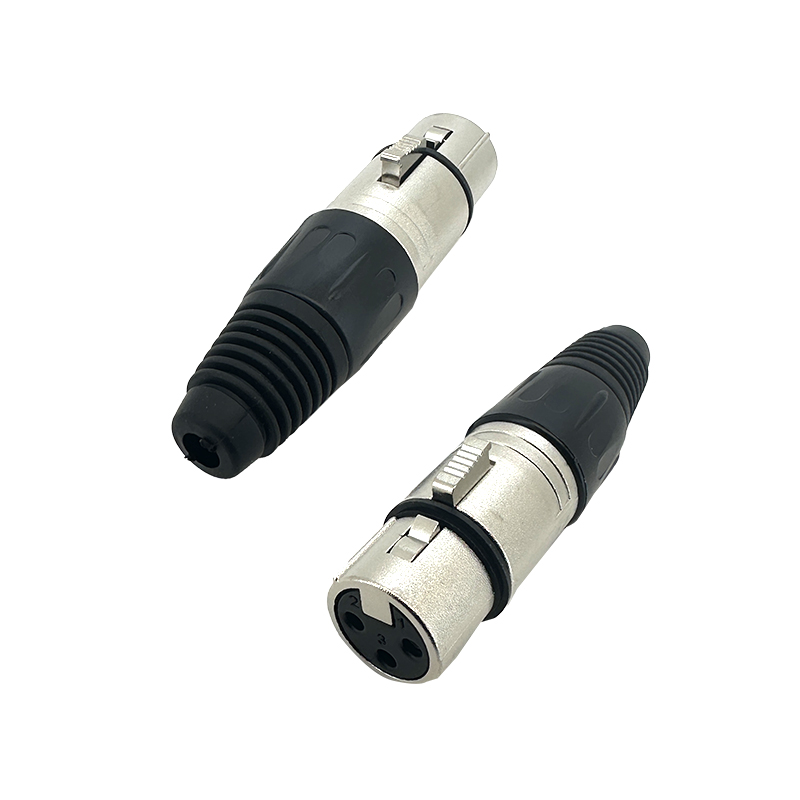

XLR Plug Connector :RHTAYLR-P11

Series P/N: RHTAYLR-P11

RHT provides a wide selection of XLR Connectors, supporting reliable audio signal transmission and connections for professional audio equipment, microphones, mixing consoles, amplifiers, stage sound systems, and recording equipment.

With various connector types, pin configurations, mounting options, and structural designs, our products meet different audio connection requirements, installation conditions, and equipment integration needs.

RHT works closely with engineering teams to understand technical requirements and provide suitable XLR Connector solutions, from sample evaluation and specification confirmation to design verification and product integration.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Noise Reduction: XLR connectors are designed to transmit balanced audio signals, which reduces noise and interference, making them ideal for professional environments where signal clarity is crucial.

-Grounding: The balanced design (with three pins—positive, negative, and ground) helps in eliminating ground loop hum and electromagnetic interference (EMI), ensuring a clean and clear signal.

-Long Lifespan: The robust construction ensures that XLR plugs can withstand frequent plugging and unplugging in demanding environments like live events, field recordings, and studios.

-Superior Signal Transmission: Many XLR connectors have gold-plated contacts, which ensure low contact resistance, high conductivity, and minimal signal degradation over time.ent.

Applications

1.Microphone Connections

2.Broadcasting

3.Live Performances and Concerts

4.Theater and Stage Productions

Specifications

Number of contacts: 3

Contact Resistance: ≤ 3 mOhms

Insulation Resistance Initial: > 2 GOhms

After Damp Heat Test: > 1 GOhms

Dielectric Strength: 1500 V dc

Rated current : 16 A
