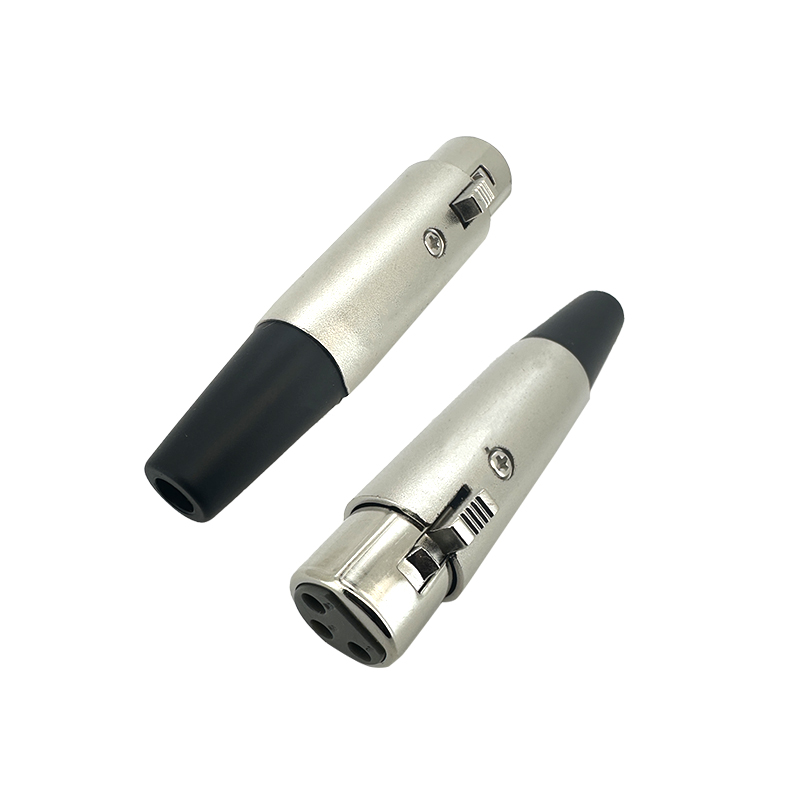

XLR Plug Connector:RHTAYLR-P10

Series P/N:RHTAYLR-P10

RHT provides a wide selection of XLR Connectors, supporting reliable audio signal transmission and connections for professional audio equipment, microphones, mixing consoles, amplifiers, stage sound systems, and recording equipment.

With various connector types, pin configurations, mounting options, and structural designs, our products meet different audio connection requirements, installation conditions, and equipment integration needs.

RHT works closely with engineering teams to understand technical requirements and provide suitable XLR Connector solutions, from sample evaluation and specification confirmation to design verification and product integration.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Grounding and Shielding: The balanced design of XLR plugs uses three pins (signal, negative signal, and ground), which helps in rejecting external electromagnetic interference (EMI) and ground loop hum.

-Superior Signal Transmission: The pins and contacts of most XLR connectors are gold-plated or nickel-plated, which enhances signal conductivity and minimizes oxidation or corrosion over time. This ensures long-term signal integrity and excellent audio quality.

-Clear Audio Transmission: XLR connectors are ideal for long-distance audio transmission, as they ensure low signal loss and high-quality sound reproduction.

-Gender Options: XLR connectors come in male and female versions. The male XLR plug has pins that mate with the female XLR socket, providing a secure connection. Female XLR sockets are typically found on equipment panels, while male XLR plugs are on cables.

Applications

1.Microphone Connections

2.Recording Studios

3.Live Performance and Concerts

4.Lighting Control Systems

Specifications

Number of contacts: 3

Contact Resistance: ≤ 3 mOhms

Insulation Resistance Initial: > 2 GOhms

After Damp Heat Test: > 1 GOhms

Dielectric Strength: 1500 V dc

Rated current : 16 A
