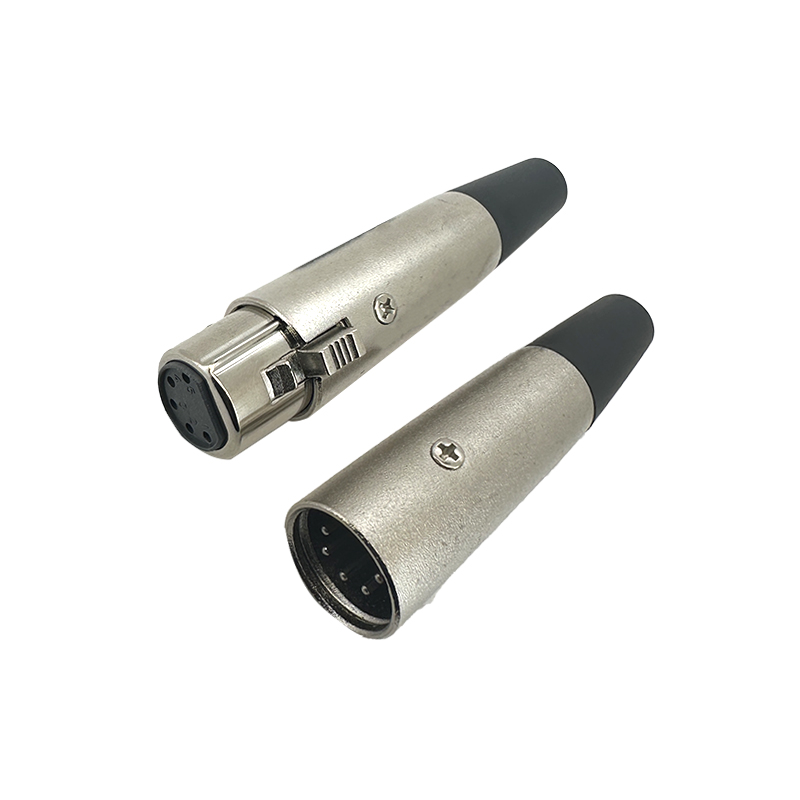

XLR Plug Connector :RHTAYLR-P06

Series P/N:RHTAYLR-P06

RHT provides a wide selection of XLR Connectors, supporting reliable audio signal transmission and connections for professional audio equipment, microphones, mixing consoles, amplifiers, stage sound systems, and recording equipment.

With various connector types, pin configurations, mounting options, and structural designs, our products meet different audio connection requirements, installation conditions, and equipment integration needs.

RHT works closely with engineering teams to understand technical requirements and provide suitable XLR Connector solutions, from sample evaluation and specification confirmation to design verification and product integration.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Corrosion Resistance: Many XLR plugs have nickel or gold-plated contacts, providing corrosion resistance and ensuring long-lasting performance even under harsh conditions.

-Signal Integrity: XLR plugs maintain the integrity of the audio signal, providing clean, distortion-free audio in both professional audio equipment and broadcasting.

-Push-Button Lock: XLR plugs feature a locking mechanism that ensures a secure connection. This prevents accidental disconnections during performances, broadcasts, or other critical applications.

-Durability: The locking mechanism is designed to hold the plug firmly in place, even under vibration, making it ideal for environments like live sound systems, concerts, and stage productions.

Applications

1.Microphone Connections

2.Professional Audio Systems

3.Broadcasting

4.Field Recording

Specifications

Number of contacts: 3

Contact Resistance: ≤ 3 mOhms

Insulation Resistance Initial: > 2 GOhms

After Damp Heat Test: > 1 GOhms

Dielectric Strength: 1500 V dc

Rated current : 16 A
