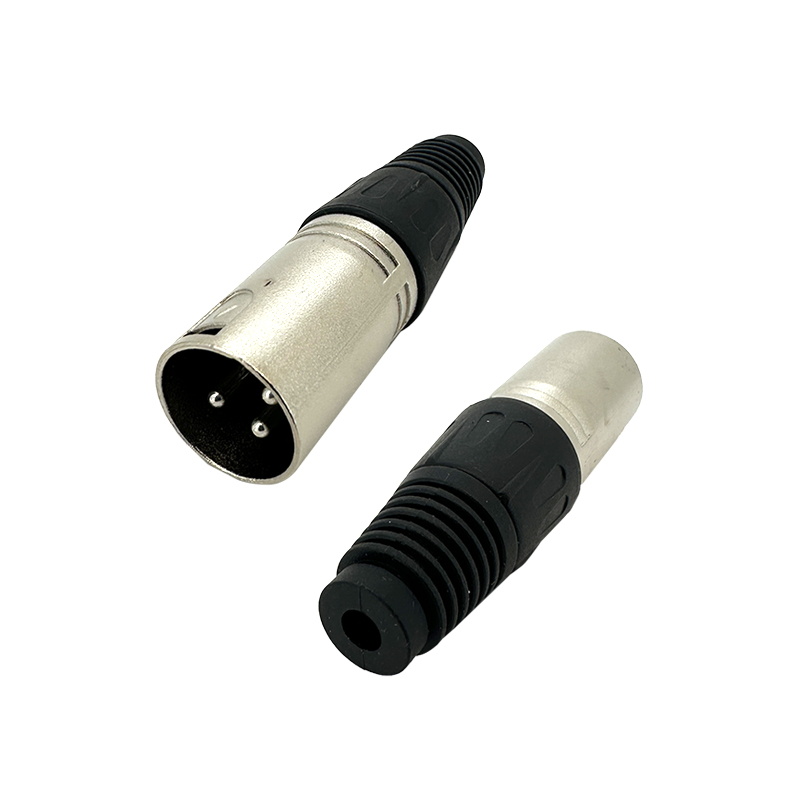

XLR Plug Connector:RHTAYLR-P05

Series P/N:RHTAYLR-P05

RHT provides a wide selection of XLR Connectors, supporting reliable audio signal transmission and connections for professional audio equipment, microphones, mixing consoles, amplifiers, stage sound systems, and recording equipment.

With various connector types, pin configurations, mounting options, and structural designs, our products meet different audio connection requirements, installation conditions, and equipment integration needs.

RHT works closely with engineering teams to understand technical requirements and provide suitable XLR Connector solutions, from sample evaluation and specification confirmation to design verification and product integration.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Standardization: XLR connectors adhere to industry standards (such as AES and IEC standards) for dimensions and pin configurations, ensuring compatibility across different manufacturers and equipment.

-Water Resistance: Some XLR connectors, especially those used in outdoor or touring environments, may feature water-resistant designs or coatings to protect against moisture and environmental elements.

-Shielded Design: XLR connectors are designed with a shielded housing and connections, which helps to protect the audio signal from electromagnetic interference (EMI) and radio frequency interference (RFI). This shielding ensures clean and noise-free audio transmission.

-Gender Options: XLR connectors come in male and female versions. The male XLR plug has pins that mate with the female XLR socket, providing a secure connection. Female XLR sockets are typically found on equipment panels, while male XLR plugs are on cables.

Applications

1.Intercom Systems

2.Studio Equipment

3.Lighting Equipment

4.Video Equipment

Specifications

Number of contacts: 3

Contact Resistance: ≤ 3 mOhms

Insulation Resistance Initial: > 2 GOhms

After Damp Heat Test: > 1 GOhms

Dielectric Strength: 1500 V dc

Rated current : 16 A
