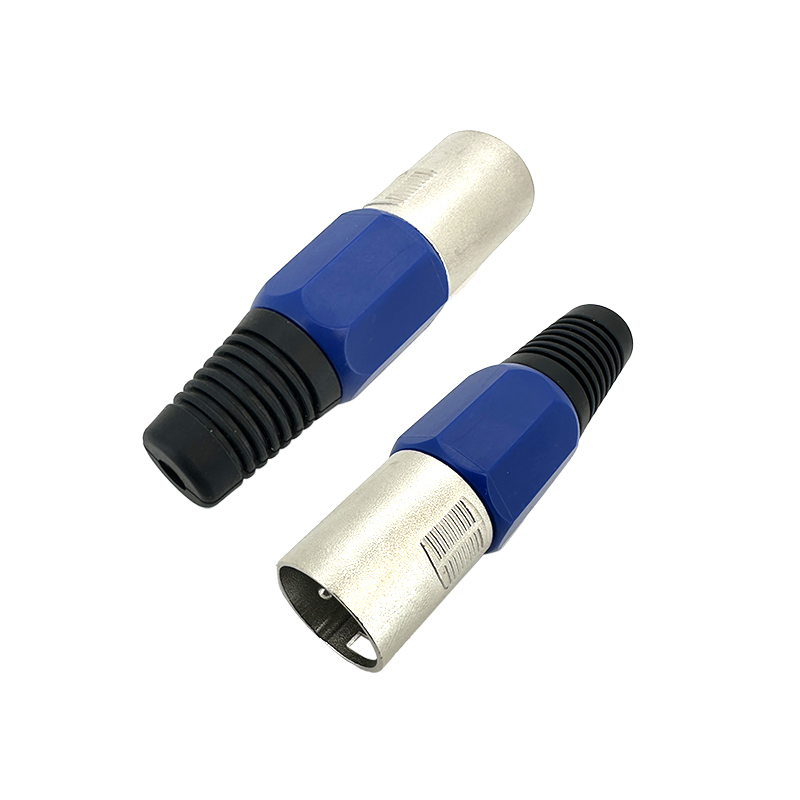

XLR Plug Connector :RHTAYLR-P04

Series P/N:RHTAYLR-P04

RHT provides a wide selection of XLR Connectors, supporting reliable audio signal transmission and connections for professional audio equipment, microphones, mixing consoles, amplifiers, stage sound systems, and recording equipment.

With various connector types, pin configurations, mounting options, and structural designs, our products meet different audio connection requirements, installation conditions, and equipment integration needs.

RHT works closely with engineering teams to understand technical requirements and provide suitable XLR Connector solutions, from sample evaluation and specification confirmation to design verification and product integration.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Gender Options: XLR connectors come in male and female versions. The male XLR plug has pins that mate with the female XLR socket, providing a secure connection. Female XLR sockets are typically found on equipment panels, while male XLR plugs are on cables.

-Color Coding: XLR connectors often feature color coding for easy identification:

Male XLR plugs are typically silver or nickel-plated.

Female XLR sockets may have color-coded rings (e.g., black for microphone inputs, red for line outputs) to distinguish between different signal types or functions.

-Latch Locking Mechanism: XLR connectors feature a latch or locking mechanism that securely holds the connector in place once inserted into a corresponding XLR socket. This locking mechanism prevents accidental disconnection, which is crucial in live sound and performance settings.

-Versatility: XLR connectors are versatile and used in various applications beyond audio, including professional lighting equipment, intercom systems, and some digital audio interfaces. They can carry balanced audio signals over long distances without significant signal degradation.

Applications

1.Microphones

2.Speakers and Amplifiers

3.Intercom Systems

4.Studio Equipment

Specifications

Number of contacts: 3

Contact Resistance: ≤ 3 mOhms

Insulation Resistance Initial: > 2 GOhms

After Damp Heat Test: > 1 GOhms

Dielectric Strength: 1500 V dc

Rated current : 16 A
