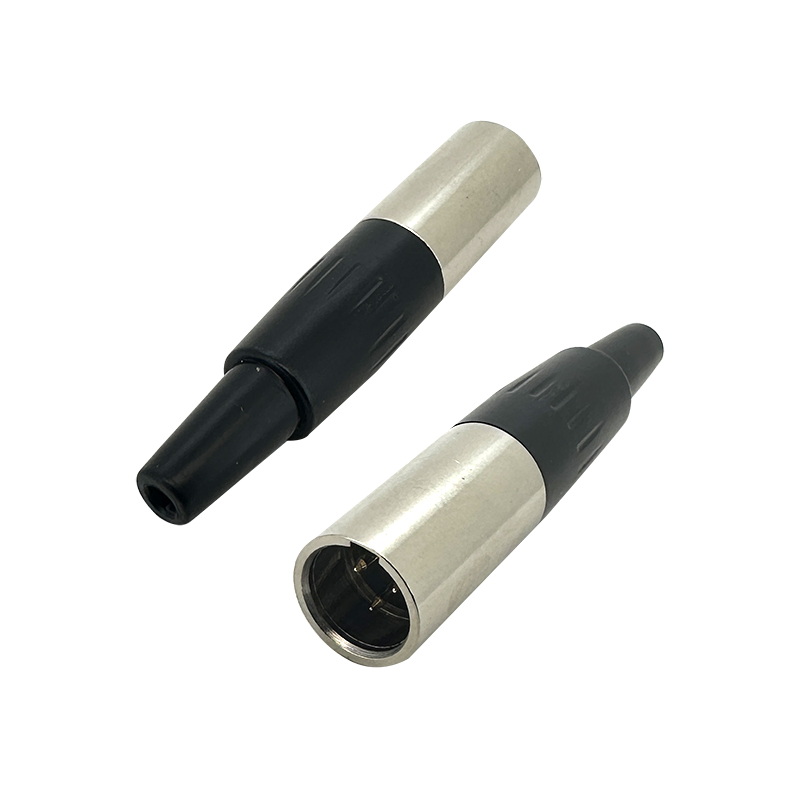

    Mini XLR Plug :RHTAYLR-P01C

    Series P/N: RHTAYLR-P01C

    RHT provides a wide selection of XLR Connectors, supporting reliable audio signal transmission and connections for professional audio equipment, microphones, mixing consoles, amplifiers, stage sound systems, and recording equipment.

    With various connector types, pin configurations, mounting options, and structural designs, our products meet different audio connection requirements, installation conditions, and equipment integration needs.

    RHT works closely with engineering teams to understand technical requirements and provide suitable XLR Connector solutions, from sample evaluation and specification confirmation to design verification and product integration.


    Inquire Now
    Share
    Product parameter:

    Features

    -Compact Size:

    Mini XLR plugs are smaller in size compared to standard XLR connectors, making them suitable for devices and applications where space is at a premium.

    -Design:

    Circular Connector: Like standard XLR connectors, Mini XLR plugs typically have a circular design with a locking mechanism. This ensures a secure connection, preventing accidental disconnection.

    -Pin Configuration:

    Mini XLR plugs come in various pin configurations, commonly 3-pin or 4-pin variants, although other configurations exist depending on the specific application. Each pin serves a specific function, such as signal, ground, and sometimes additional functions like power or control signals.

    -Durability:

    Constructed from durable materials such as metal or high-grade plastic, Mini XLR plugs are designed to withstand frequent use and provide reliable performance over time.


    Applications

    1.Video Production

    2.Musical Instruments

    3.Industrial and Communication Systems

    4.DIY and Custom Electronics Projects


    Specifications

    Electrical Specification:

    Rated current / voltage: 3A 250VAC

    The contact resistance: 5mΩMax

    nsulation Resistance: 500VDC 1000MΩmin

    The test voltage: 1000 VDC 1Min

    he ambient temperature: -30° C ~ 100° C

    he life of the product: 5000

    Diameter: Φ2 ~ Φ5mm

    Material:

    Contact material: gold-plated copper

    Insulator material: PA66,of PBT

    Connector Body Material: Metal
