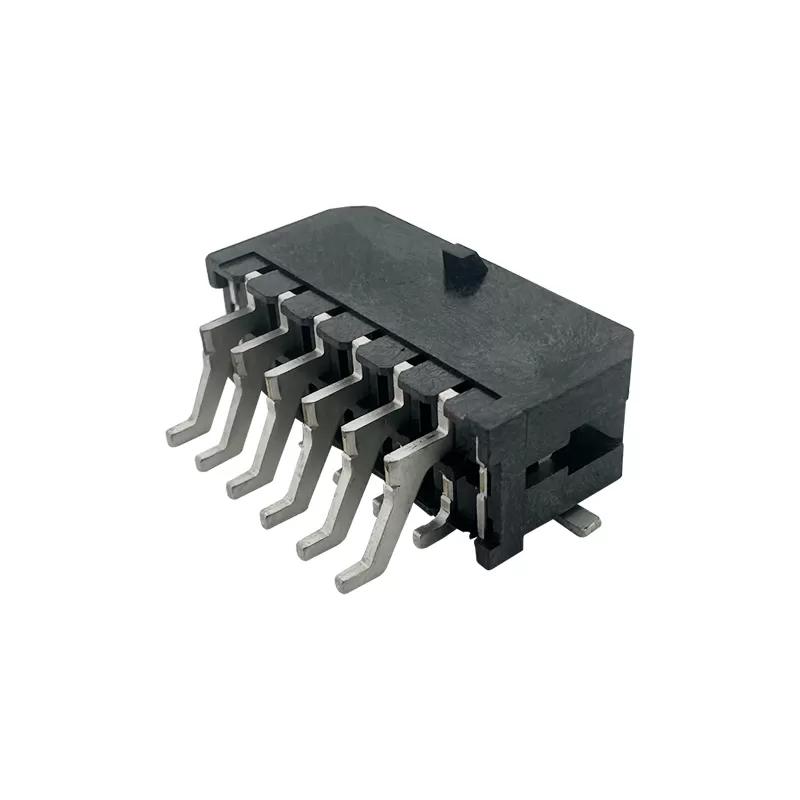

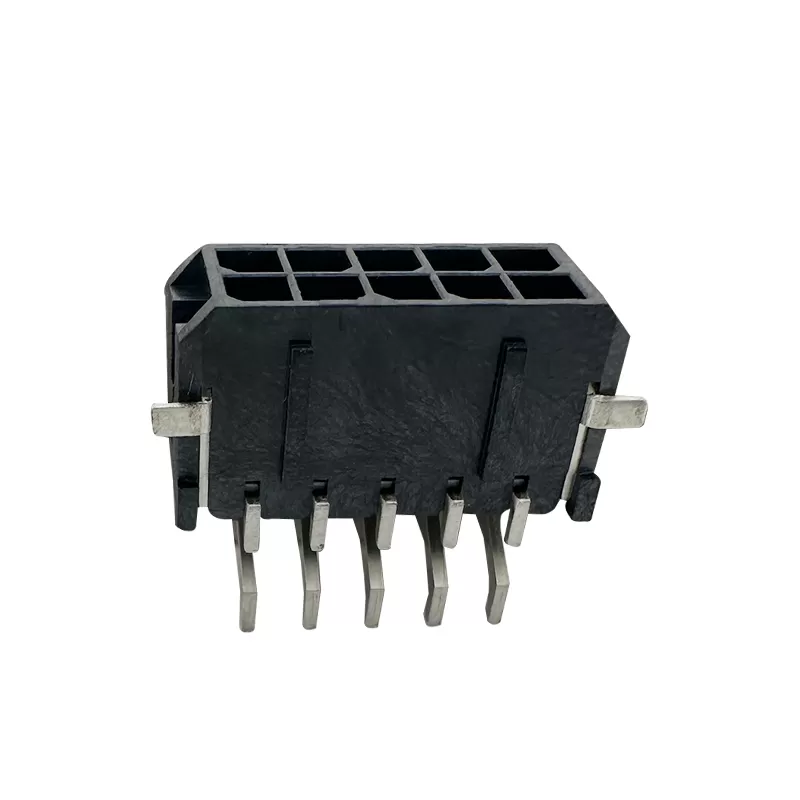

MOLEX 430300001 3.00mm Molex 43025 Series Wire-to-Board Connector – Alternative to RHTAYM1-3.00

Series P/N:RHTAYM1-3.00

RHT provides a wide selection of Wire to Board Connectors and Wire to Wire Connectors, helping engineers develop reliable and efficient wire connection solutions.

With various pitches, wire sizes, pin configurations, mounting options, and specifications, our connectors can meet different design requirements and application challenges.

As a connector solutions partner, RHT’s engineering team works closely with design teams to understand technical requirements, discuss development needs, and provide suitable solutions from sample evaluation and prototype validation to project development and mass production.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

MOLEX 430300001 3.00mm Molex 43025 Series Wire-to-Board Connector – Alternative to RHTAYM1-3.00

Features

-Contact Configuration:The connectors are available in various configurations, including single-row and dual-row options. They accommodate different pin counts, allowing flexibility in design and application.

-Contact Material and Plating:Contacts are typically made from materials like phosphor bronze or brass. They are often plated with materials such as tin or gold to enhance conductivity, prevent corrosion, and improve durability over multiple mating cycles.

-Housing Material:Connector housings are generally made from thermoplastics that provide mechanical strength, insulation, and protection against environmental factors. The housing material ensures the durability and reliability of the connector in various operating conditions.

-Environmental Ratings:Depending on the specific variant, the connectors may have different environmental ratings such as temperature range and resistance to moisture, making them suitable for diverse applications including industrial and automotive environments.

Applications

1.Telecommunications

2.Medical Devices

3.LED Lighting Systems

4.Power Supplies and Battery Management

Specifications

Rated Voltage: 250V AC.DC

Rated Current: 5A

Contact Resistance: 10mΩ max

Insulation Resistance: 1000MΩ min

Withstand voltage: 1500V AC / MIN

Temperature range for usage: -40 º C ~ +105 º C
