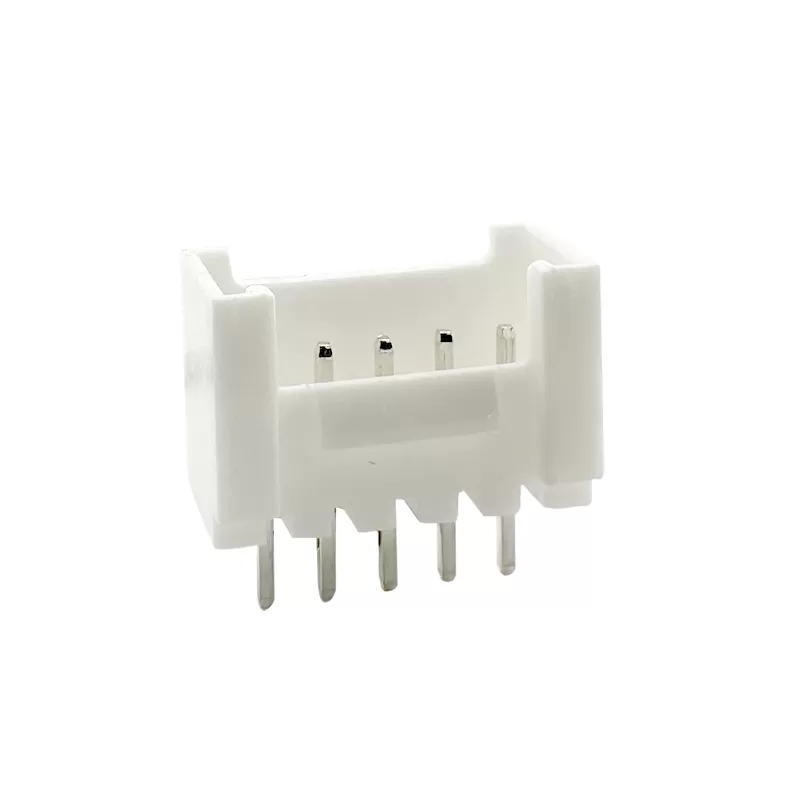

YEONHO YST200 2.00mm JST PH With Lock type Wire to Board Connector :RHTAYL2-2.00

YEONHO YST200

Features

-Electrical Performance: Capable of handling moderate currents, depending on the specific model and configuration, ensuring safe operation under typical electronic loads.

-Materials: Contacts are typically made from phosphor bronze with tin or gold plating. This choice of materials provides good conductivity, durability, and resistance to corrosion, ensuring long-term reliability.

-Keying: Designed with polarization features such as keying slots or tabs to prevent incorrect insertion and ensure proper orientation of the connector. This feature helps in avoiding damage to the connector and the circuit.

-Operating Conditions: Designed to operate within a wide range of temperatures, typically between -25°C to +85°C or higher, ensuring reliable performance in various environmental conditions.

Applications

1.Telecommunications Equipment

2.Industrial Equipment

3.Automotive Electronics

4.Medical Devices

Specifications

Order information:

RHTAYL2-2.00-XX-H
Pitch:2.00mm
XX-No.of 02~16 pins
H-Housing   T-Terminal  S-Straight male pin  R-Right angle male pin  VM-Vertical SMT Pin  RM-Horizontal SMT Pin

Material: PA66/LCP UL 94V-0
Contact : Brass
Finish : Plated Tin over Nickel
Current rating:3.0A AC,DC
Voltage rating:250V AC,DC
Temperature range:-45℃~+105℃
Insulationresistance:1000MΩ Min.
Withstanding voltage:1000V AC minute
Contact resistance:30mΩ Max.
Wire range  : AWG#24~#30

Technical Documents

Please contact us for more information.
