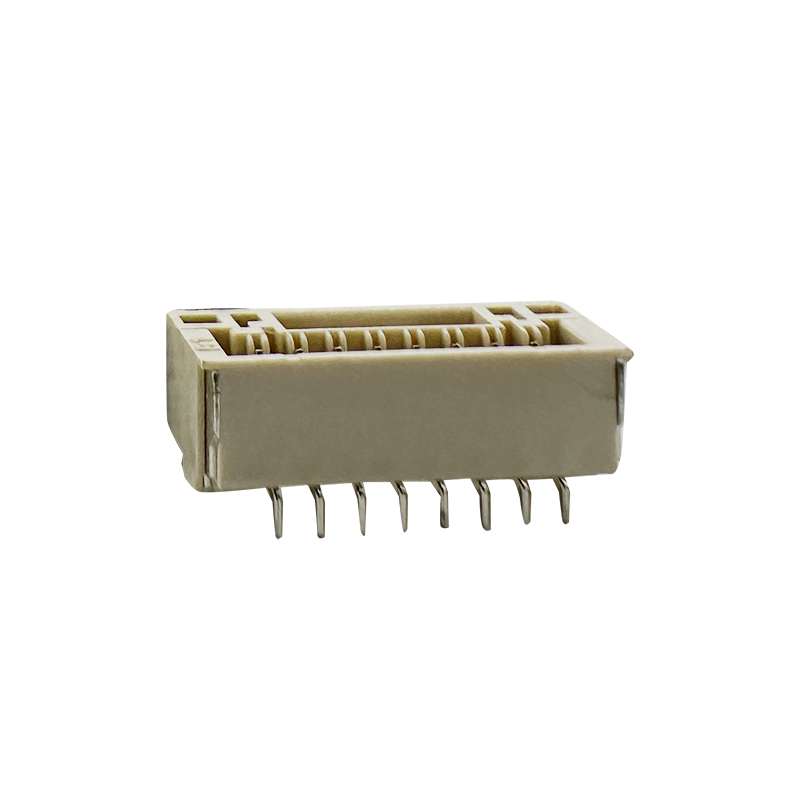

JST SMxxB-GHS-TB 1.25mm JST GHS/GHR Series Wire-to-Board Connector – Alternative to RHTAYL8-1.25

JJST SMxxB-GHS-TB 1.25mm JST GHS/GHR Series Wire-to-Board Connector – Alternative to RHTAYL8-1.25

Features

-Durability: Constructed with materials that provide durability and reliability in various environmental conditions, ensuring long-term performance.

-Mounting Style: Can be surface mount (SMT) or through-hole mount (THM), depending on the specific application requirements and design considerations.

-Locking Mechanism: Some models may feature locking mechanisms to ensure secure mating and prevent accidental disconnection, enhancing reliability in dynamic applications.

-Housing Material: Typically made from materials such as thermoplastics or thermosets, chosen for their mechanical strength, electrical insulation properties, and resistance to heat and chemicals.

Applications

1.Medical Devices

2.Computer and Peripherals

3.Industrial Equipment

4.Telecommunications

Specifications

1.25mm wire to board connector

Order information:

RHTAYL8-1.25-02-H

Pitch:1.25mm

pins:2~30 pins

H=Hosing / T=Terminal / M1=SMT  Male pin

Specifications

◆Material: Nylon UL 94V0 (Lead Free)

◆Contact : Phosphor Bronze

◆Finish : Plated Tin or Gold Flash Lead over Nickel

◆Current rating:1A AC,DC

◆Voltage rating:50V AC,DC

◆Temperature range:-35℃~+85℃

◆Insulationresistance:100MΩ/Min.

◆Withstanding voltage:500V AC/minute

◆Contact resistance:30mΩ/Max.

Technical Documents

Please contact us for more information.
