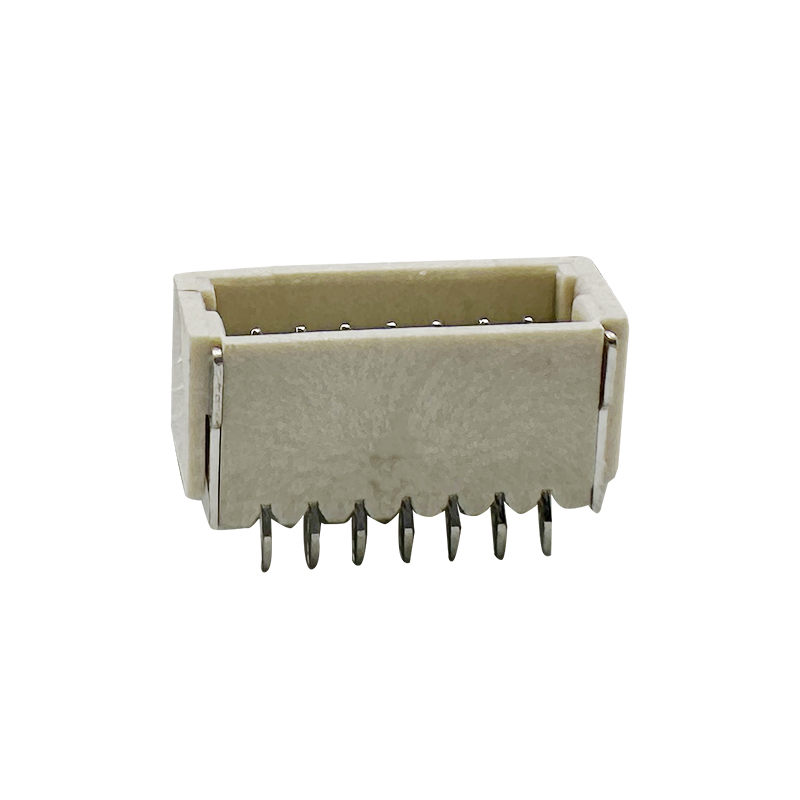

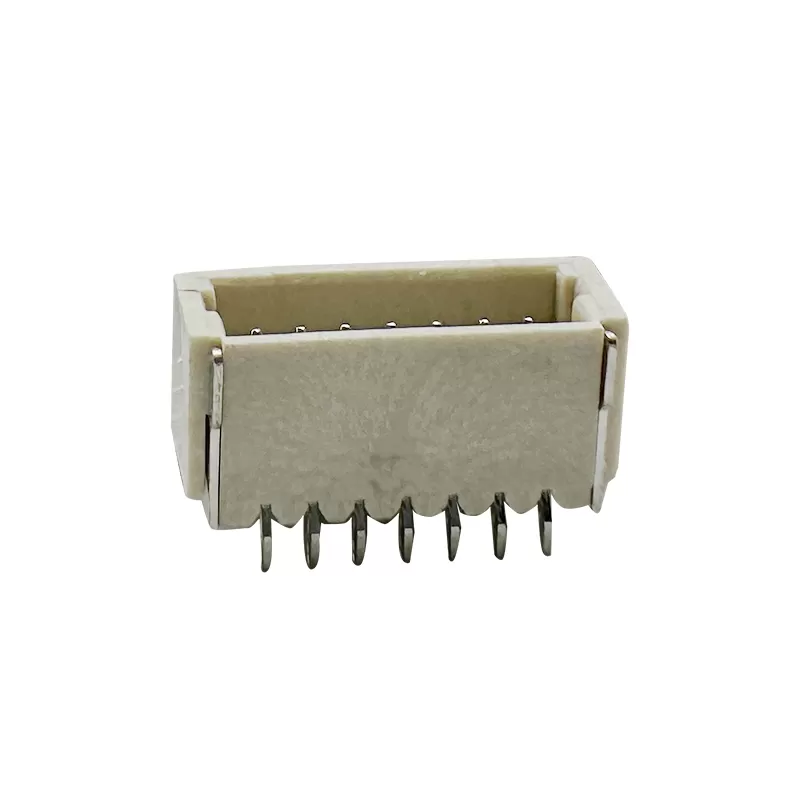

JST SMB-SRSS-TB 1.00mm JST SH SHR Type wire to board connector Double layer:RHTAYF1-1.00-2

JST SMB-SRSS-TB

Features

-Contacts: Available with multiple contacts (pins) per row, depending on the specific connector configuration, providing flexibility in design and connection requirements.

-Mounting Style: Typically available in through-hole mount (THT) configuration, suitable for PCB (Printed Circuit Board) mounting.

-Features: May include polarization features to prevent incorrect insertion, locking mechanisms for secure mating, and durable materials suitable for various environmental conditions.

-Reliability: Offers reliable electrical performance and durability, suitable for applications requiring stable connections over extended periods.

Applications

1.Computing Devices

2.Automotive Electronics

3.Industrial Equipment

4.Telecommunications

Specifications

1.00mm JST SH SHR Type wire to board connector

Order information:

RHTAYF1-1.00-1-02-H

Pitch:1.00mm

Pins:1=Single layer 2=Double layer

Pin numbur:2~40 pins

H=Hosing / T=Terminal / S=Straight male pin / R= Right angle male pin

RM=SMT Right Angle Male pin / VM=SMT Straight Male pin

Electrical Specification:

Voltage rating:50V AC, DC

Current rated:1.0A, AC, DC

Contact resistance:20m Max

Insulation resistance:100m min

Withstanding voltage:500V AC/minute

Applicable wire:AWG #32 to #28

Temperature range:-25 ~+85 degrees C

Material:

Pin:Brass Tin

Soldering lug:Brass Tin

Housing:LCP (UL94V-0), Natural

Technical Documents

Please contact us for more information.
