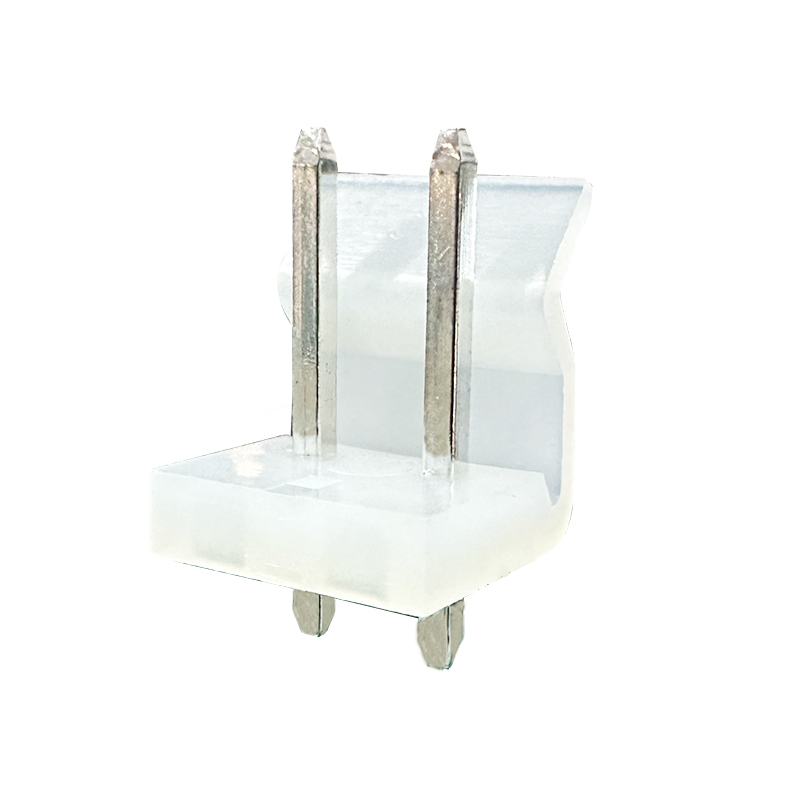

Cvilux CI55xxS0000 5.08mm Wire-to-Board Connector – Alternative to RHTAY5.08

Series P/N:RHTAY5.08

RHT provides a wide selection of Wire to Board Connectors and Wire to Wire Connectors, helping engineers develop reliable and efficient wire connection solutions.

With various pitches, wire sizes, pin configurations, mounting options, and specifications, our connectors can meet different design requirements and application challenges.

As a connector solutions partner, RHT’s engineering team works closely with design teams to understand technical requirements, discuss development needs, and provide suitable solutions from sample evaluation and prototype validation to project development and mass production.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Cvilux CI55xxS0000 5.08mm Wire-to-Board Connector – Alternative to RHTAY5.08

Features

-Locking Mechanism: Many wire-to-board connectors include locking mechanisms to ensure a secure connection and prevent accidental disconnections due to vibration or movement.

-Housing Material: The housing material of the connector affects its durability and suitability for different environmental conditions. Common materials include plastic (like nylon or PBT) for standard applications and sometimes metal for more robust requirements.

-Number of Pins: Connectors can vary in the number of pins they support, typically ranging from 2 pins up to many more, depending on the application's needs.

-Current Rating: The connectors are rated for a specific current carrying capacity, which depends on factors like the wire gauge and the connector's design. This is an important consideration to ensure the connector can handle the electrical load without overheating.

Applications

1.Telecommunications

2.Medical Devices

3.Renewable Energy

4.Security Systems

Specifications

Rated Voltage: 250V AC.DC

Rated Current: 5A

Contact Resistance: 0.02 Ohm max

Insulation Resistance: 1000M Ohm min

Withstand voltage: 1500V AC/MIN

Temperature range for usage : -25ºC~+85ºC
