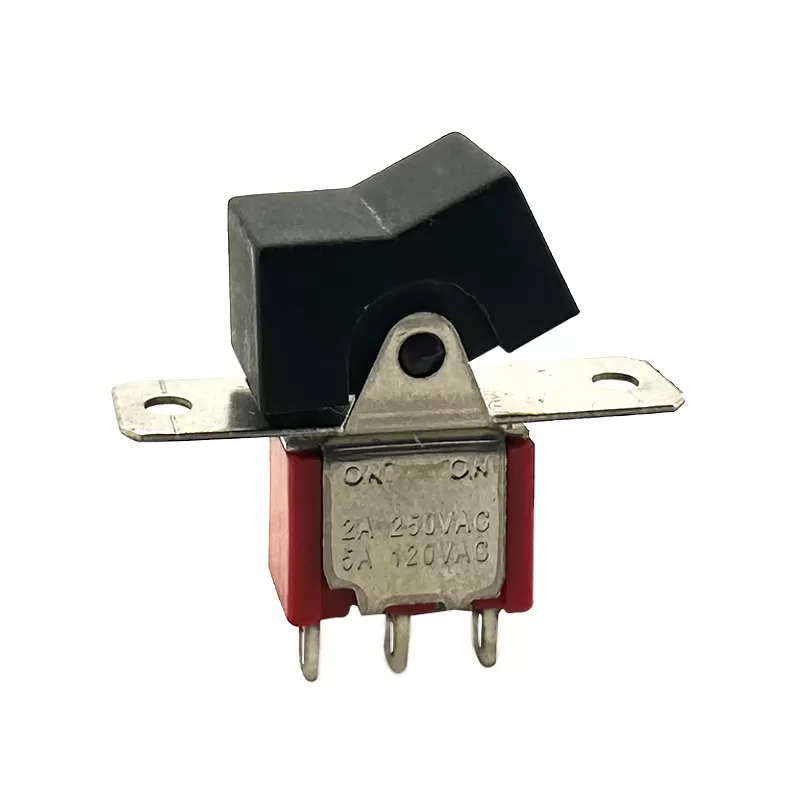

    Miniature Toggle switch-Rocker:RHTGYLS-102-A1/RHTGYLS-112-A1/RHTGYLS-103-A1/RHTGYLS-113-A1/RHTGYLS-123-A1/RHTGYLS-202-A1/RHTGYLS-212-A1/RHTGYLS-203-A1/RHTGYLS-213-A1/RHTGYLS-223-A1

    Miniature Toggle switch-Rocker:RHTGYLS-102-A1/RHTGYLS-112-A1/RHTGYLS-103-A1/RHTGYLS-113-A1/RHTGYLS-123-A1/RHTGYLS-202-A1/RHTGYLS-212-A1/RHTGYLS-203-A1/RHTGYLS-213-A1/RHTGYLS-223-A1

    Series P/N: RHTGYLS-102-A1/RHTGYLS-112-A1/RHTGYLS-103-A1/RHTGYLS-113-A1/RHTGYLS-123-A1/RHTGYLS-202-A1/RHTGYLS-212-A1/RHTGYLS-203-A1/RHTGYLS-213-A1/RHTGYLS-223-A1

    RHT provides a wide selection of Toggle Switches, offering reliable switching and manual control for industrial equipment, electrical panels, household appliances, automotive applications, and various electronic devices.

    With various lever styles, switching positions, contact configurations, terminal types, and mounting options, our products meet different switching requirements and equipment integration needs.

    RHT works closely with engineering teams to provide suitable Toggle Switch solutions, from sample evaluation and specification confirmation to product integration and technical support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Space Efficient: These switches are great for applications where space constraints are crucial, such as in portable devices or small appliances.

    -Tactile Feedback: Rocker switches typically provide audible and tactile feedback to confirm the switch’s activation, ensuring the user knows when the switch has been toggled.

    -Low Power Consumption: The switches are designed for circuits that require minimal power, making them ideal for battery-operated devices and low-power electronic applications.

    -Rugged Construction: The switches are often made with robust materials like brass, stainless steel, and high-quality plastics, ensuring resistance to wear, tear, and environmental factors.


    Applications

    1.Automotive and Motorcycle Applications

    2.Industrial and Machinery Controls

    3.Audio and Music Equipment

    4.Testing and Measurement Equipment


    Specifications

    RHTGYLS-102-A1      ON-ON

    RHTGYLS-112-A1     ON-(ON)

    RHTGYLS-103-A1     ON-OFF-ON

    RHTGYLS-113-A1     ON-OFF-(ON)

    RHTGYLS-123-A1     (ON)-OFF-(ON)

    RHTGYLS-201-A1      ON-OFF

    RHTGYLS-211-A1      (ON)-OFF

    RHTGYLS-202-A1       ON-ON

    RHTGYLS-212-A1      ON-(ON)

    RHTGYLS-203-A1      ON-OFF-ON

    RHTGYLS-213-A1      ON-OFF-(ON)

    RHTGYLS-223-A1     (ON)-OFF-(ON)

    Miniature Toggle switch-Rocker Type

    Rating: 5A 125VAC; 2A 250VAC

    Contact Resistance: 20MΩ max

    Insulation Resistance:500V DC 1000MΩ Min

    Dielectric Strength:1500V AC 1 Minute

    Operating Temperature:-55ºC +85ºC

    Electrical Life :20,000 cycles


    Technical Documents

    Please contact us for more information.
