RHT provides a wide selection of Tactile Switches, offering reliable momentary switching and tactile feedback for consumer electronics, industrial controls, communication devices, and various electronic applications.
With various actuator styles, operating forces, button heights, contact configurations, and mounting options, our products meet different switching requirements and PCB design needs.
RHT works closely with engineering teams to provide suitable Tactile Switch solutions, from sample evaluation and specification confirmation to product integration and technical support.
Features
-Physical Feedback: They offer a noticeable tactile bump or resistance when the switch is actuated, giving users a clear indication that the switch has been engaged. This feedback is typically in the form of a "click" or a noticeable change in force.
-Actuation Force: Tactile switches usually require a specific amount of force to actuate, which is often higher than that of membrane switches but lower than that of some other switch types like mechanical switches. The required actuation force can vary based on the design and intended use of the switch.
-Travel Distance: These switches generally have a defined travel distance, meaning the distance the switch moves from the resting position to the actuation point. This can impact how users experience the switch in terms of responsiveness and comfort.
-Durability: Tactile switches are designed to withstand a large number of actuations, making them suitable for frequent use. They often have a long lifespan, which can range from thousands to millions of actuations depending on the design and quality.
Applications
1. Consumer Electronics
2. Automotive
3. Industrial Equipment
4. Medical Devices
Specifications

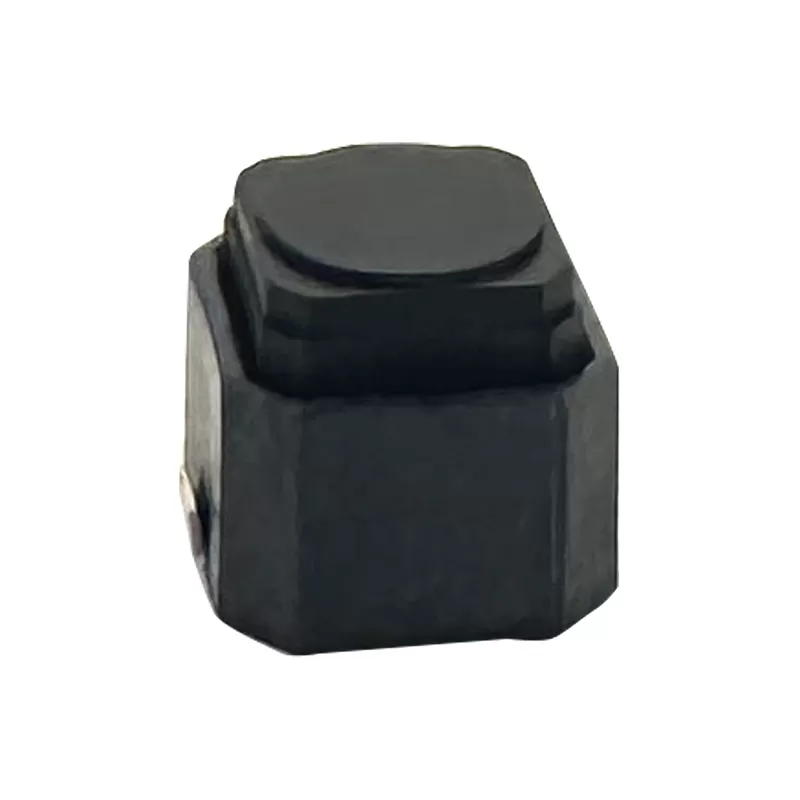

Tactile Switch
ELECTRICAL
1.Rating: 20mA 12V
2.Contact Resistance : 100mΩ Max
3.Insulation Resistance: 100MΩ Min
4.Dielectric Strength : AC250V(50/60Hz for 1minute)
5.Electrically Life: 100 000cycles
6.Environment temperature:-20ºC~+70ºC
7.Operating Force: 180/250(±30gf)
8.Seal temperature:260ºC~ 280ºC
Technical Documents
Please contact us for more information.
