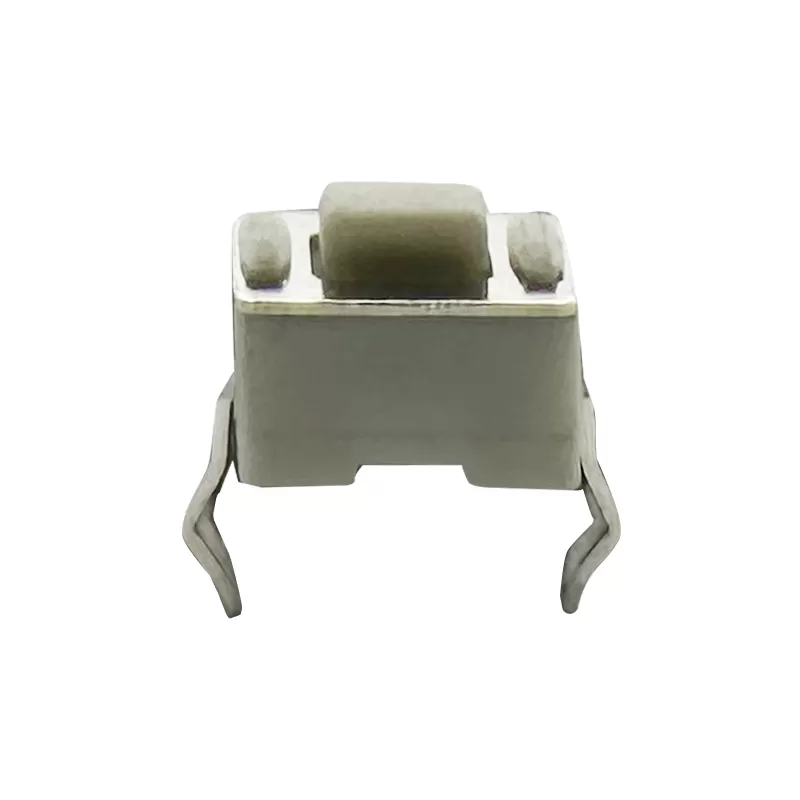

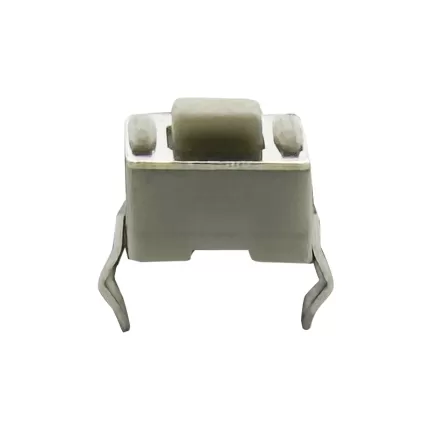

    Tactile Switch :RHTGYS3601

    Tactile Switch :RHTGYS3601

    Series P/N: RHTGYS3601

    RHT provides a wide selection of Tactile Switches, offering reliable momentary switching and tactile feedback for consumer electronics, industrial controls, communication devices, and various electronic applications.

    With various actuator styles, operating forces, button heights, contact configurations, and mounting options, our products meet different switching requirements and PCB design needs.

    RHT works closely with engineering teams to provide suitable Tactile Switch solutions, from sample evaluation and specification confirmation to product integration and technical support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Intuitive Use: The bump provides a clear response to the user, ensuring that the action was successfully registered without requiring visual confirmation.

    -Space-Efficient: Their small size allows them to be used in slim or portable designs where minimizing space is crucial.

    -Soft or Firm: Some tactile switches require a light press, while others have a firmer feel for more deliberate activation, making them suitable for various applications and preferences.

    -High Reliability: Their durable construction ensures they are highly reliable for long-term operation, even under frequent use.


    Applications

    1. Wearable Devices

    2. Automotive Applications

    3. Medical Devices

    4. Security and Alarm Systems


    Specifications

    Tactile Switch

    ELECTRICAL

    1.Rating: 50mA 12VDC

    2.Contact Resistance : 50mΩ max(initial)

    3.Insulation Resistance: 100MΩ(minDC 250V)

    4.Dielectric Strength : AC250V(50/60Hz for 1minute)

    5.Electrically Life: 100000cycles

    6.Environment temperature:-30ºC~+120ºC

    7.Operating Force: 180/250(±30gf)

    8.Seal temperature:260ºC~ 280ºC


    Technical Documents

    Please contact us for more information.
