RHT provides a wide selection of Tactile Switches, offering reliable momentary switching and tactile feedback for consumer electronics, industrial controls, communication devices, and various electronic applications.
With various actuator styles, operating forces, button heights, contact configurations, and mounting options, our products meet different switching requirements and PCB design needs.
RHT works closely with engineering teams to provide suitable Tactile Switch solutions, from sample evaluation and specification confirmation to product integration and technical support.
Features
-Dimensions:

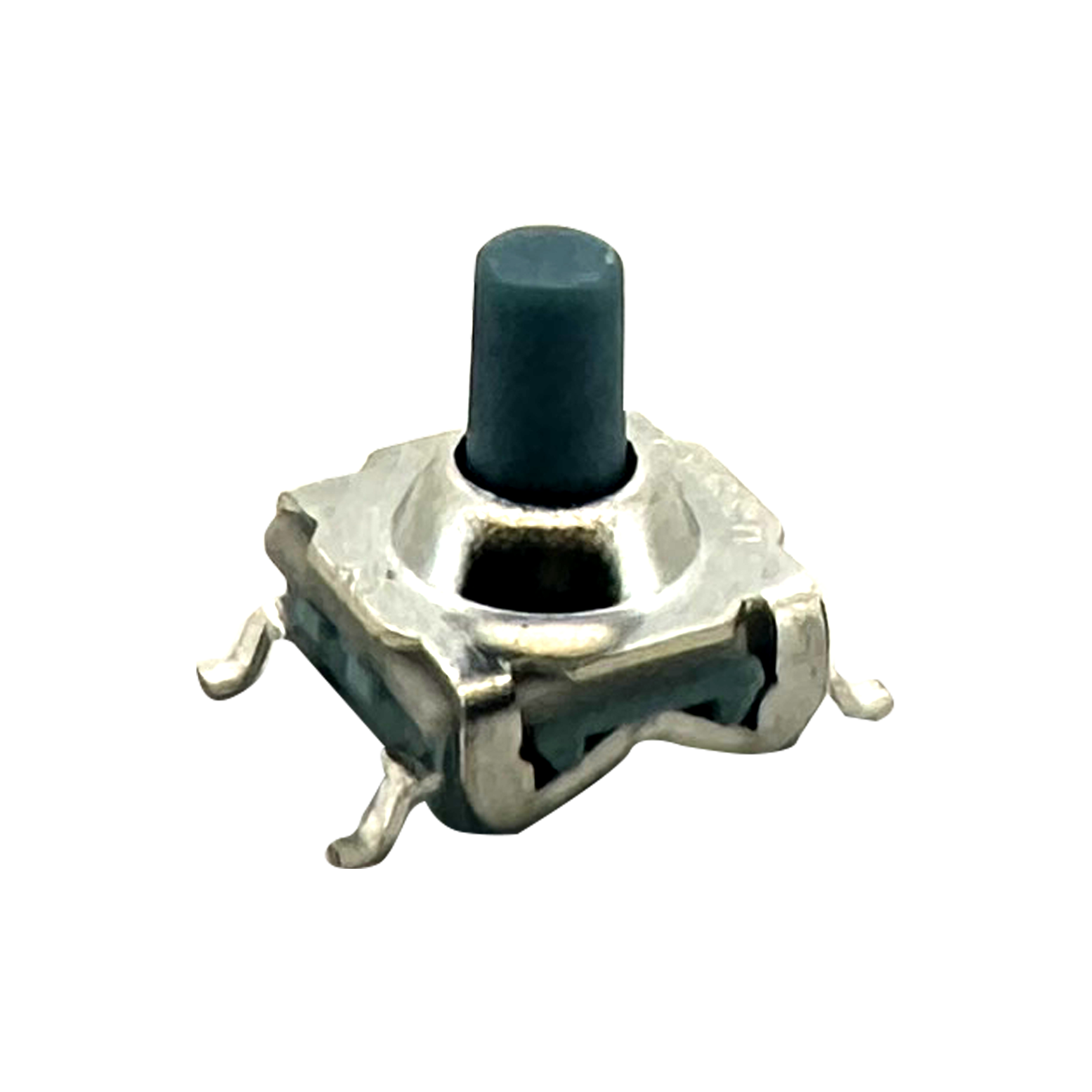

Compact size: 7x7 mm footprint, suitable for applications where space is limited and surface mounting is preferred.
-Waterproof Design:
Sealed construction to prevent ingress of water, dust, and other contaminants.
Often rated with an IP (Ingress Protection) rating, such as IP67, indicating resistance to water immersion up to a certain depth and duration.
-Actuation Type:
Provides tactile feedback: Gives a distinct click or bump sensation upon actuation, ensuring confirmation of input.
Momentary action: Returns to its original position when released, suitable for applications requiring temporary contact.
-Contact Configuration:Available in various configurations such as single-pole single-throw (SPST) or single-pole double-throw (SPDT), depending on application requirements.
Applications
1.Industrial Equipment
2.Medical Devices
3.Telecommunications
4.Outdoor and Harsh Environments
Specifications
Electrical:
1.Rating: 50mA 12V DC
2.Travel:0.35±0.1mm
3.Contact Resistance :100mΩ Max
4.Electrically Life:100000 cycles Min.
5.Operating Force:180±50gf
6.Environment temperature:-30ºC~+80ºC
Materials:
1.Insert:H62Y &=0.30,Silver
2.Base:PPA,Blue
3.Shrapnel:Stainless steel
4.Waterproof membrane:Silica gel
5.Cap:PPA,Blue
6.Tensile plate:H65M &=0.30,Copper tin
Technical Documents
Please contact us for more information.
