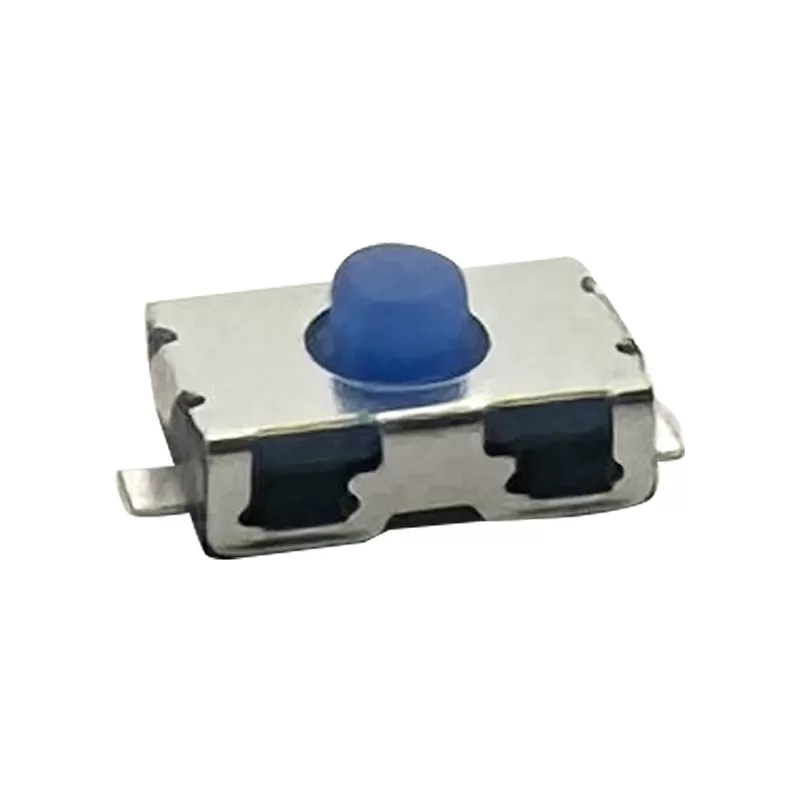

    3.8x6.0 Normal Closed Type Tact Switchs :RHTGYS4601

    3.8x6.0 Normal Closed Type Tact Switchs :RHTGYS4601

    Series P/N:RHTGYS4601

    RHT provides a wide selection of Tactile Switches, offering reliable momentary switching and tactile feedback for consumer electronics, industrial controls, communication devices, and various electronic applications.

    With various actuator styles, operating forces, button heights, contact configurations, and mounting options, our products meet different switching requirements and PCB design needs.

    RHT works closely with engineering teams to provide suitable Tactile Switch solutions, from sample evaluation and specification confirmation to product integration and technical support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Form Factor: The shape allows for surface-mount assembly (SMD), making it suitable for automated manufacturing processes.

    -This is often used in fail-safe or emergency situations where the device needs to be in a "closed" state by default, and pressing the button causes the system to react or change states.

    -Tactile Feedback: The switch offers tactile feedback, providing a noticeable click or response when pressed, which is helpful in user interface designs to confirm an action or input.

    -Short Travel: The switch typically features a short travel distance of around 0.2mm to 0.3mm, allowing for quick and efficient activation.


    Applications

    1.Consumer Electronics

    2.Industrial Equipment

    3.Security Systems

    4.Automotive Applications


    Specifications

    Electrocal performance:

    Rating:50mA. 12V DC

    Insulation resistance:100MΩ min. 100V DC

    Dielectric strength:250V AC for 1 min.

    Contact resistance:100mΩ max.

    Operating Temperature Range:-30℃ to+85℃

    Durability:

    Lifetime:50000 Cycles

    Mechanical performance:

    Operating force: 250gf

    Travel:0.25±0.1mm


    Technical Documents

    Please contact us for more information.
