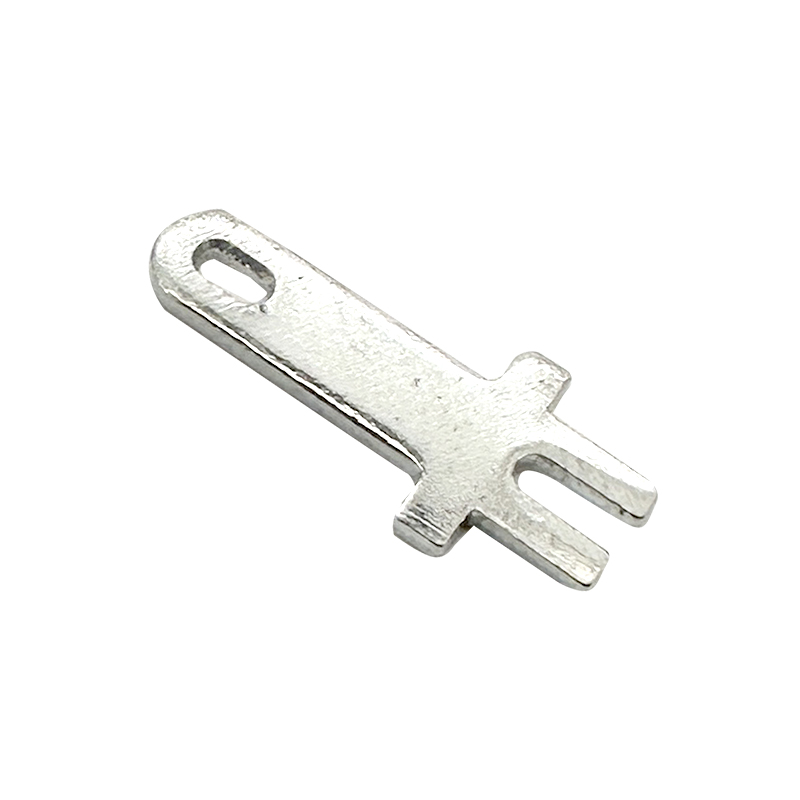

Quick Connects Terminal:RHTHY1131B-250

Series P/N:RHTHY1131B-250

RHT provides a wide selection of PCB Mount Solder Terminals, supporting reliable electrical connections for industrial control systems, electronic equipment, power supplies, and circuit board assemblies.

With various terminal configurations, mounting styles, pin layouts, soldering options, and material choices, our products meet different PCB connection, assembly, and installation requirements.

RHT works closely with engineering teams to provide suitable PCB Mount Solder Terminal solutions, from sample evaluation and design verification to product integration and technical support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Quick and Easy Connection: One of the standout features of quick-connect terminals is that they allow for tool-free installation. You can simply insert the wire and connect it, eliminating the need for additional tools such as screwdrivers or crimping tools.

-Push-and-Connect Mechanism: Many quick-connect terminals feature a push-and-click design, where the wire is inserted and securely locked into place with minimal effort.

-Spade Terminals: These have a flat, forked design that can be easily connected to a post or screw terminal.

-Ring Terminals: These terminals have a round ring shape that can be attached to screws or bolts for a secure electrical connection.

Applications

1.Automotive Applications

2.Home Appliances

3.Industrial and Manufacturing Equipment

4.Renewable Energy Systems

Specifications

Technical Documents

Please contact us for more information.
