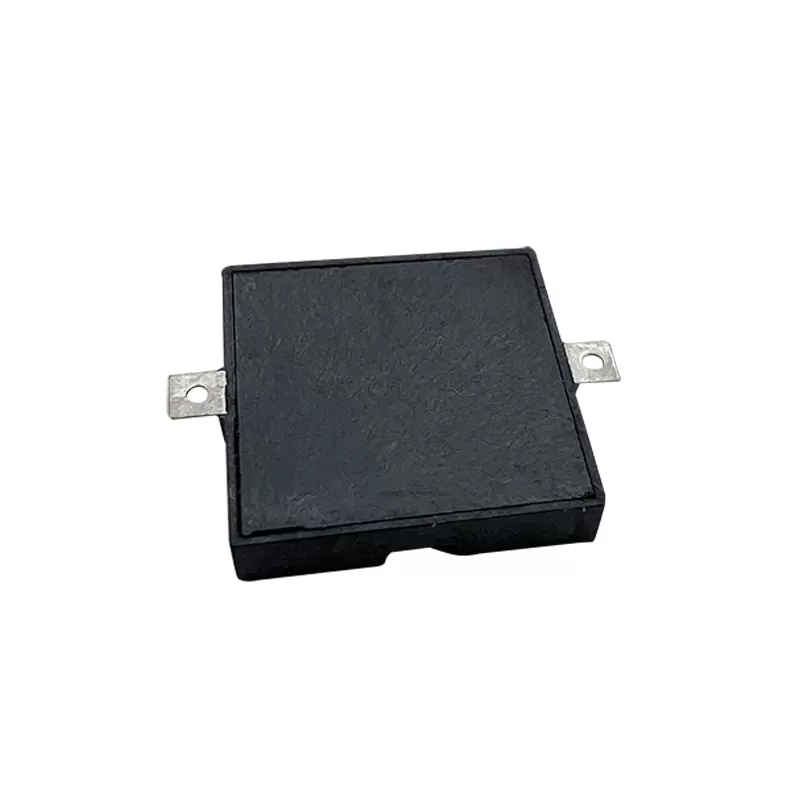

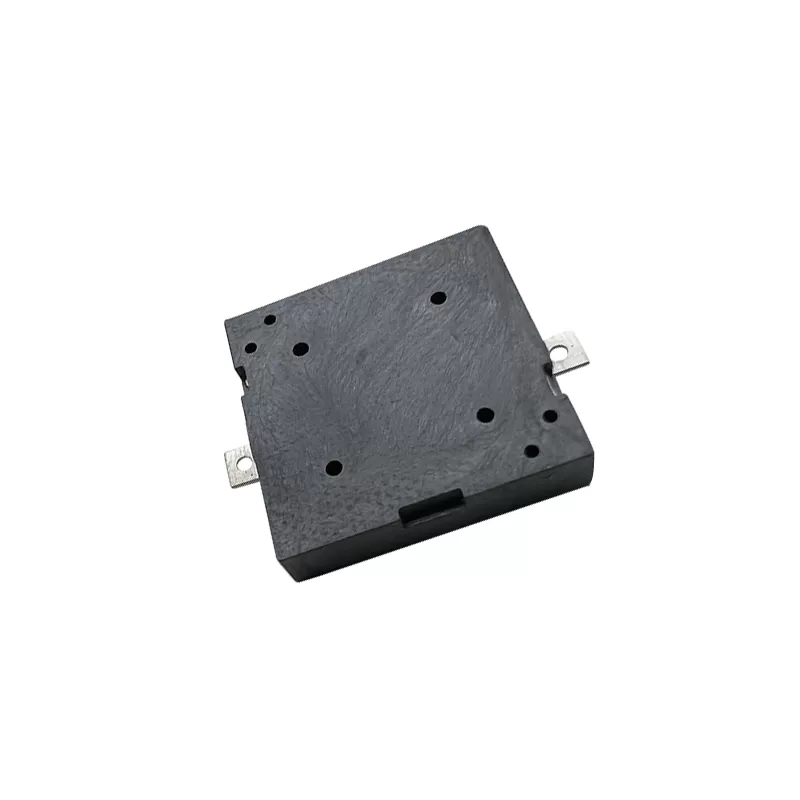

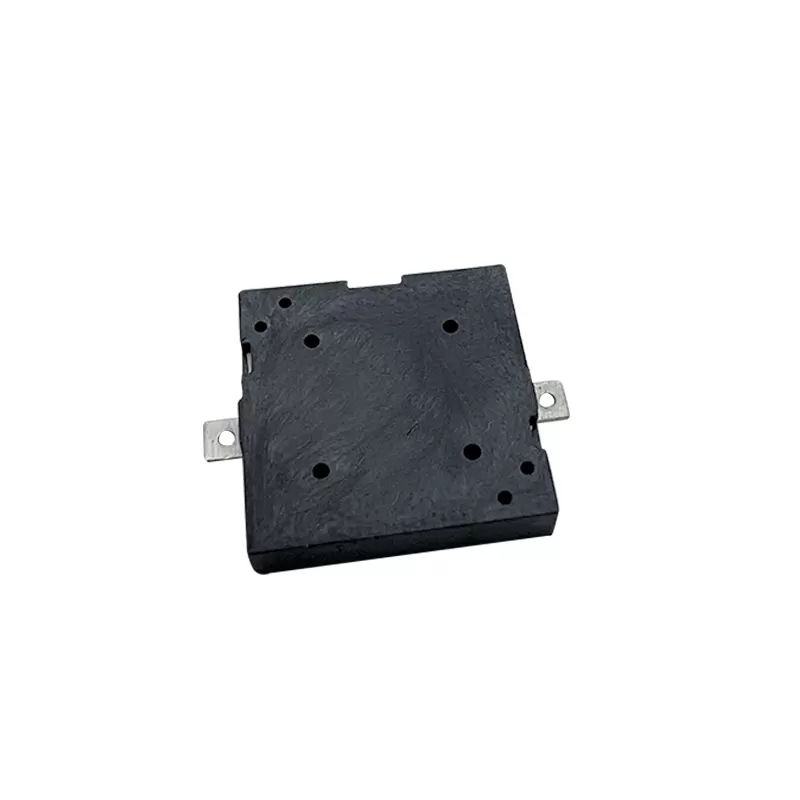

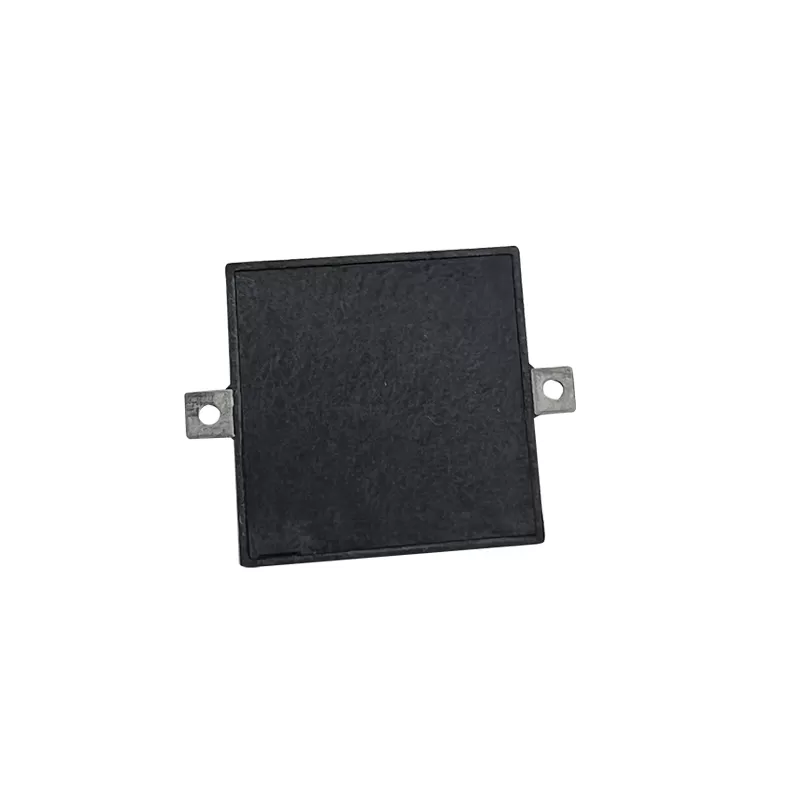

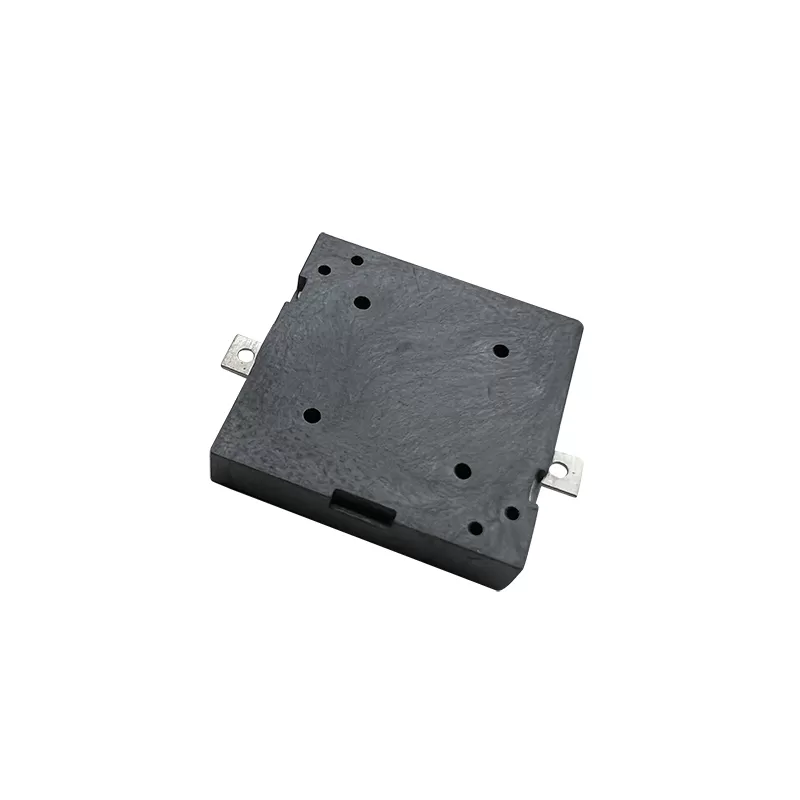

SMD Piezo Buzzer：RHTCYMT-13x2.5
SMD piezo buzzers is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SMD piezo buzzers . Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Compact SMD low-profile design, ideal for space-saving and high-density PCB layouts
-Piezoelectric sound generation with clear, stable output and low power consumption
-Reliable performance across wide temperature and voltage ranges
-SMT-compatible construction for automated assembly and high production efficiency
Applications
1.Consumer Electronics
2.Industrial Control
3.Automotive Electronics
4.Security & Alarm Systems
Specifications
Rated Voltage 5Vp-p Operating Voltage 1-25Vp-p Max.Rated Current 3mA Min.S.P.L.(@10cm) MIN. 75dB at Rated Voltage at 10cm Resonant Frequency 4.0±0.5KHz Capacitance at 100Hz 16000±30%pF Operating Temp -20~+70°C Weight 0.5g
Technical Documents
Please contact us for more information.
