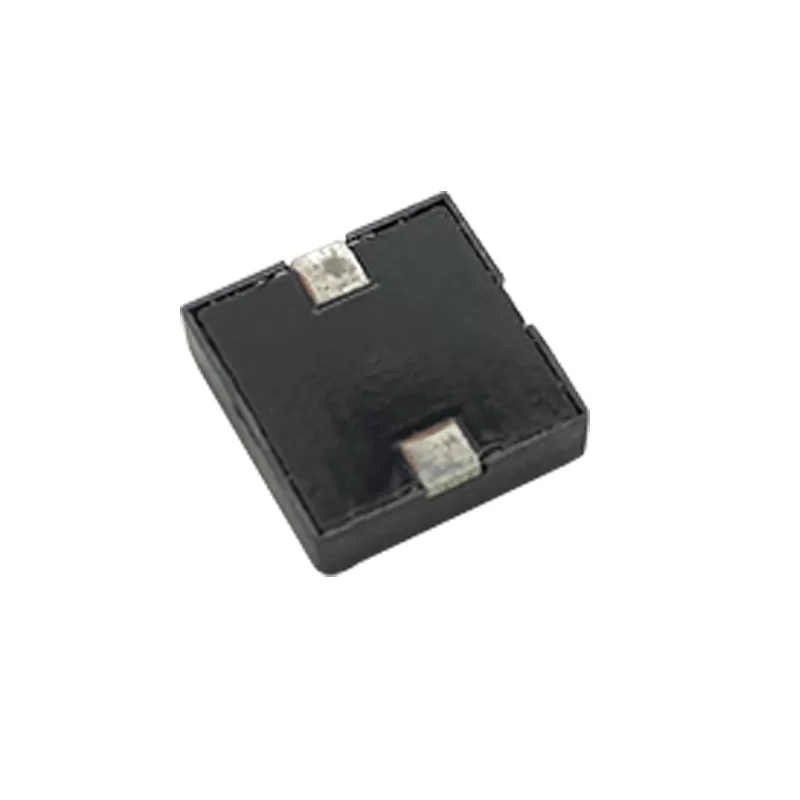

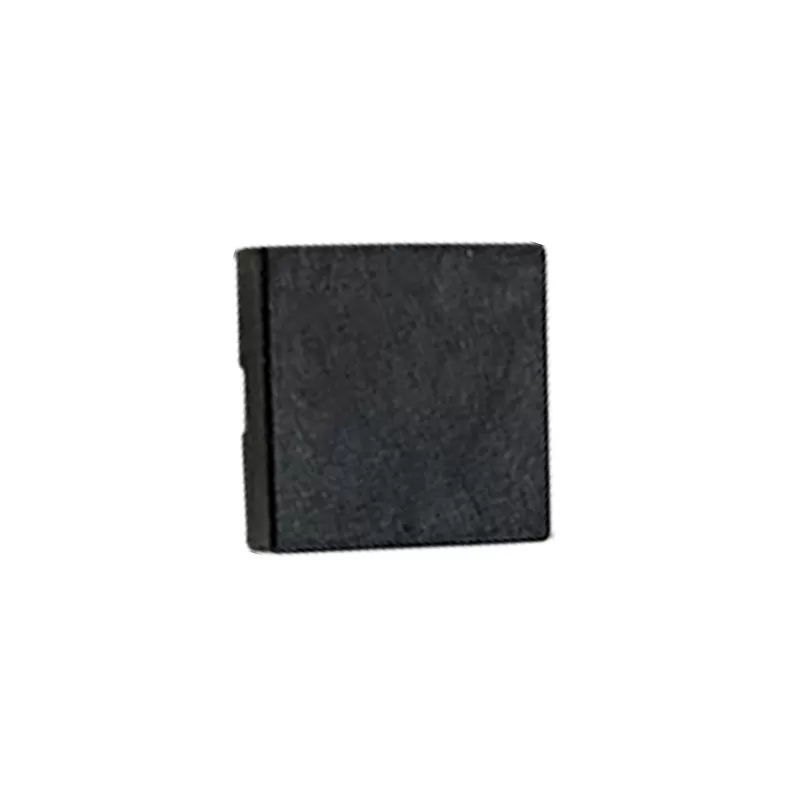

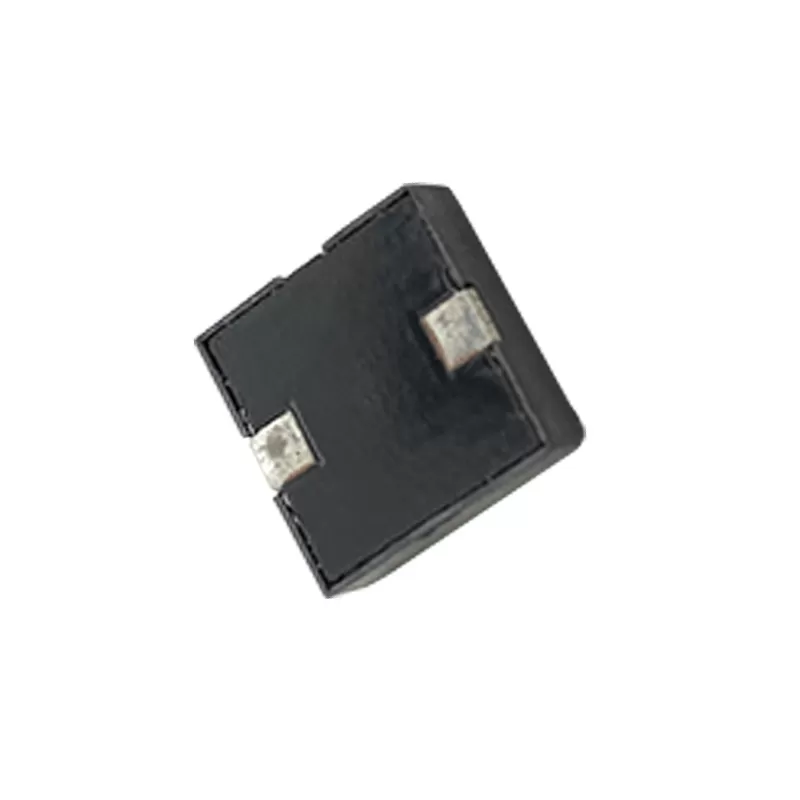

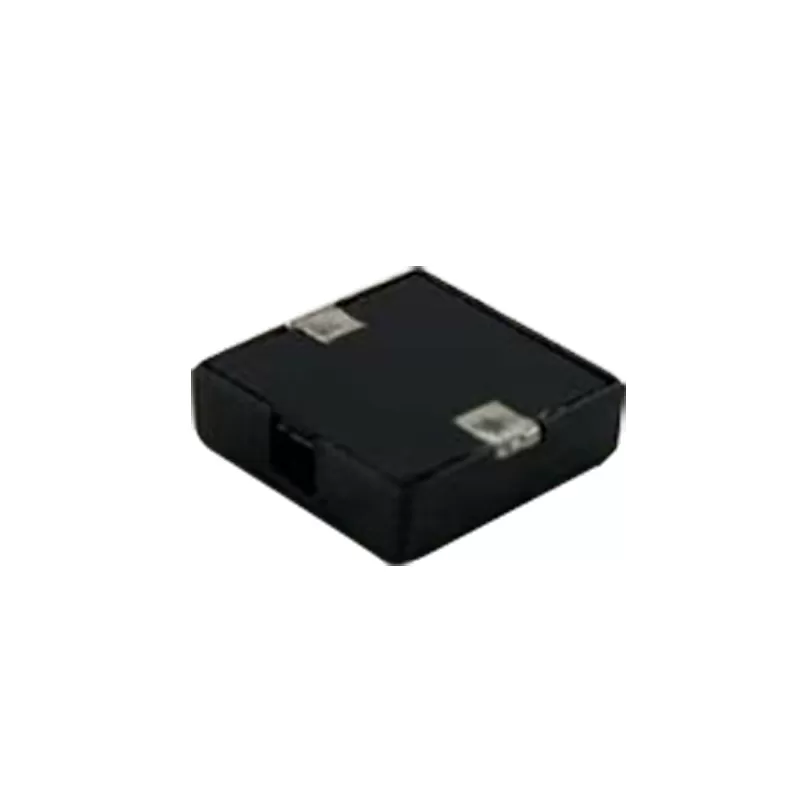

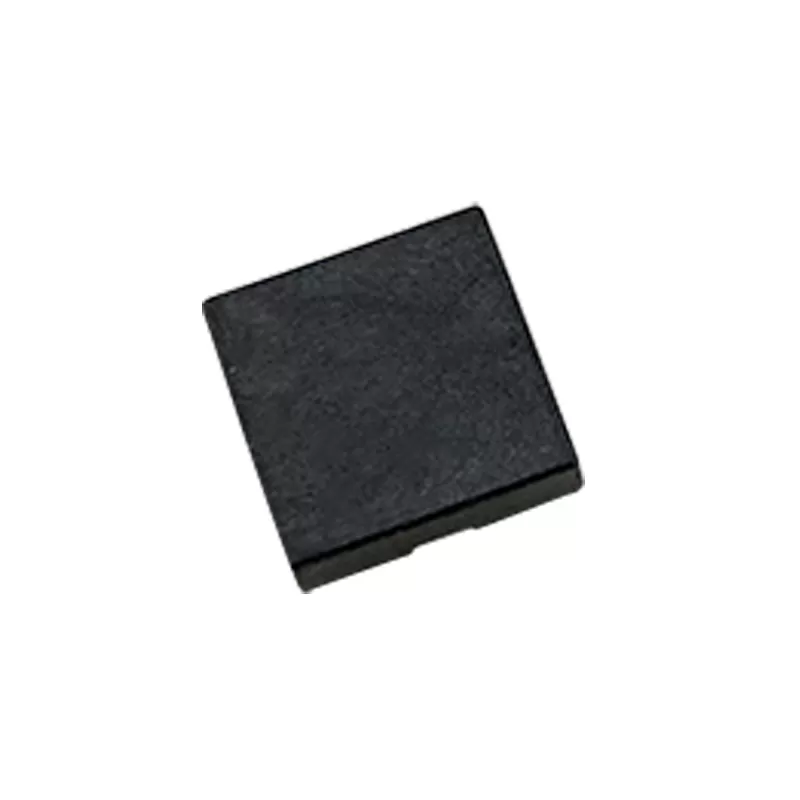

SMD Piezo Buzzer：RHTCYMT-10x03B
SMD piezo buzzers is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SMD piezo buzzers . Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Compact 10x3mm SMD low-profile package optimized for space-saving PCB layouts and high-density electronic designs
-High sound pressure level with stable, clear, and consistent acoustic output for reliable audible indication
-Low power consumption with efficient piezoelectric operation, suitable for battery-powered and portable devices
-High reliability construction with long operating life, supporting automated SMT assembly and reflow soldering
Applications
1.Consumer Electronics
2.Industrial Electronics
3.Security Systems
4.Automotive Electronics
Specifications
Size: 10*10*3.0mm
Rated Voltage 5Vp-p Operating Voltage 1-25Vp-p Max.Rated Current 3mA Min.S.P.L.(@10cm) MIN. 70dB at Rated Voltage at 10cm Resonant Frequency 5.2KHz Capacitance at 100Hz 10000±30%pF Operating Temp -20~+70°C Weight 0.3g
Technical Documents
Please contact us for more information.
