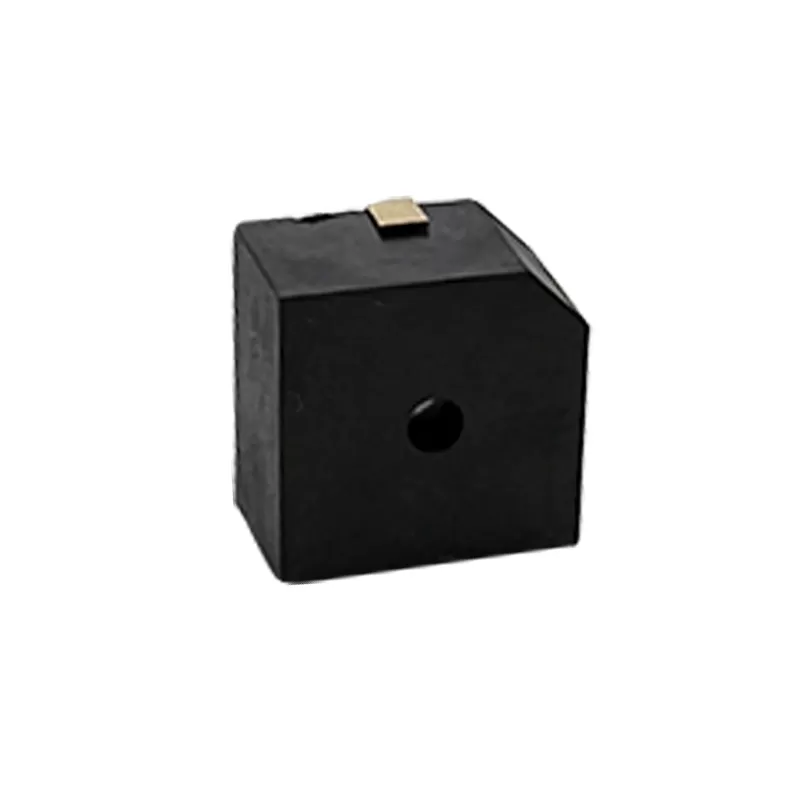

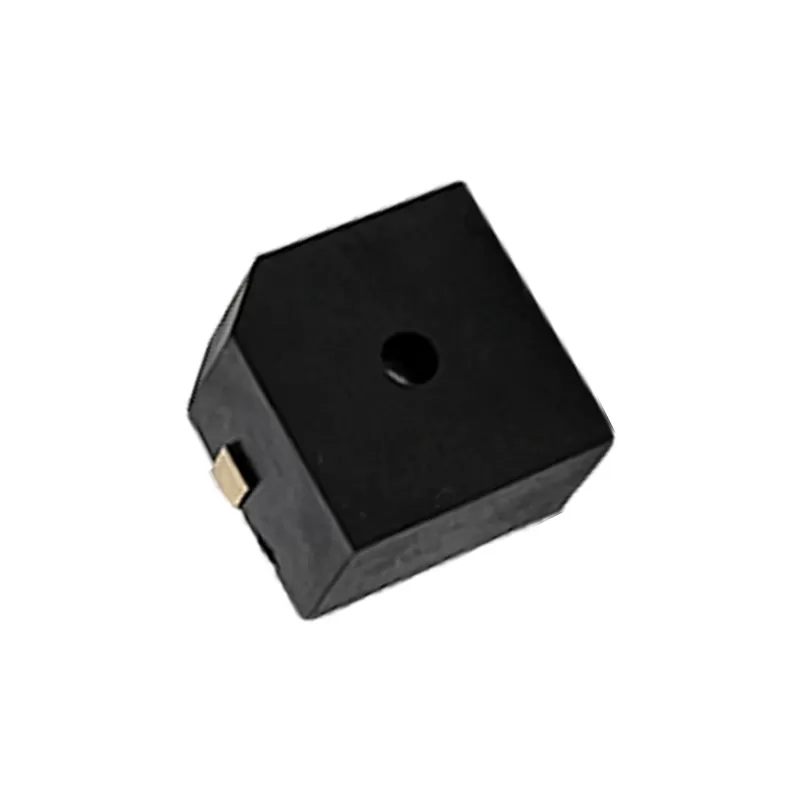

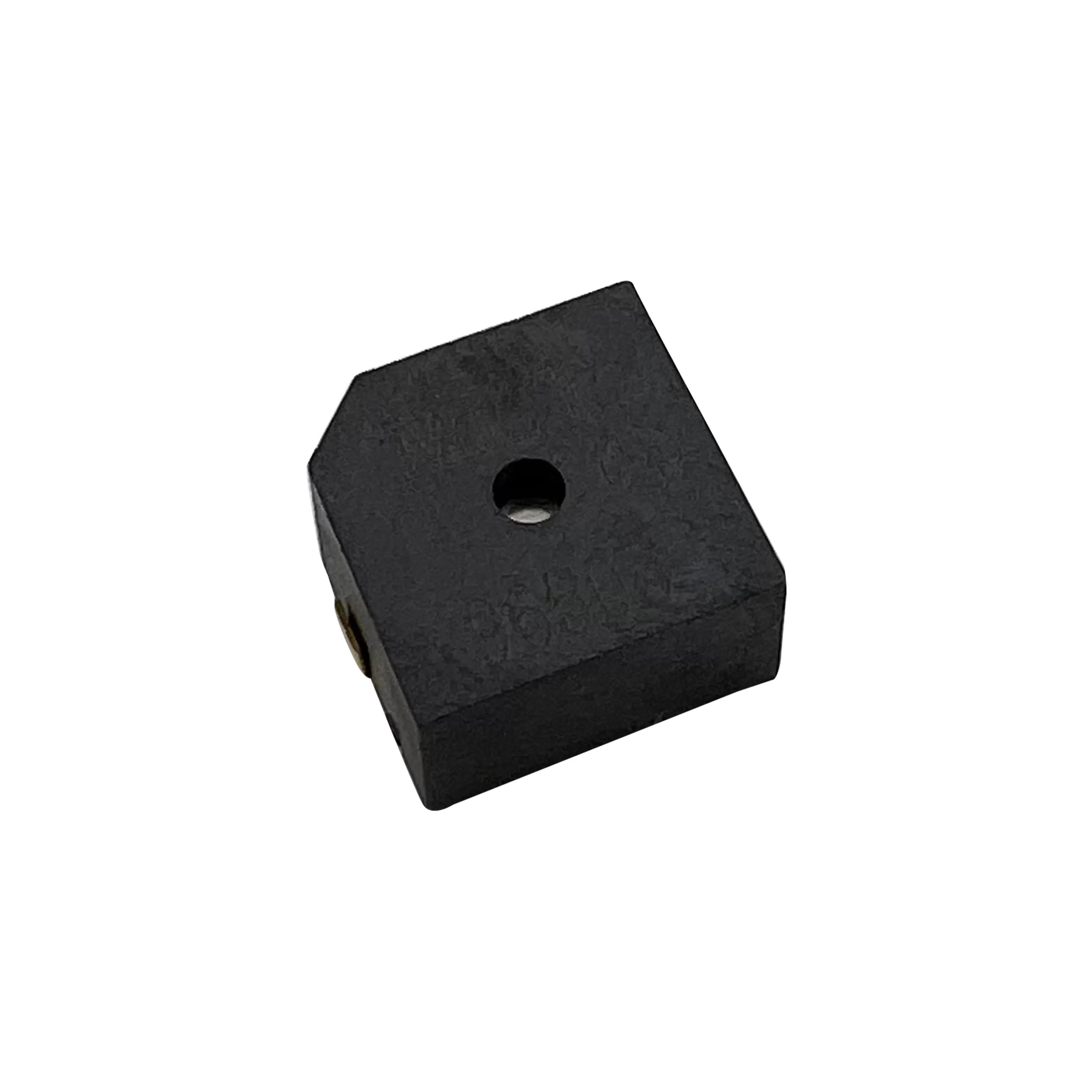

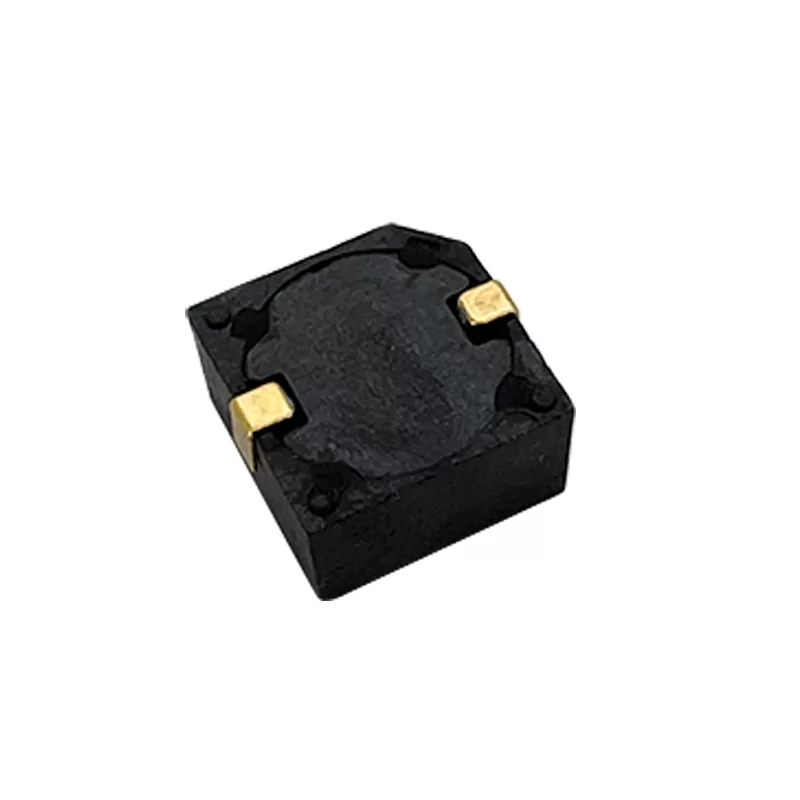

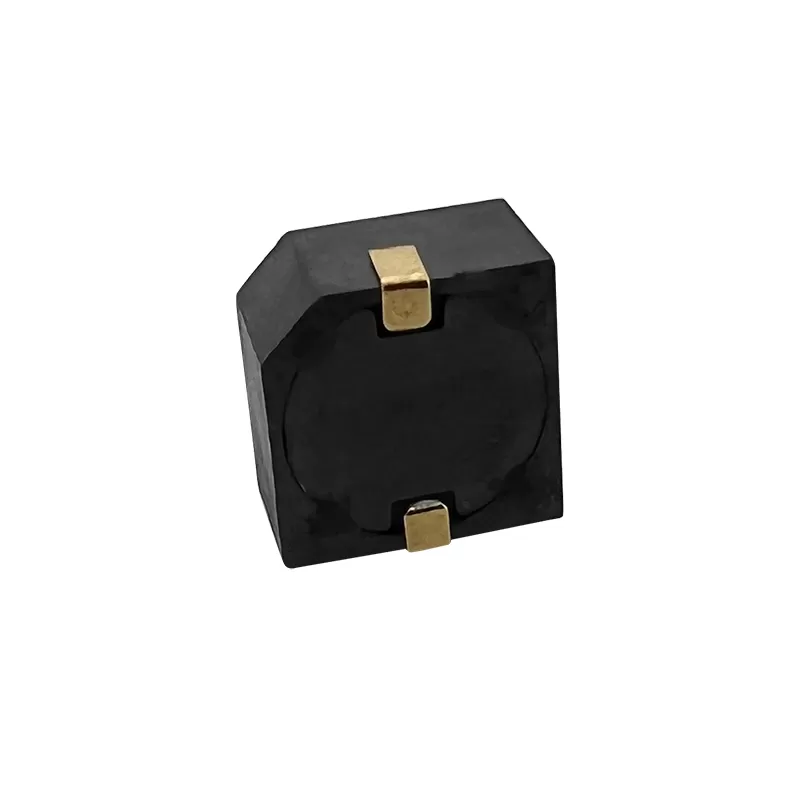

SMD Piezo Buzzer With Self Drive：RHTCYMT-15x08B

Features

-Compact SMD Design： Space-saving surface mount package, ideal for compact and lightweight electronic products.

-Self-Drive Circuit： Integrated driving circuit, no external oscillator needed, reducing overall design complexity.

-Stable Sound Output： Provides clear, consistent, and reliable audio signals, ensuring accurate alerts and notifications.

-Low Power Consumption： Designed for energy efficiency, suitable for battery-powered and portable devices.

Applications

1.Industrial Equipment

2.Security Systems

3.Home Appliances

4.Automotive Electronics

Specifications

Rated Voltage                  5VDC

Operating Voltage           3~16VDC

Rated Current                  10mA Max.

S.P.L.（@10cm）           80dB Min. at 10cm

Resonant Frequency     4.0 ±0.5KHz

Operating Temp              -30~+85°C

Weight                               2.3g

Technical Documents

Please contact us for more information.
