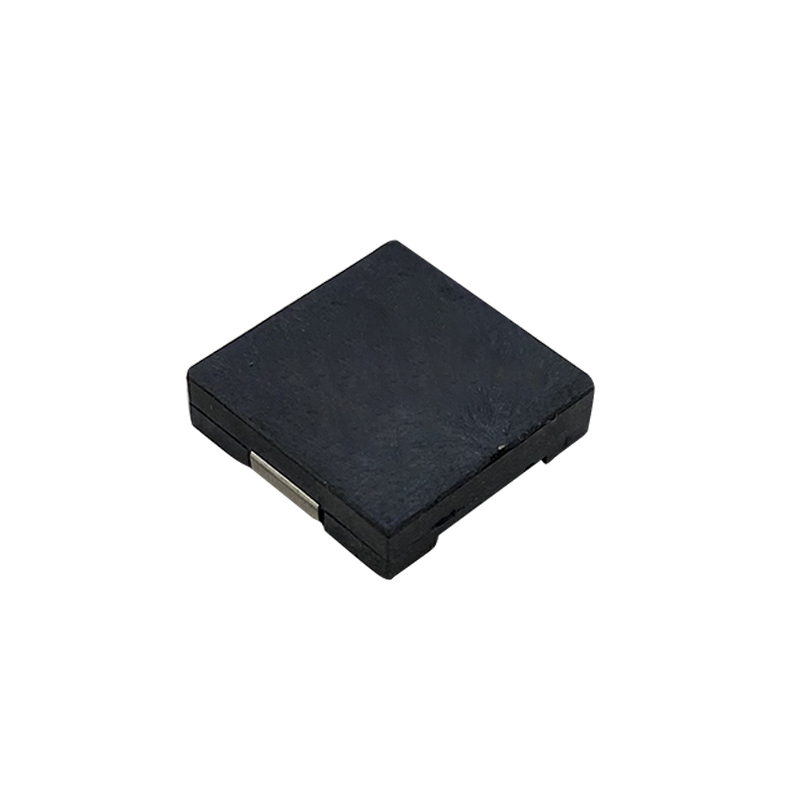

SMD piezo buzzer,Externally driven type:RHTCYMT-12x03
SMD piezo buzzers is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SMD piezo buzzers.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Low Profile SMD Package：Ultra-compact design allows easy integration into slim and space-limited electronic products.
-Stable Acoustic Output：Delivers consistent sound signals with excellent frequency response and reliable operation.
-Easy PCB Assembly：Surface mount structure supports efficient automated production and installation.
-Wide Operating Compatibility：Suitable for various electronic circuits requiring compact sound indication.
Applications
1.Office Equipment
2.Power Equipment
3.Instrumentation Equipment
4.Electronic Control Boards
Specifications
1 Rated Voltage 3 (Vp-p)
2 Resonance Frequency 4.0±0.5(KHz)
3 Max Input Voltage 25(Vp-p)
4 Capacitance at 120Hz 16000±30%(pF)
5 *Sound Output at 10cm ≥75(dB)
6 Operating Temperature (℃) -20～+70
7 Storage Temperature (℃) -30～+80
8 *Rated Current ≤3(mA)
9 Weight (g) 0.3
10 Housing Material LCP
Technical Documents
Please contact us for more information.
