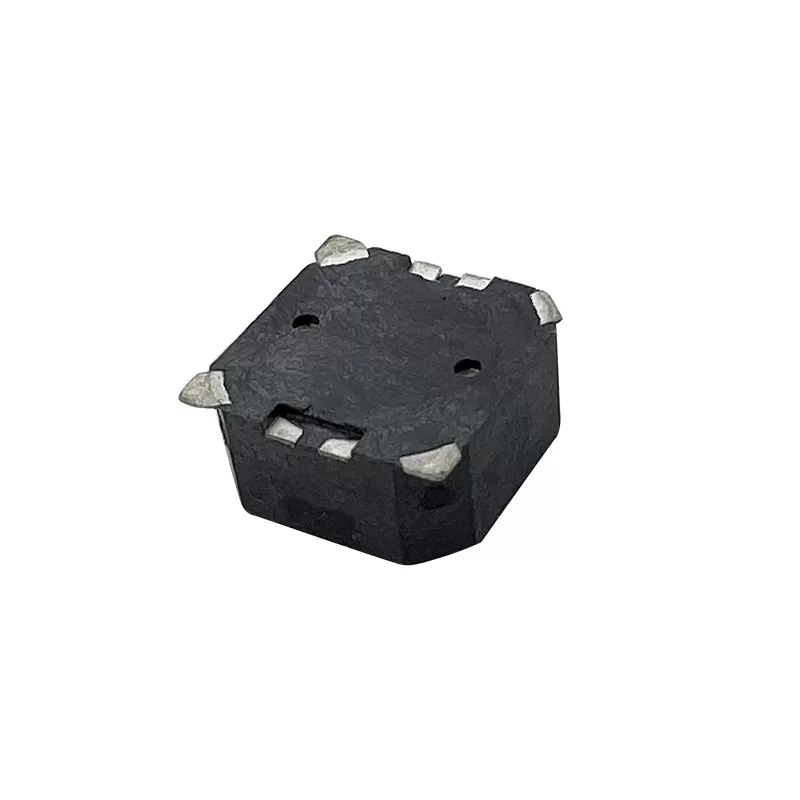

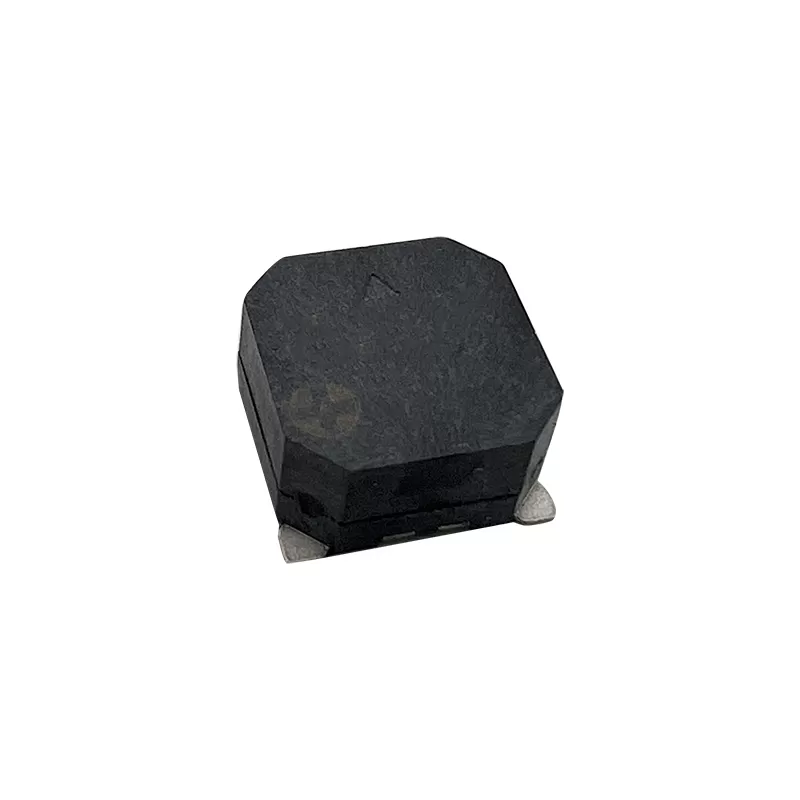

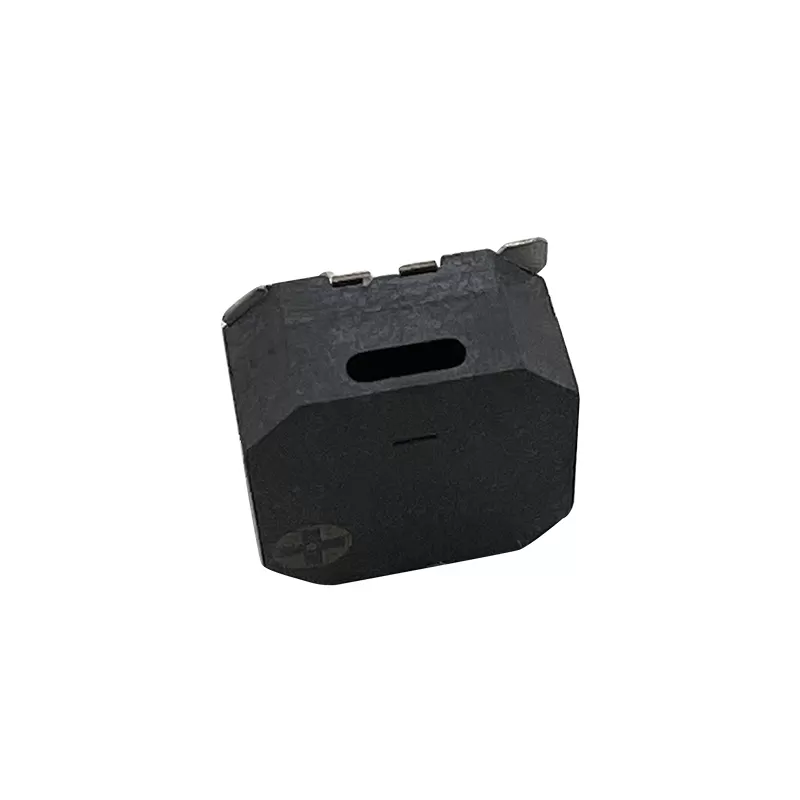

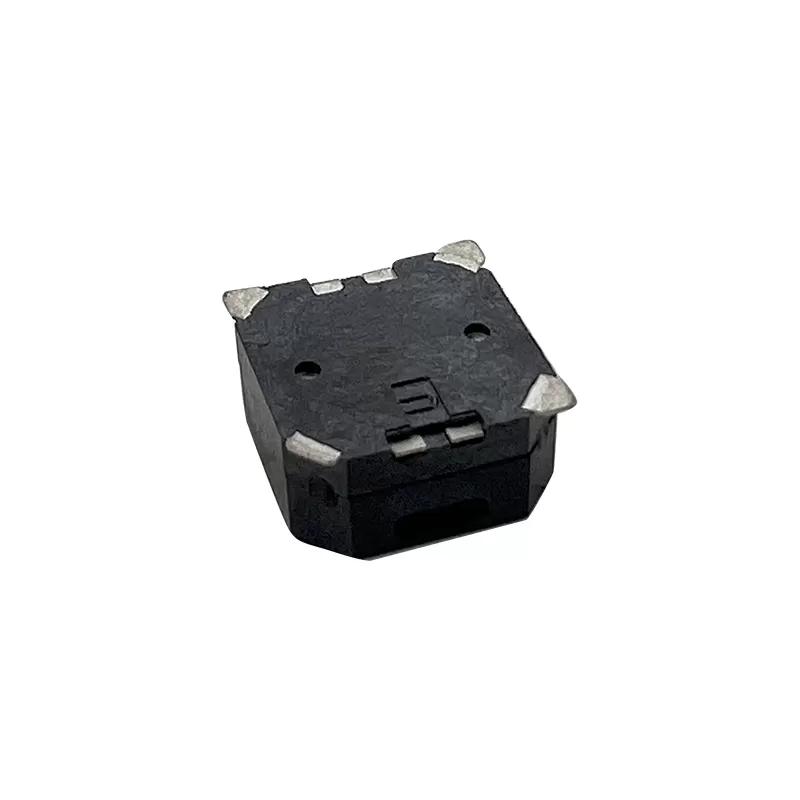

SMD Electro-magnetic Buzzer：RHTCYMT-7.5x2.5
SMD magnetic buzzers is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SMD magnetic buzzers . Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Compact Size: Miniature 7.5×2.5mm surface-mount design, ideal for space-constrained PCB layouts.
-High Sound Output: Provides clear and audible tones for alarms, notifications, and signaling.
-Low Power Consumption: Efficient operation suitable for battery-powered and low-energy devices.
-Reliable Performance: Stable and consistent sound generation over long-term use.
Applications
1.Industrial Control Systems
2.Alarm & Security Systems
3.Medical Devices
4.Automotive Electronics
Specifications
Rated Voltage 3.6Vo-p
Operating Voltage 2.5~4.5Vo-p Max.
Rated Current 90mA Min.S.P.L.(@10cm) MIN. 85dB at
Rated Voltage at 10cm
Coil Resistance(Ω) 15±3Ω
Resonant Frequency 2700Hz
Operating Temp -20~+70℃ Weight 0.4g
Technical Documents
Please contact us for more information.
