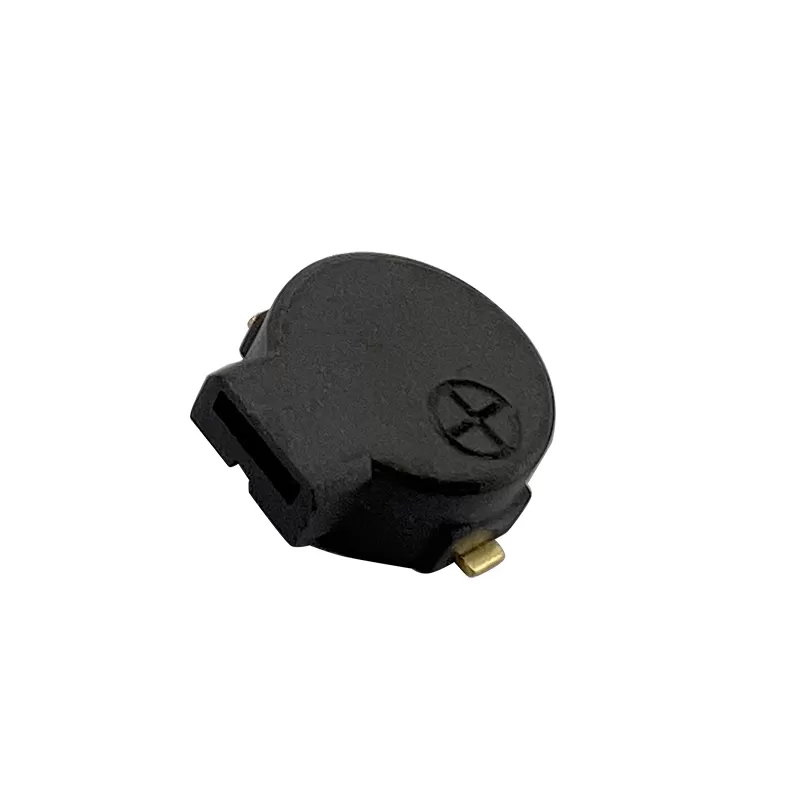

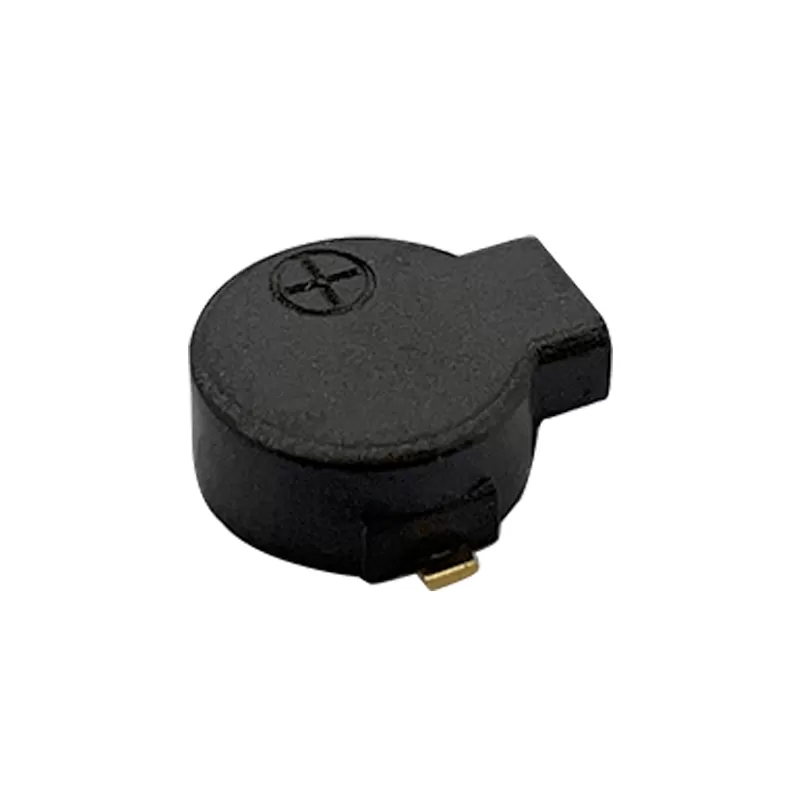

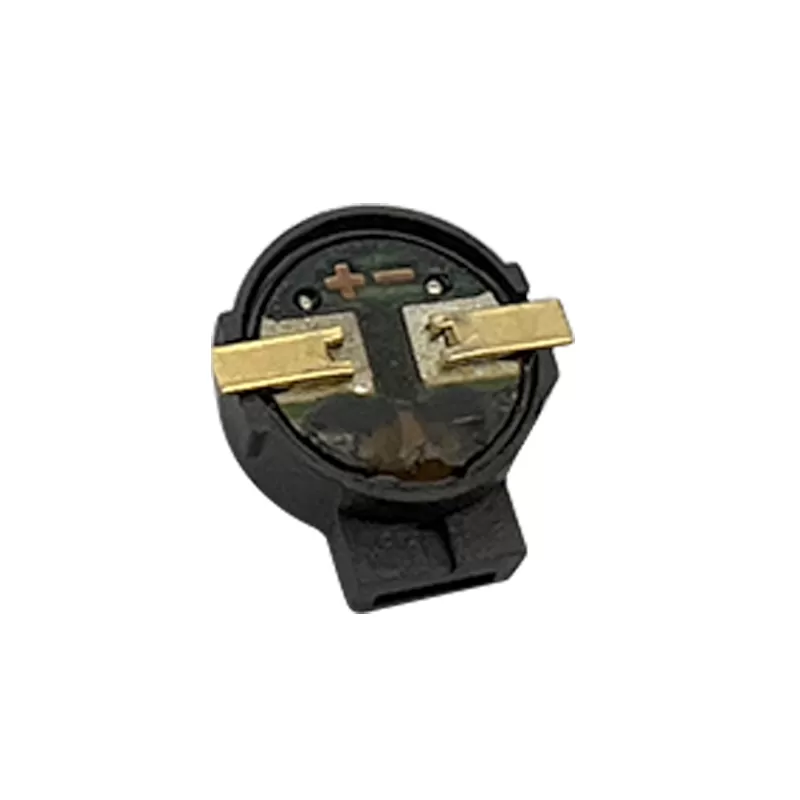

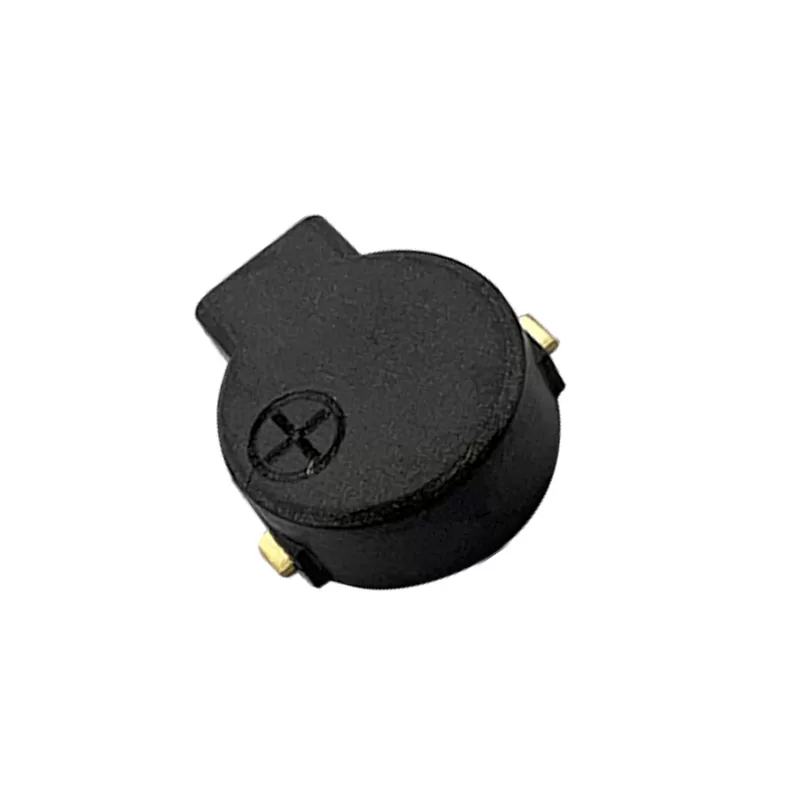

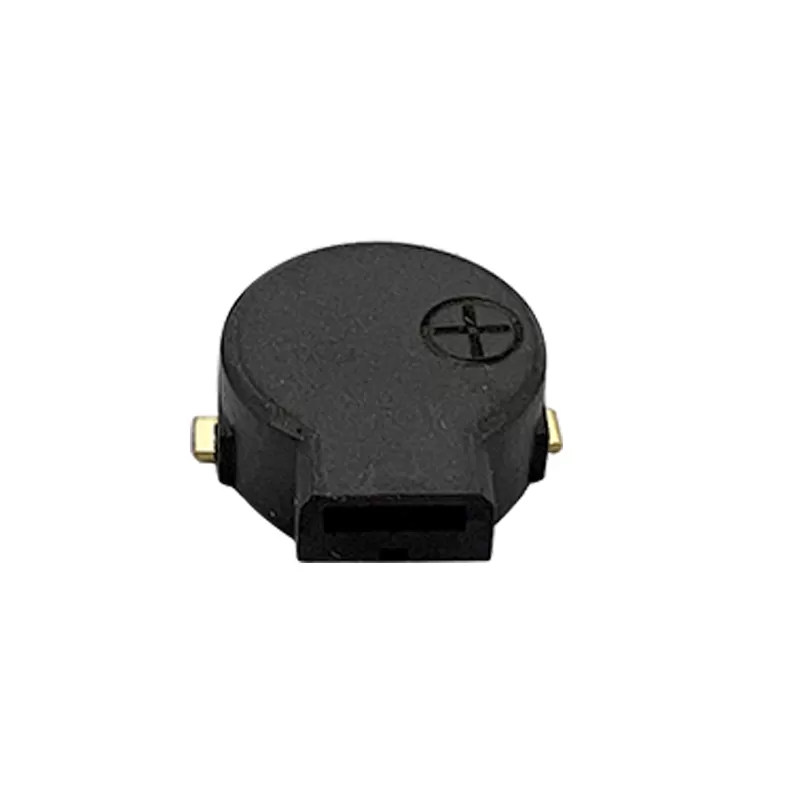

SMD Electro-magnetic Buzzer：RHTCYMT-09x04
SMD magnetic buzzers is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SMD magnetic buzzers . Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Reflow Soldering Compatible: Fully suitable for automated SMT assembly, ensuring reliable soldering during mass production.
-Wide Operating Voltage Range: Allows flexible circuit design and easy integration into multiple electronic systems.
-Slim and Lightweight Profile: Thin and light construction fits perfectly in space-restricted portable devices.
-Excellent Electromagnetic Stability: Minimizes interference and maintains consistent performance in noisy electronic environments.
Applications
1.Industrial Equipment
2.Medical Devices
3.Home Appliances
4.Security Systems
Specifications
Parameters:
Rated Voltage : 5V
Operating Voltage : 2～5V
Coil Resistance : 30±3Ω
Resonant Frequency : 2700Hz
Sound Output at 10cm : ≥90dB
Current Consumption : ≤80mA
Operating Temperature : -20℃～+70℃
Storage Temperature : -30℃～+80℃
Weight : 0.8g
Housing Material:PPS
RoHS: Yes
Technical Documents
Please contact us for more information.
