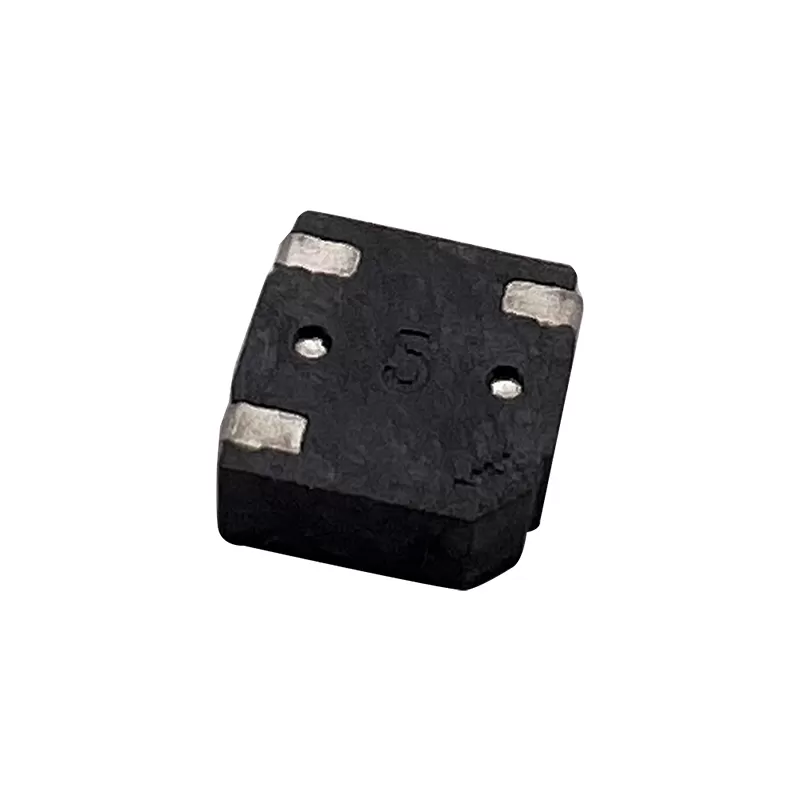

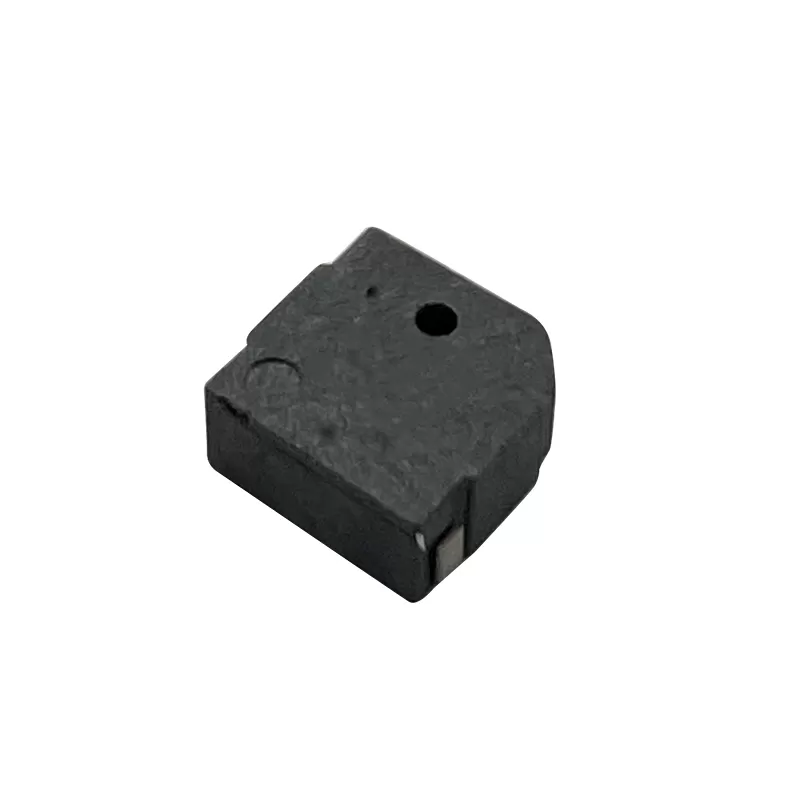

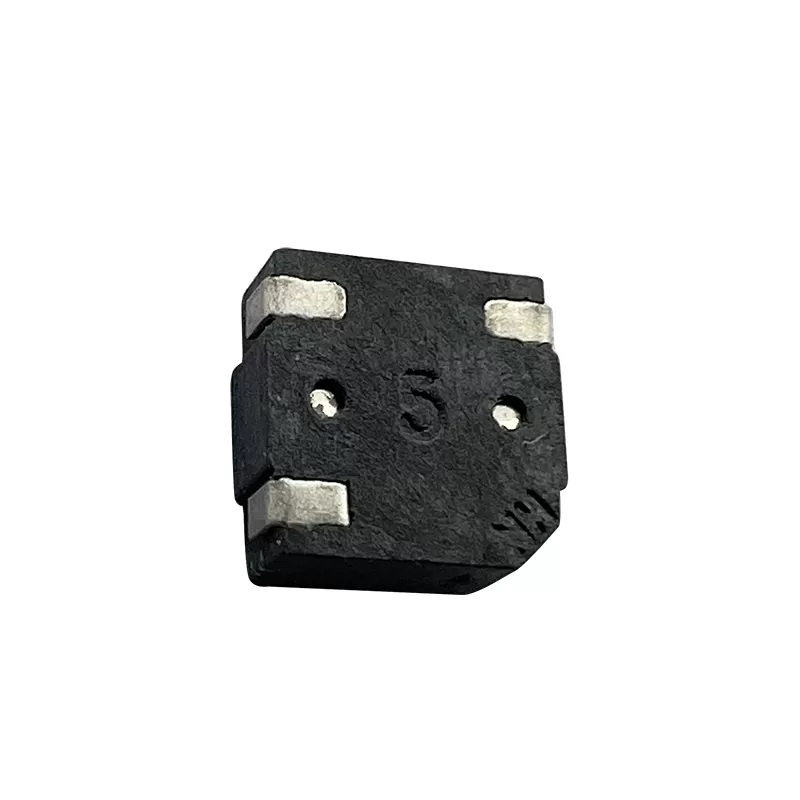

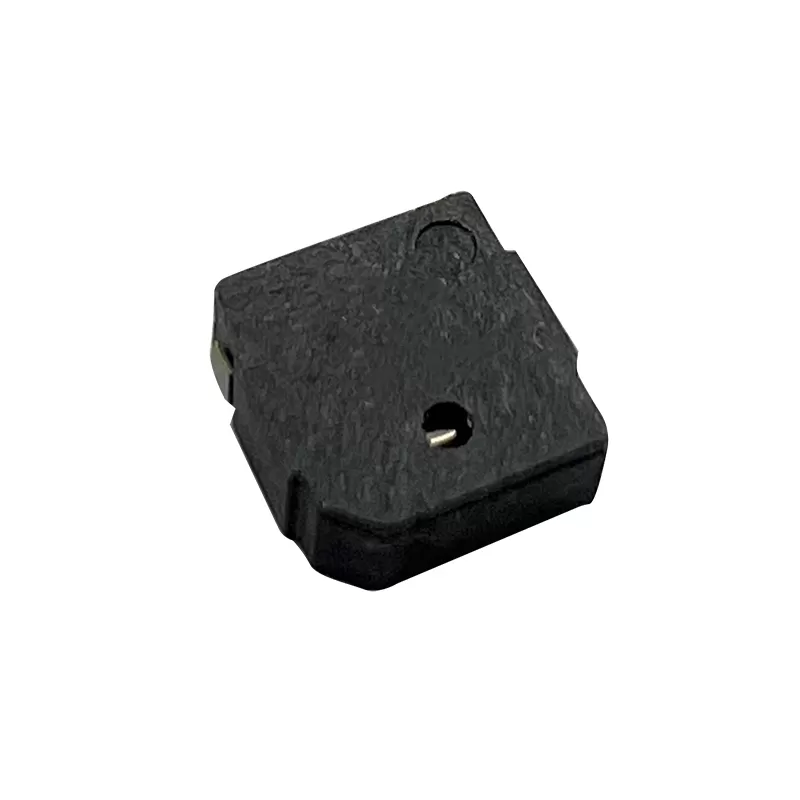

SMD Electro-magnetic Buzzer:RHTCYMT-05x02
SMD magnetic buzzers is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SMD magnetic buzzers . Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Compact SMD Construction: Ultra-small footprint for high-density PCB layouts, enabling maximum space efficiency in compact devices.
-Low Power Consumption: Optimized electromagnetic design reduces power usage, ideal for battery-powered and energy-sensitive applications.
-Clear and Consistent Sound Output: Provides stable tone quality and reliable acoustic performance across various environments.
-High Reliability and Long Lifespan: Durable internal structure ensures long operating life with reduced failure rates.
Applications
1.Consumer Electronics
2.Automotive Electronics
3.Industrial Equipment
4.Medical Devices
Specifications
Size:5*5*2.0mm
Rated Voltage 3.0Vo-p Operating Voltage 2~4Vo-p Max.Rated Current 110mA Min.S.P.L.(@10cm) MIN. 72dB at Rated Voltage at 10cm Coil Resistance(Ω) 12±3Ω Resonant Frequency 4000Hz Operating Temp -20~+70℃ Weight 0.5g
Technical Documents
Please contact us for more information.
