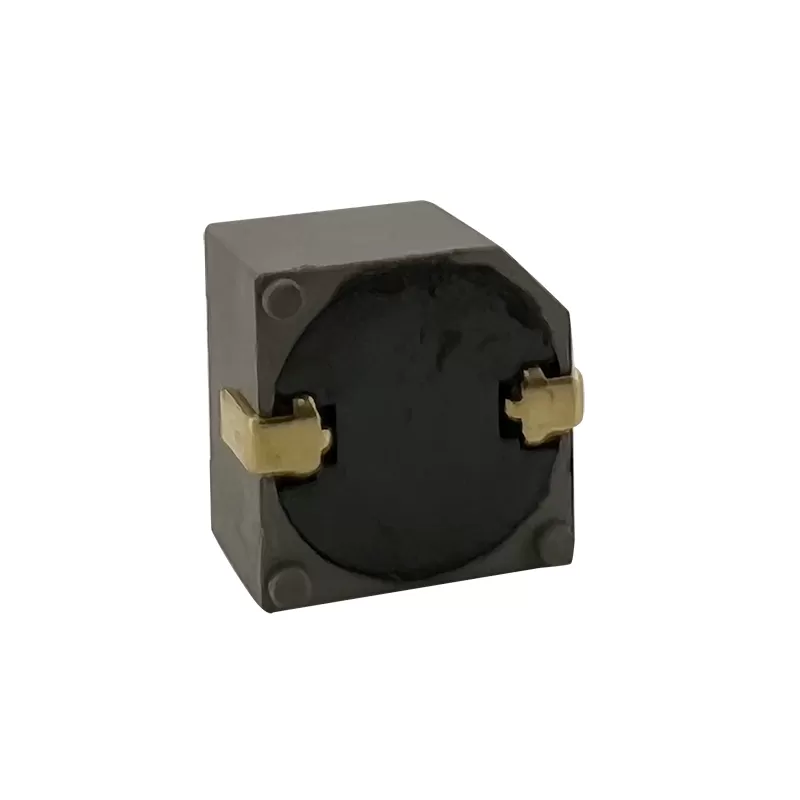

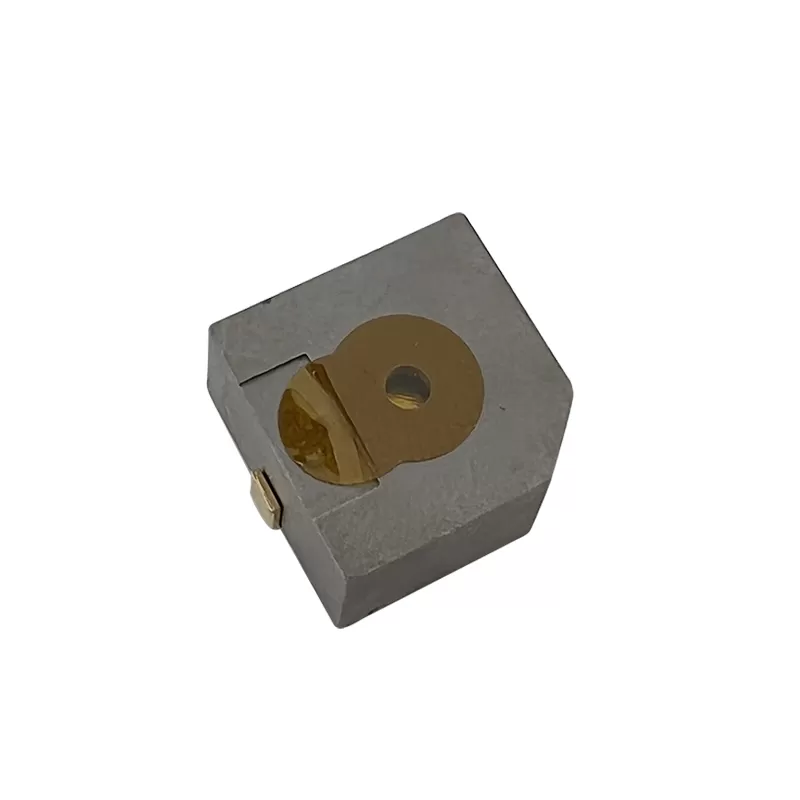

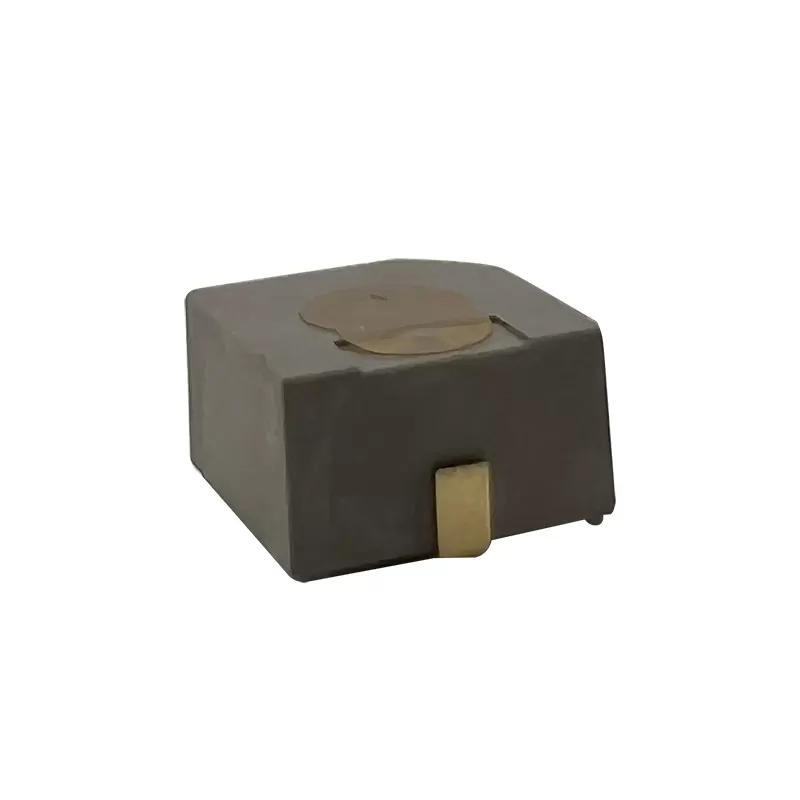

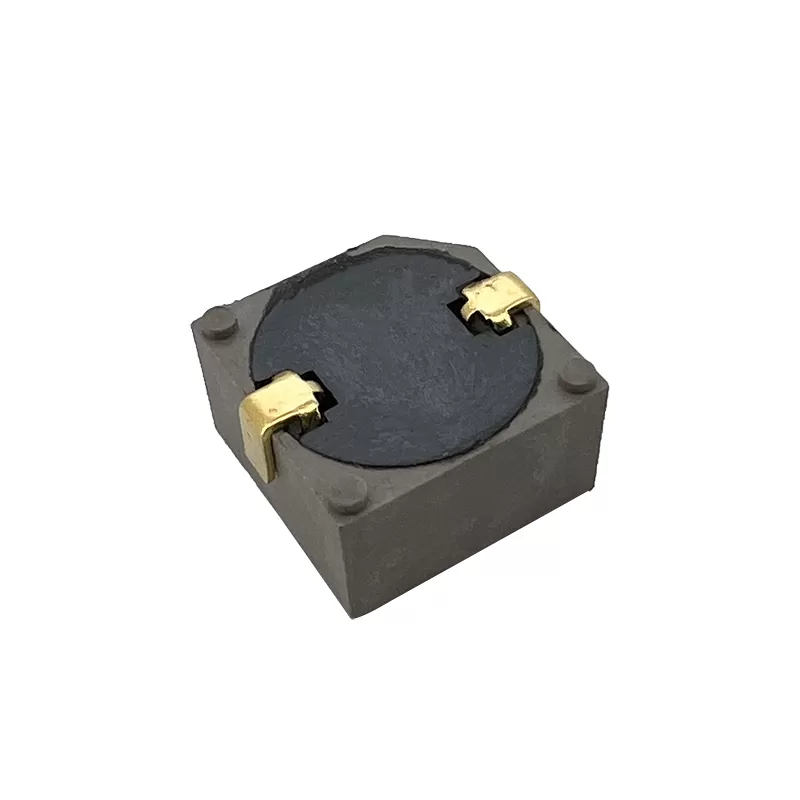

SMD Electro-magnetic Buzzer With Self Drive：RHTCYMT-13x07A
SMD magnetic buzzers is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SMD magnetic buzzers . Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Self-drive circuitry: Integrated drive circuit eliminates the need for external driving components, simplifying circuit design.
-Compact SMD package: Space-saving 13x7mm footprint ideal for high-density PCB layouts and compact electronic devices.
-Low power consumption: Efficient operation suited for battery-powered and energy-sensitive applications.
-Stable sound output: Delivers clear and consistent tone, suitable for alarms, alerts, and status indicators.
Applications
1.Consumer electronics
2.Medical devices
3.Industrial equipment
4.Security systems
Specifications
Rated Voltage 5VDC
Operating Voltage 4～7VDC
Resonant Frequency 2300±300 Hz
Sound Output at 10cm 85dB Min.
Current Consumption 30mA Max.
Operating Temperature -30～+70℃
Technical Documents
Please contact us for more information.
