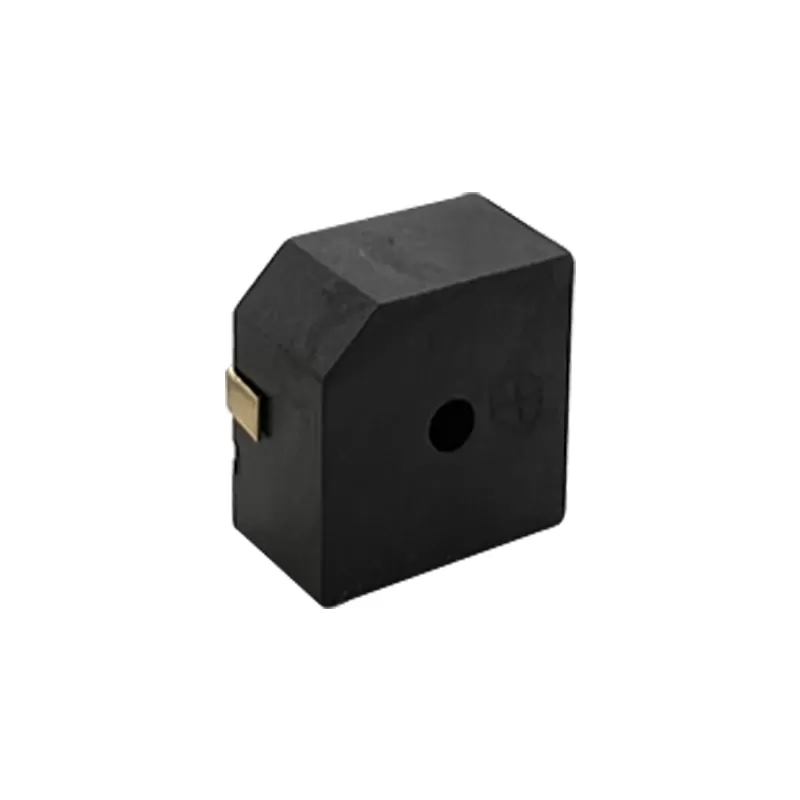

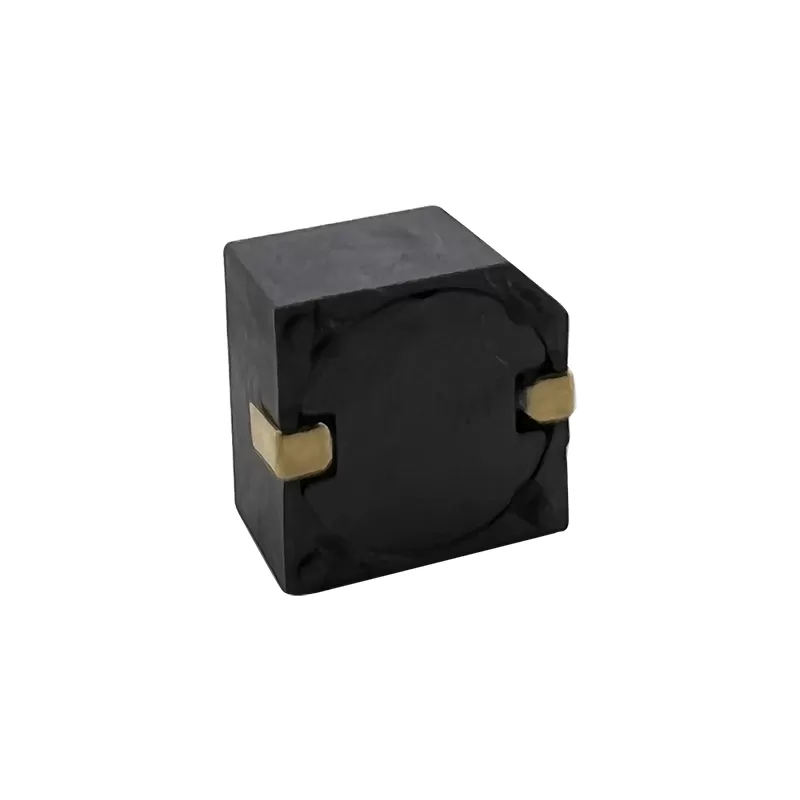

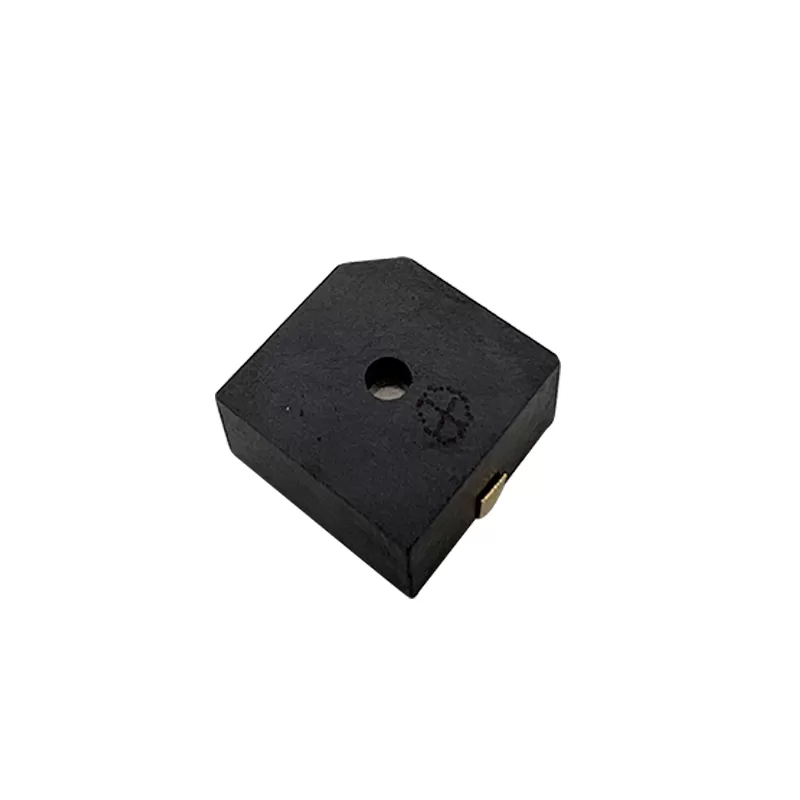

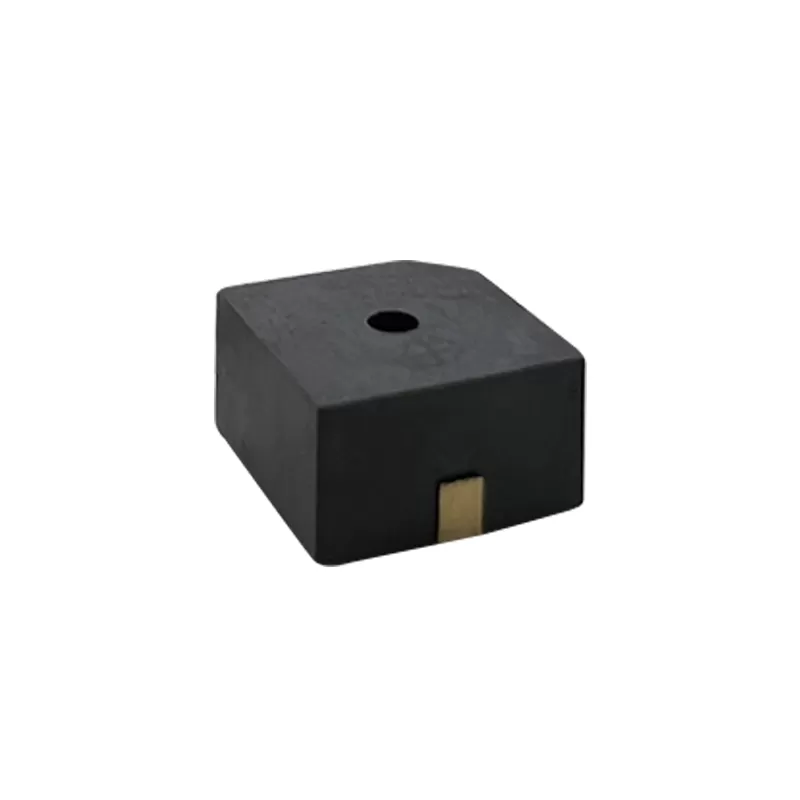

SMD Electro-magnetic Buzzer With Self Drive:RHTCYMT-10x05
SMD magnetic buzzers is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SMD magnetic buzzers . Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Compact SMD Package: Space-saving surface mount structure suitable for automated SMT production.
-Stable Sound Output: Produces consistent and clear acoustic performance with low power consumption.
-High Reliability: Durable construction ensures long operational life and resistance to vibration and shock.
-Wide Operating Voltage Range: Compatible with various electronic circuits and control systems.
Applications
1.Automotive Devices
2.Industrial Equipment
3.Security and Alarm Systems
4.Medical Instruments
Specifications
Rated Voltage 5VDC
Operating Voltage 4～7VDC
Resonant Frequency 2700±300 Hz
Sound Output at 10cm 83dB Min.
Current Consumption 30mA Max.
Operating Temperature -30～+70℃
Weight 1g
Technical Documents
Please contact us for more information.
