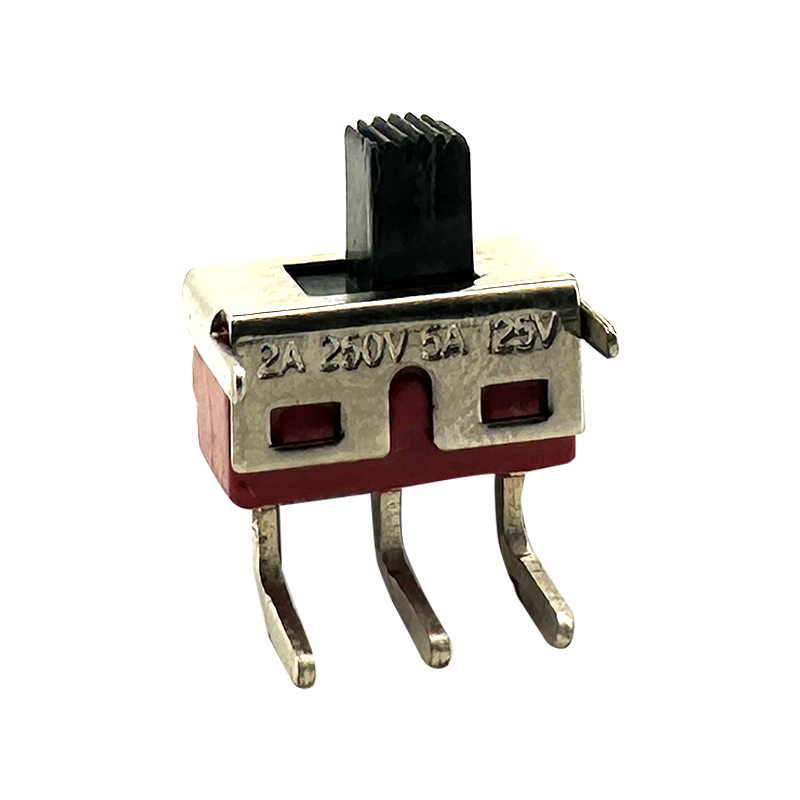

    Slide Switch:RHTGYS01-12E09A&RHTGYS01-12E09B

    Slide Switch:RHTGYS01-12E09A&RHTGYS01-12E09B

    Series P/N: RHTGYS01-12E09A/RHTGYS01-12E09B

    RHT provides a wide selection of Slide Switches, supporting reliable switching and convenient manual control for industrial control systems, electronic equipment, communication devices, household appliances, and various electronic applications.

    With various slide actuator styles, switching positions, contact configurations, terminal types, electrical ratings, and mounting methods, our products meet different circuit control requirements, operating needs, and equipment integration specifications.

    RHT works closely with engineering teams to provide suitable Slide Switch solutions, from sample evaluation and specification confirmation to design verification, product integration, and technical support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Sliding Mechanism: Slide switches operate by sliding a lever or toggle between different positions to make or break electrical connections.

    -Position Options: They typically offer two or more positions, allowing for simple on-off control or selection between multiple settings.

    -Compact Size: Slide switches are generally small and compact, making them suitable for integration into electronic devices and small control panels.

    -Durability: They are designed to withstand repeated use and mechanical stress, offering reliable operation over a long service life.


    Applications

    1.Consumer Electronics

    2.Industrial Control Panels

    3.Automotive Electronics

    4.Computer Peripherals


    Specifications

    Slide Switch

    RHTGYS01-12E09A        NO-ON

    RHTGYS01-12E09B        NO-OFF-ON

    Rating: 3A  250 VAC; 5A  125 VAC Or 28VDC

    Contact Resistance: 10MΩ max

    Insulation Resistance:1000MΩ Min

    Dielectric Strength:1500V RMS @ sea level

    Operation temperature: -30 ºC to 85 ºC

    Electrical Life :30,000 cycles actuations at full load


    Technical Documents

    Please contact us for more information.
