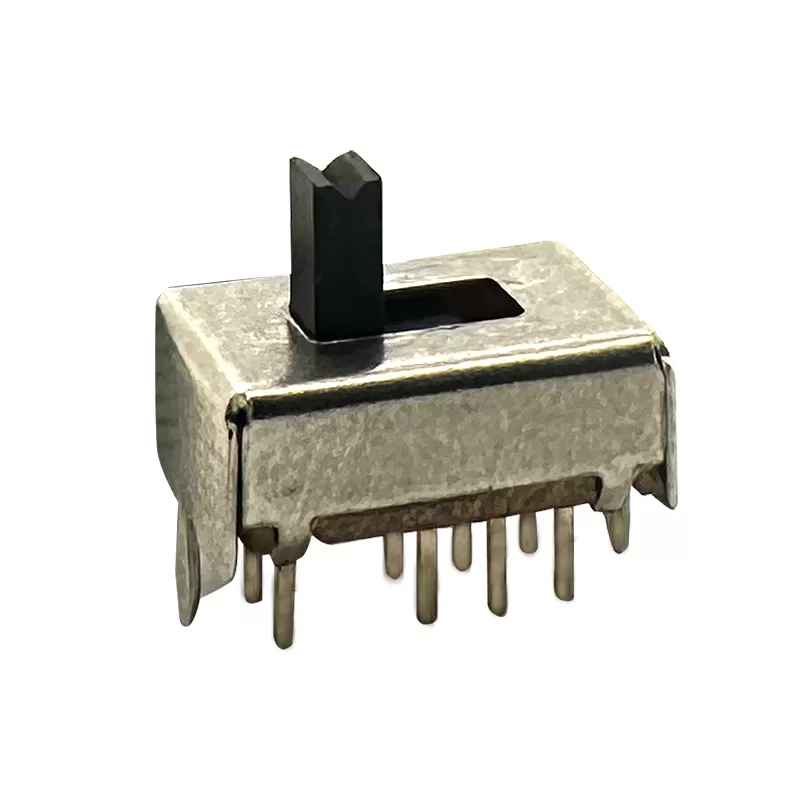

    Slide Switch (2P3T) :RHTGYS41-23D06

    Slide Switch (2P3T) :RHTGYS41-23D06

    Series P/N:RHTGYS41-23D06

    RHT provides a wide selection of Slide Switches, supporting reliable switching and convenient manual control for industrial control systems, electronic equipment, communication devices, household appliances, and various electronic applications.

    With various slide actuator styles, switching positions, contact configurations, terminal types, electrical ratings, and mounting methods, our products meet different circuit control requirements, operating needs, and equipment integration specifications.

    RHT works closely with engineering teams to provide suitable Slide Switch solutions, from sample evaluation and specification confirmation to design verification, product integration, and technical support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Two Poles means the switch has two independent circuits (input terminals). Each pole can connect to one of the three possible output terminals, allowing the switch to control two separate circuits at once.

    -Three Throws refers to the switch having three distinct positions to toggle between, allowing the user to choose one of three possible connections for each pole.

    -The switch operates via a sliding lever that the user moves back and forth between three distinct positions.

    -The action is typically accompanied by tactile feedback (a “click” or distinct feel), which helps the user know which position the switch is in.


    Applications

    1.Mode Selection in Devices

    2.Power Source Switching

    3.Signal Routing / Audio/Video Switching

    4.Fan or Motor Speed Control


    Specifications

    Slide Switch ON-ON-ON(2P3T)

    Rating: 0.3A 50VDC

    Contact Resistance: 30mΩ Max

    Insulation Resistance:500VDC 100MΩ Min

    Dielectric Strength: 500V AC 1 Minute

    Operating Force: 100gf~ 800gf

    Electrical Life :10,000 cycles


    Technical Documents

    Please contact us for more information.
