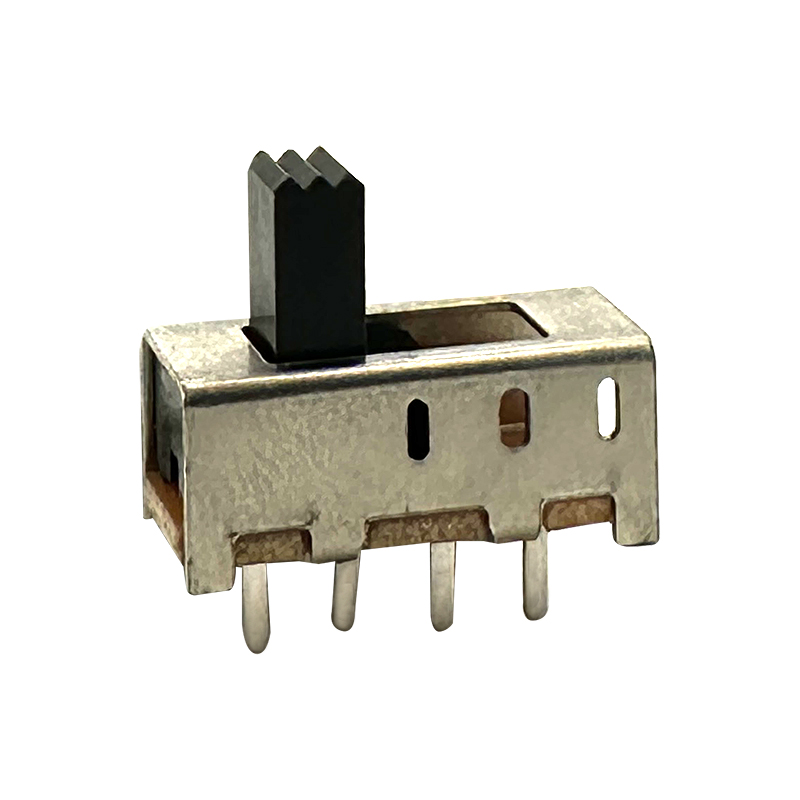

    Slide Switch (1P3T):RHTGYS09-13F06

    Slide Switch (1P3T):RHTGYS09-13F06

    Series P/N:RHTGYS09-13F06

    RHT provides a wide selection of Slide Switches, supporting reliable switching and convenient manual control for industrial control systems, electronic equipment, communication devices, household appliances, and various electronic applications.

    With various slide actuator styles, switching positions, contact configurations, terminal types, electrical ratings, and mounting methods, our products meet different circuit control requirements, operating needs, and equipment integration specifications.

    RHT works closely with engineering teams to provide suitable Slide Switch solutions, from sample evaluation and specification confirmation to design verification, product integration, and technical support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Contacts: It has four terminals in total: one common terminal (C) and three other terminals (A, B, and C) to which the common terminal can be connected depending on the switch's position.

    -Versatility: Offers versatility in circuit design by allowing selection between three different paths or states with a single switch.

    -Durability: Designed to withstand repeated use and mechanical stress, ensuring long-term reliability in applications where switching between multiple circuits is required.

    -Electrical Rating: Available in various ratings for voltage and current, suitable for different electronic and electrical applications.


    Applications

    1.Industrial Control Systems

    2.Consumer Electronics

    3.Computer Peripherals

    4.Automotive Electronics


    Specifications

    Slide Switch ON-ON-ON (1P3T)

    Rating: 0.5A 50VDC

    Contact Resistance: 50MΩ max

    Insulation Resistance:500VDC 100MΩ Min

    Dielectric Strength:100V AC 1 Minute

    Operating Force:100gf~800gf

    Electrical Life :10,000 cycles


    Technical Documents

    Please contact us for more information.
