RHT provides a wide selection of Slide Switches, supporting reliable switching and convenient manual control for industrial control systems, electronic equipment, communication devices, household appliances, and various electronic applications.
With various slide actuator styles, switching positions, contact configurations, terminal types, electrical ratings, and mounting methods, our products meet different circuit control requirements, operating needs, and equipment integration specifications.
RHT works closely with engineering teams to provide suitable Slide Switch solutions, from sample evaluation and specification confirmation to design verification, product integration, and technical support.
Features
-Single-Pole, Double-Throw (1P2T): This configuration means that the switch has one common terminal (pole) that can be connected to one of two possible positions (throws). In total, it has three terminals: one common terminal (C) and two throw terminals (A and B).
-Functionality: Allows for switching between two different circuits or signal paths with a single switch, providing basic control over routing signals or selecting between two options.
-Slide Mechanism: Operates with a sliding lever or toggle mechanism that moves between two positions to change the connection between the common terminal and one of the throw terminals.
-Durability: Designed to withstand repeated use and mechanical stress, ensuring reliable performance over a long service life.
Applications
1.Consumer Electronics
2.Automotive Electronics
3.Computer Peripherals
4.DIY Electronics Projects
Specifications

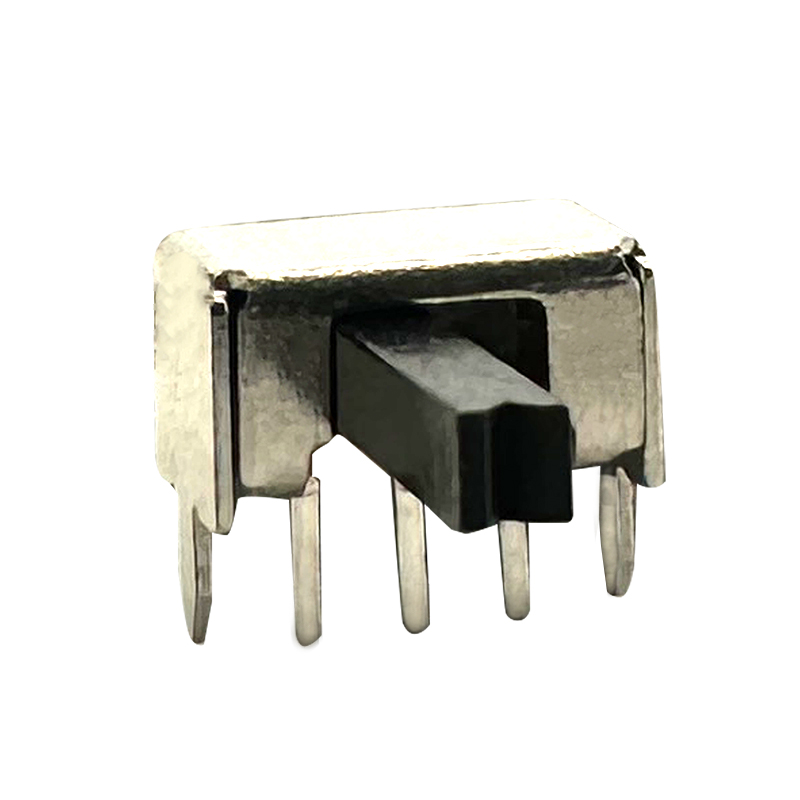

Slide Switch ON-ON (1P2T)
Rating: 0.3A 50VDC
Contact Resistance: 30mΩ Max
Insulation Resistance:500VDC 100MΩ Min
Dielectric Strength: 500V AC 1 Minute
Operating Force:100gf~ 800gf
Electrical Life :10,000 cycles
Technical Documents
Please contact us for more information.
