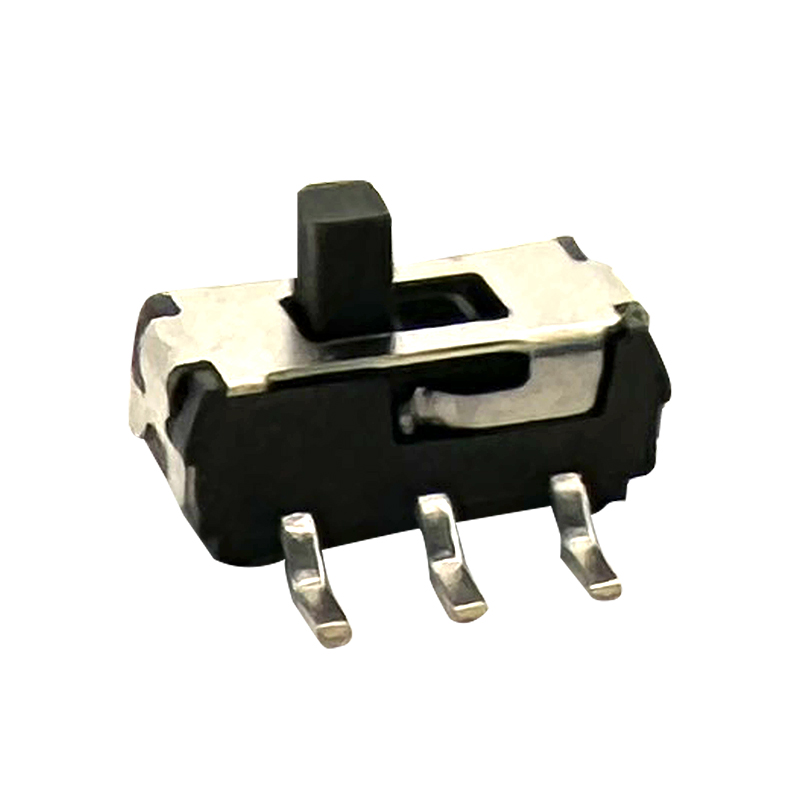

    Mini Slide Switch, 9.0x3.5x3.5mm,DPDT SMD Vertical :RHTGYSS-2235S

    Mini Slide Switch, 9.0x3.5x3.5mm,DPDT SMD Vertical :RHTGYSS-2235S

    Series P/N: RHTGYSS-2235S

    RHT provides a wide selection of Slide Switches, supporting reliable switching and convenient manual control for industrial control systems, electronic equipment, communication devices, household appliances, and various electronic applications.

    With various slide actuator styles, switching positions, contact configurations, terminal types, electrical ratings, and mounting methods, our products meet different circuit control requirements, operating needs, and equipment integration specifications.

    RHT works closely with engineering teams to provide suitable Slide Switch solutions, from sample evaluation and specification confirmation to design verification, product integration, and technical support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Compact Size: The dimensions 9.0mm x 3.5mm x 3.5mm make it small and space-efficient, suitable for applications where size constraints are important.

    -SMD (Surface-Mount Device): This means the switch is designed to be mounted on the surface of a PCB (printed circuit board), rather than through holes. This type of design is ideal for automated assembly processes and contributes to a more compact circuit layout.

    -Vertical Mounting: This indicates that the switch is mounted vertically on the PCB. Vertical mounting helps conserve space, especially in designs where height is limited.

    -Mechanical Type: Being a slide switch, it typically has a sliding mechanism, which means it moves along a track or channel to toggle between positions.


    Applications

    1.Portable Devices

    2.Medical Equipment

    3.Prototyping and Development

    4.Audio Equipment


    Specifications

    ELECTRICAL

    Rating:                       0.3A 30V DC

    Function:                    2P2T

    Timing:                        Non-shorting

    Contact Resistance:    70mΩ Max.

    Insulation Resistance:100MΩ Min. at 500V DC

    Dielectric Strength:    AC 500V for 1 min

    Operating Temper:      -20°C ~+80°C

    Operating Force:         250 ± 150gf

    Life Test:                  10000 Cycles
