SIM Card Connector PUSH PUSH 6P+2P H2.25mm without Post:RHTAYIM-030A

Series P/N:RHTAYIM-030A

RHT provides a wide selection of SIM Card Connectors, Micro SIM Card Connectors, and Nano SIM Card Connectors for mobile devices, wireless communication equipment, IoT devices, and embedded systems.

With various card formats, contact layouts, mounting options, and insertion mechanisms, our products support different PCB designs, space constraints, and device integration requirements.

As a connector solutions partner, RHT works closely with engineering teams to understand technical requirements and provide suitable SIM card connector solutions from sample evaluation and design verification to product integration and project implementation

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Height (H2.25mm):Specifies the vertical clearance required above the PCB surface for the connector, ensuring proper spacing for components and airflow within the electronic device.

-Pin Configuration:Typically includes 6 primary pins for standard SIM card connectivity (such as VCC, GND, and data lines) and 2 additional pins for features like SIM card detection (CD pin) or additional functionalities.

-High Durability:Engineered to withstand frequent insertion and removal cycles, ensuring long-term reliability and performance in various operating conditions.

-Secure Connection:Provides a stable and secure connection to the SIM card, minimizing the risk of disconnection due to vibrations or mechanical stress.

Applications

1.Automotive Systems

2.Medical Devices

3.Security Systems

4.Point of Sale (POS) Terminals

Specifications

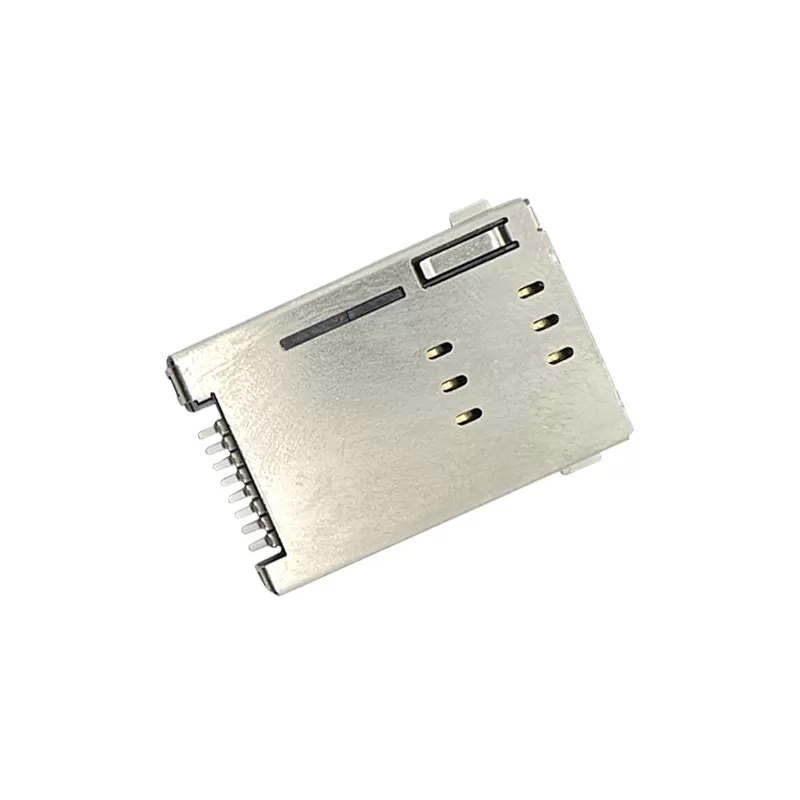

SIM Card Connector,PUSH PUSH,6P+2P,H2.25mm,without Post

Material:

Housing:Hi-Temp Plastic,UL94V-0.Rated.

Contact:Copper Alloy.

Shell:Stainless Steel.SUS 301,T=0.20mm.

Plating:
