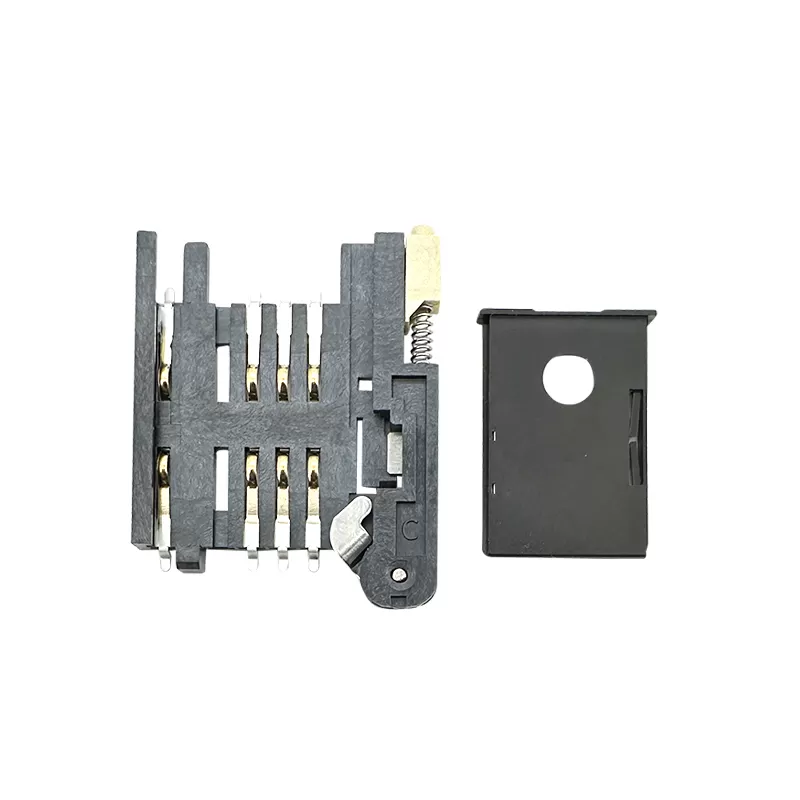

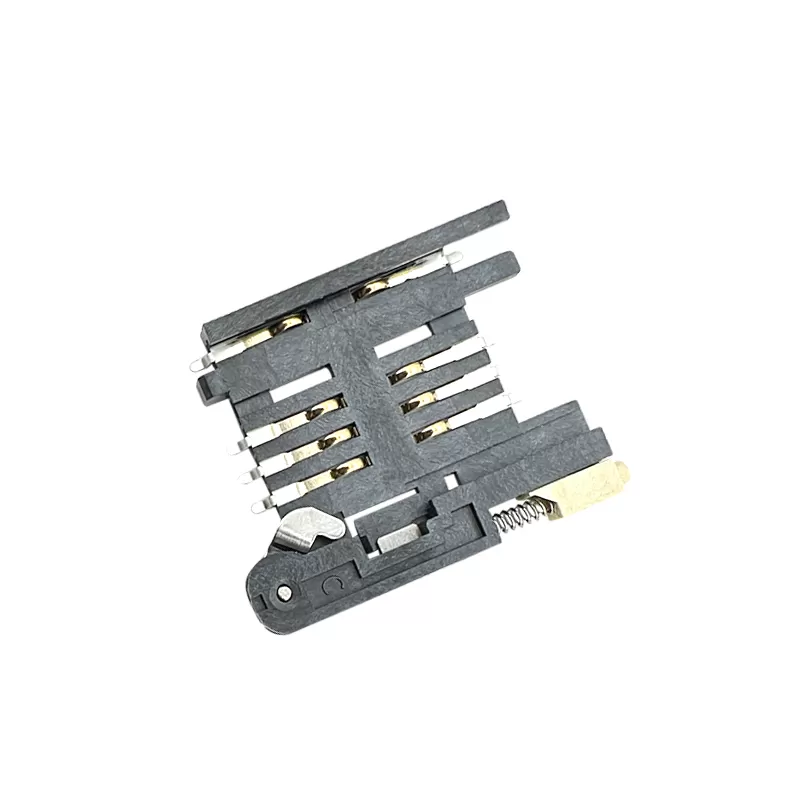

SIM Card Connector connector,PUSH PUSH,6P+2P - 8P+2P ：RHTAYIM-014

Series P/N:RHTAYIM-014

RHT provides a wide selection of SIM Card Connectors, Micro SIM Card Connectors, and Nano SIM Card Connectors for mobile devices, wireless communication equipment, IoT devices, and embedded systems.

With various card formats, contact layouts, mounting options, and insertion mechanisms, our products support different PCB designs, space constraints, and device integration requirements.

As a connector solutions partner, RHT works closely with engineering teams to understand technical requirements and provide suitable SIM card connector solutions from sample evaluation and design verification to product integration and project implementation

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-6P+2P to 8P+2P Configurations: Offers flexibility with pin configurations, accommodating a range of device requirements. The additional pins can support extended functions like grounding, detection, or additional connectivity.

-Pitch: The pitch refers to the spacing between the pins or contacts. Specific pitch measurements are not provided in your query, but they typically range around 1.5mm to 1.8mm for such connectors, ensuring proper alignment and electrical contact.

-Hinged Type: Some SIM card connectors may feature a hinged cover or door mechanism. This design protects the SIM card and ensures secure retention when it is inserted into the connector.

-Robust Design: SIM card connectors are designed to withstand repeated insertions and removals of SIM cards without compromising functionality. They are often made with durable materials to ensure longevity.

-Compatibility: These connectors are designed to be compatible with standard SIM card sizes, ensuring proper fit and reliable electrical connections.

Applications

1.Tablets and Laptops

2.IoT Devices

3.Automotive Applications

4.Industrial Equipment

Specifications

Molex SIM Card Connector connector,PUSH PUSH,6P+2P & 8P+2P

Material:

Housing Material: LCP UL94V-0

Contact Material: Tin-Bronze

Package: Tape and Reel Package
