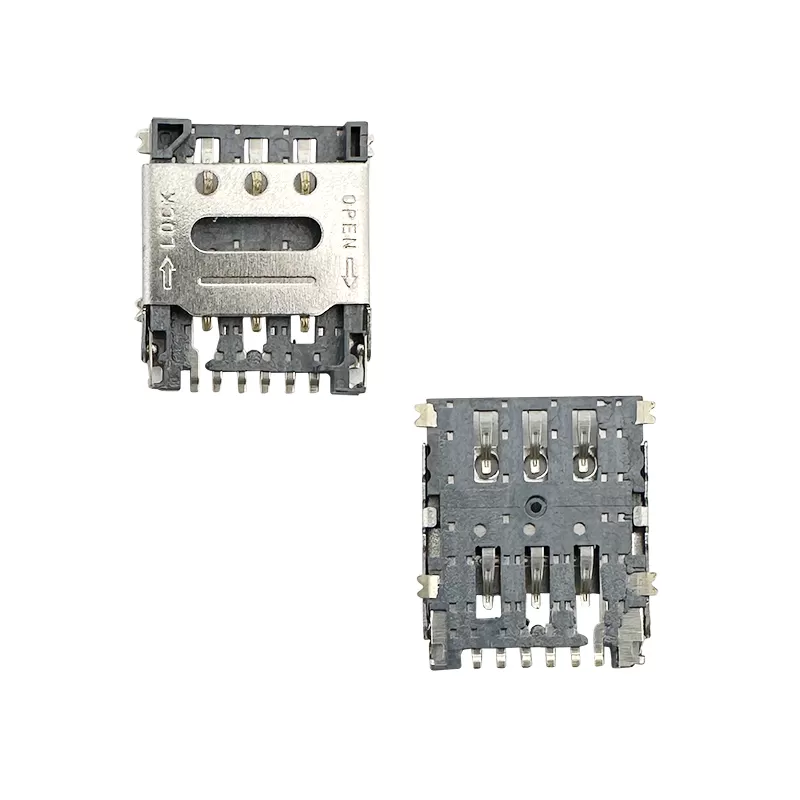

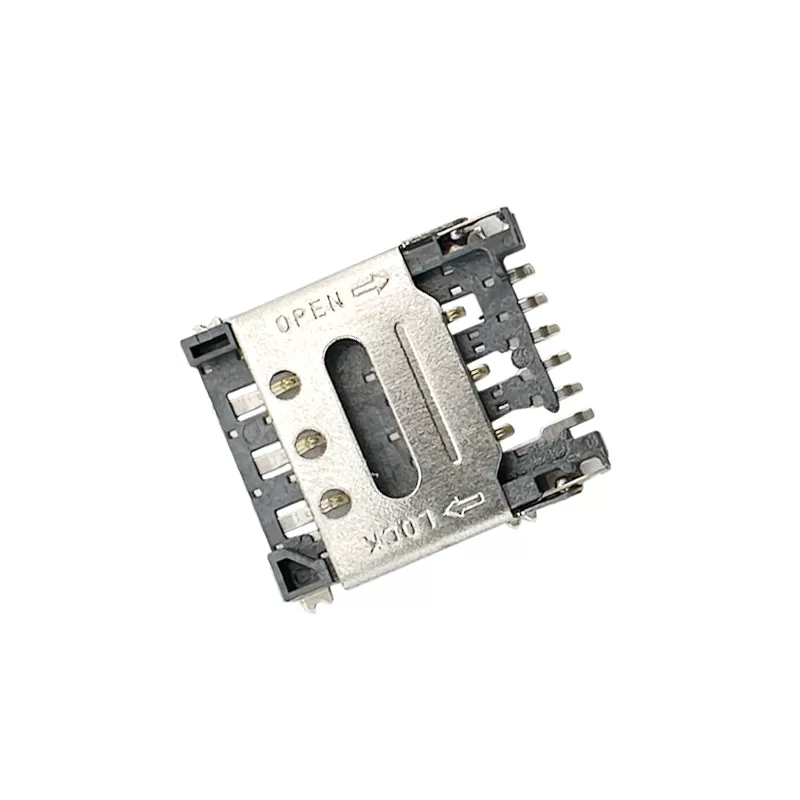

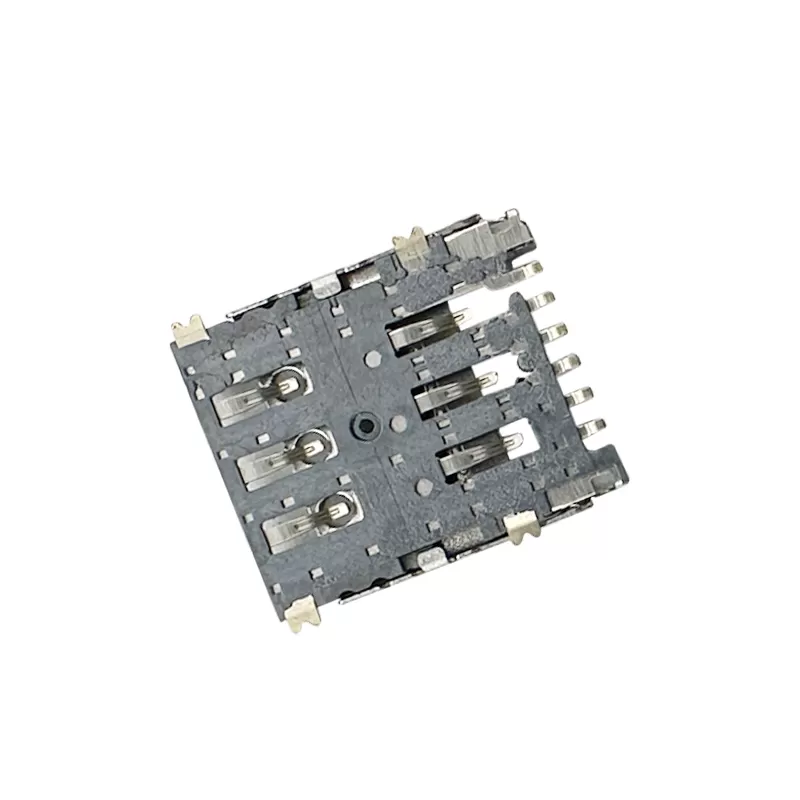

Nano SIM Card Connector 6Pin H1.4mm Hinged Type with CD Pin:RHTAYIM-077A
RHT provides a wide selection of SIM Card Connectors, Micro SIM Card Connectors, and Nano SIM Card Connectors for mobile devices, wireless communication equipment, IoT devices, and embedded systems.
With various card formats, contact layouts, mounting options, and insertion mechanisms, our products support different PCB designs, space constraints, and device integration requirements.
As a connector solutions partner, RHT works closely with engineering teams to understand technical requirements and provide suitable SIM card connector solutions from sample evaluation and design verification to product integration and project implementation
Features
-Compact Design: At a height of just 1.4mm, this connector is ideal for compact, space-sensitive applications, particularly in modern electronic devices where space is at a premium.
-Hinged Type Mechanism:The hinged design allows the SIM card tray to swing open, facilitating easy insertion and removal of the SIM card. This provides a secure and reliable connection once closed.
-Pin Configuration:Includes 6 pins to support all necessary electrical connections for full functionality and compatibility with standard nano SIM cards.
-Card Detect (CD) Pin:The CD pin detects the presence or absence of a SIM card. This feature allows the device to know when a SIM card is inserted or removed, enabling functionalities like software notifications or hardware triggers.
-High Durability: Designed for high endurance and resilience, suitable for applications in harsh environments or devices subject to frequent handling.
Applications
1.Automotive
2.Medical Devices
3.Security Systems
4.Industrial Equipment
Specifications
Nano SIM Card Connector,6Pin,H1.4mm,Hinged Type,with CD Pin
Material:
Insulator:High Temperature Thermoplastic,UL94V-0.
Contact:Copper Alloy,Plated 50u" Ni Overall Contact All Au 1U.
Shell:SUS.All Ni 30U MIN.
Electrical:
Current Rating:0.5A AC/DC MAX.
Voltage Rating:125V AC/DC
Ambient Humidity Range:95% R.H. Max.
Contact Resistance:80mΩ Max.
Insulation Resistance:100MΩ Min./100V DC
Mating Cycles:5000 Insertions.
Operating Temperature: -45ºC~+85ºC
Technical Documents
Please contact us for more information.
