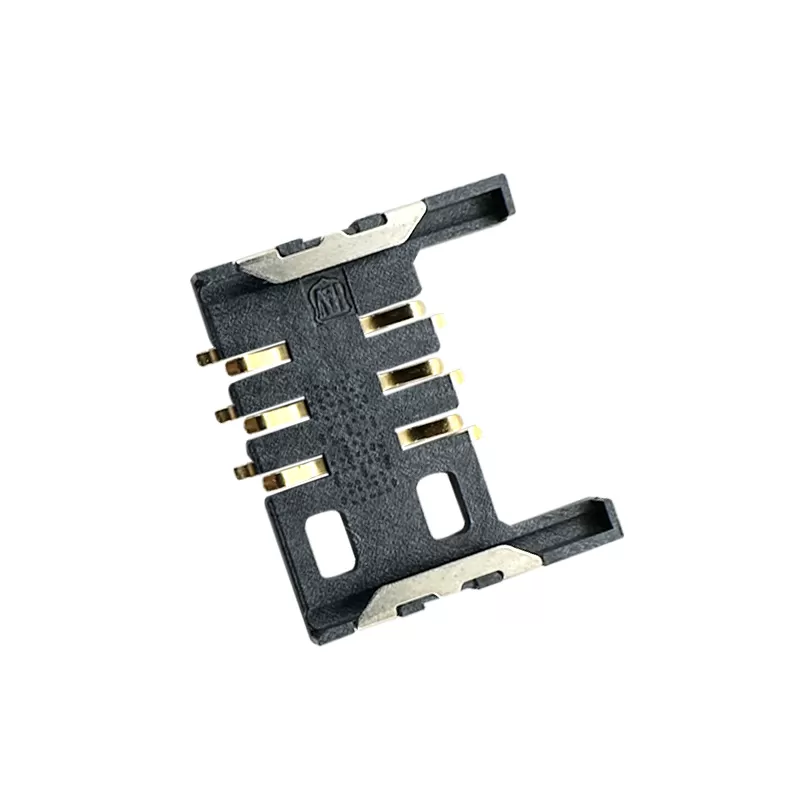

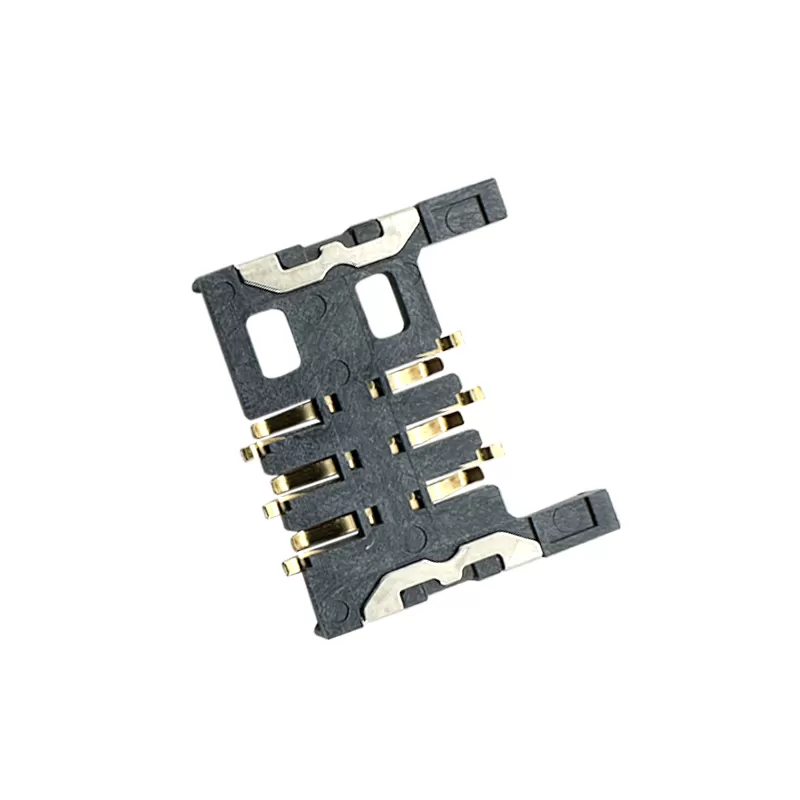

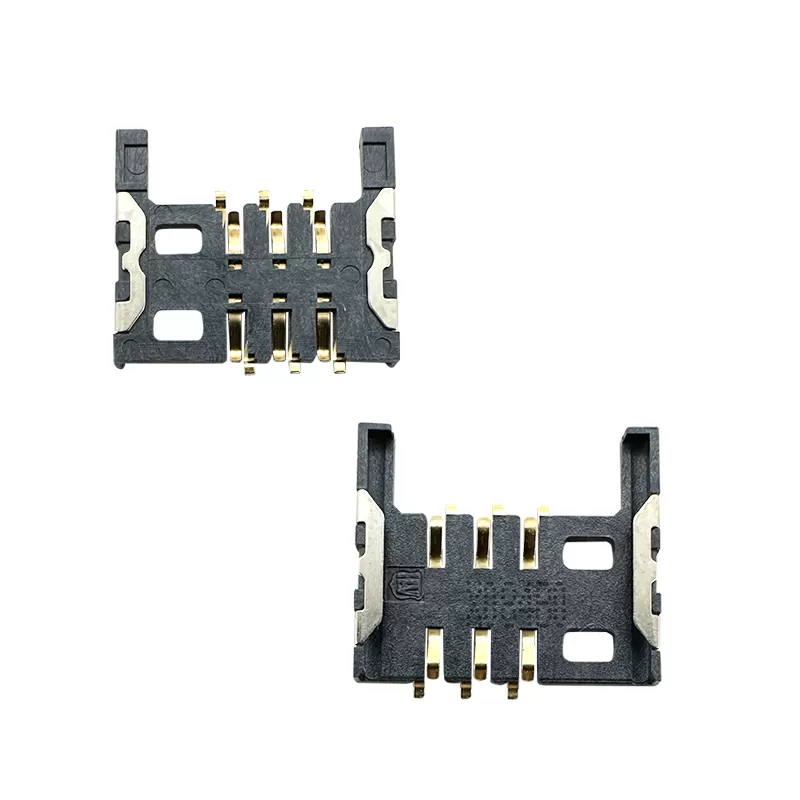

6P SIM Card Connector Push-Pull Mechanism,H2.7mm:RHTAYIM-015

Series P/N:RHTAYIM-015

RHT provides a wide selection of SIM Card Connectors, Micro SIM Card Connectors, and Nano SIM Card Connectors for mobile devices, wireless communication equipment, IoT devices, and embedded systems.

With various card formats, contact layouts, mounting options, and insertion mechanisms, our products support different PCB designs, space constraints, and device integration requirements.

As a connector solutions partner, RHT works closely with engineering teams to understand technical requirements and provide suitable SIM card connector solutions from sample evaluation and design verification to product integration and project implementation

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Secure Locking: The connector locks the SIM card securely in place when pushed in, preventing it from coming loose or dislodging, even during normal device usage or while the device is being moved.

-Smooth Operation: This mechanism offers smooth, tool-free operation for the user, ensuring that cards are securely inserted without the need for screws or other fastening methods.

-Improved Reliability: With 6 pins, the connection is more robust, leading to improved performance and reliability, ensuring that the SIM card functions correctly without intermittent issues.

-Low Profile: The H2.7mm height (pitch) indicates the connector is designed to be low-profile and space-efficient. This small height is ideal for devices with limited internal space, such as smartphones, tablets, or IoT devices.

Applications

1.Mobile Phones and Smartphones

2.Tablets

3.Smartwatches with Cellular Capabilities

4.Portable IoT Devices

Specifications

6P SIM Card Connector,PUSH PULL,H2.7mm

Material:

Housing:Hi-Temp.Plastic,UL94V-0.Black.

Terminal:Copper Alloy,(T=0.15mm),Gold Plated Over Nickel.

Fork:Copper Alloy,(T=0.20mm),Tin Plated Over Nickel.

Electrical:
