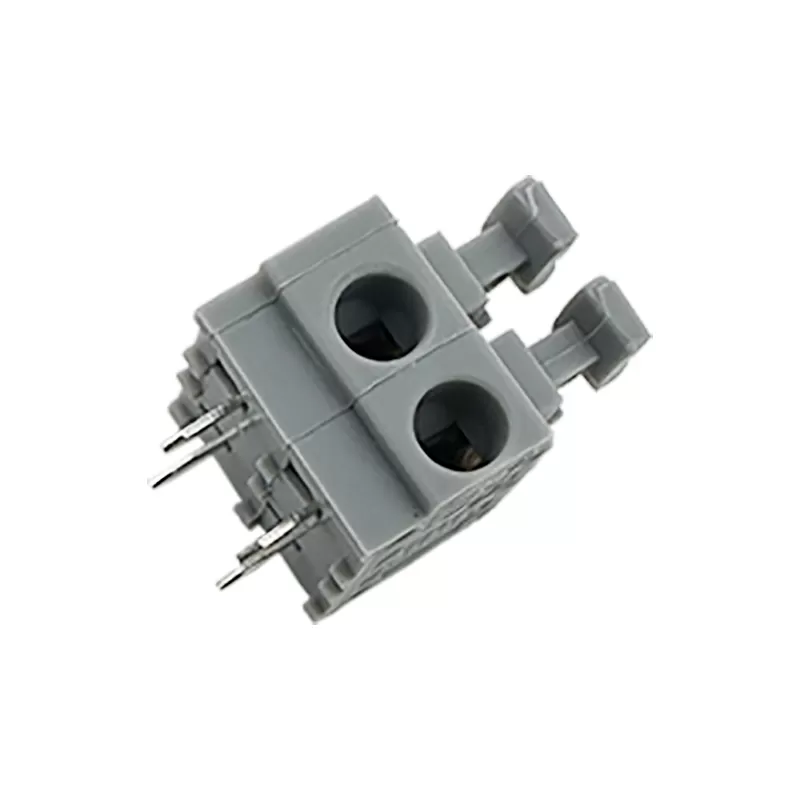

    7.50mm Spring Terminal Block:RHTBY35R-7.50

    Series P/N: RHTBY35R-7.50

    RHT provides a wide selection of Screwless Spring Terminal Blocks, supporting reliable electrical connections for industrial control systems, automation equipment, power distribution systems, and electrical installations.

    With various pole configurations, pitch sizes, current ratings, voltage options, and spring-clamp connection designs, our products meet different wiring, installation, and maintenance requirements.

    RHT works closely with engineering teams to provide suitable Screwless Spring Terminal Block solutions, from sample evaluation and design verification to product integration and technical support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Material: Terminal blocks are typically made from materials such as nylon or thermoplastic for insulation and conductive parts made of materials like copper alloy or brass. This construction ensures durability and good electrical conductivity.

    -Wire Size Compatibility: Specifies the range of wire sizes (usually in AWG or mm²) that can be accommodated by the terminal block. This ensures compatibility with various wiring needs, allowing for flexibility in wire selection.

    -Spring Clamp Mechanism: The spring clamp mechanism allows wires to be inserted into the terminal block by pushing them into the spring opening. The spring then holds the wire securely in place, providing a reliable electrical connection without the need for tightening screws.

    -Ease of Installation: Designed for quick and easy installation, spring terminal blocks facilitate rapid wiring connections. The spring clamp mechanism simplifies the insertion and removal of wires, making them suitable for applications where frequent wiring changes or adjustments are necessary.


    Applications

    1.Industrial Control Panels

    2.Building Automation

    3.Consumer Electronics

    4.Automotive Electronics


    Specifications

    Material

    Housing:      PA66 , UL94V-0

    Pin header:  Brass, Tin plated

    Wire guard: Stainless steel

    Electrical

    Rated voltage:    300V

    Rated current:    5A

    Wire range:      22~18AWG  1.0mm²

    Contact Resistance: 20 m Ω

    Insulation resistance:  500MΩ/DC500V

    Withstand voltage:      AC2000V / 1 min

    Mechanical

    Temp. Range:   -40 ° C ~ + 105 ° C

    Soldering:       250° C±5° C   for   5S

    Strip length:     9~10mm


    Technical Documents

    Please contact us for more information.
