RHT provides a wide selection of Rocker Switches, supporting reliable switching performance and convenient manual control for industrial control systems, electrical equipment, household appliances, automotive applications, and various electronic devices.
With various rocker styles, actuator designs, operating functions, contact configurations, terminal options, and mounting methods, our products meet different switching requirements, panel designs, and equipment integration needs.
RHT works closely with engineering teams to provide suitable Rocker Switch solutions, from sample evaluation and specification confirmation to design verification, product integration, and technical support.
Features
-Features a wide actuator that is easy to press with your finger, offering a tactile feedback to indicate whether the switch is in the on or off position.
-Features a wide actuator that is easy to press with your finger, offering a tactile feedback to indicate whether the switch is in the on or off position.
-Many rocker switches come in illuminated versions, which light up (typically with LEDs) to indicate the on/off status of the device.
-Built from durable materials such as plastic, metal, and ceramic, ensuring long-term reliability and resistance to wear.
Applications
1.Power Distribution and Circuit Panels
2.Audio/Visual Equipment
3.Aerospace and Aviation
4.Commercial Equipment
Specifications

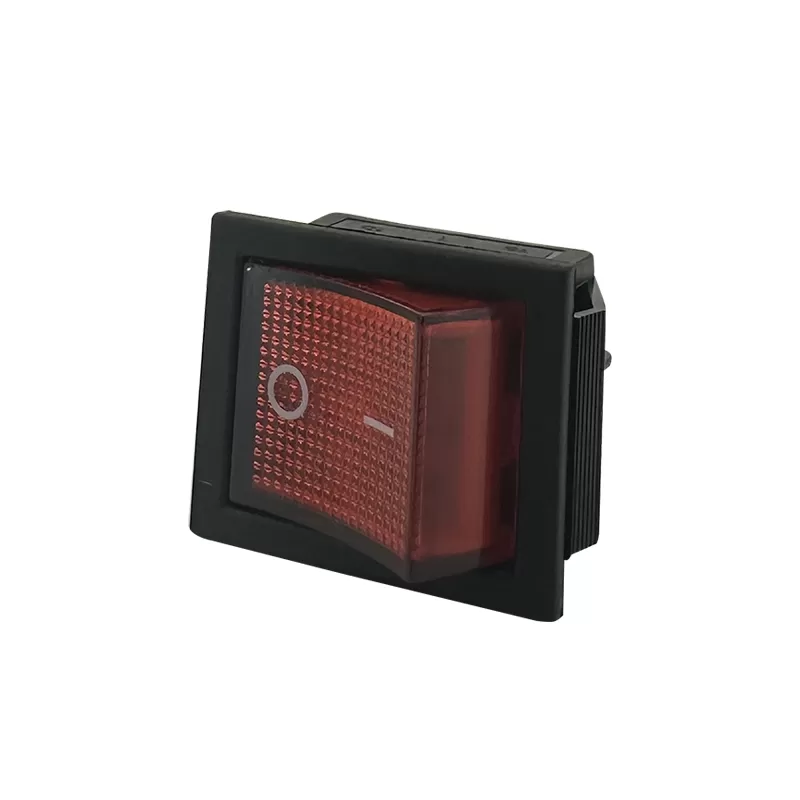

Rocker Switch
MATERIAL
1.Housing: Nylon 66
2.Rocker: PC & PA66
3.Contacts: Silver Alloy
4.Terminal: Brass Silver Plated
5.Lamp: Neon Lamp,Tungsten Lamp
6.Spring: SWP,SUS
7.Movable Arm: Brass Silver Plated
ELECTRICAL
1.Electrical Rating:16(4)A 250VAC T85
16(4)A 250VAC T125/55 1E4
16A 125V/8A 250AC
(H)Rating:16(8)A 250VAC T85/55 1E4
2.Mechanical life:Over 30000 Cycles
3.Electrical life: Over 10000 Cycles
4.Contact Resistance:<20mΩ
5.Insulation Resistance:>1000MΩ
6.High Voltage Resistance:>1500V 1 min
7.Ambient Temperature: Terminal Side -20ºC~+85ºC; Actuating Side -20ºC~+55ºC
8.Storage Temperature: -30ºC~+80ºC Max
9.Atmospheric Humidity: Max 85%
10.Actuating force: 4~8N(depends on different switch function)
11.Flammability: UL94 V-2
12.Temperature rise at the terminal: Max 30ºC (Ul1054)
13.Solder ability of terminal: Max 350ºC 3S
Technical Documents
Please contact us for more information.
