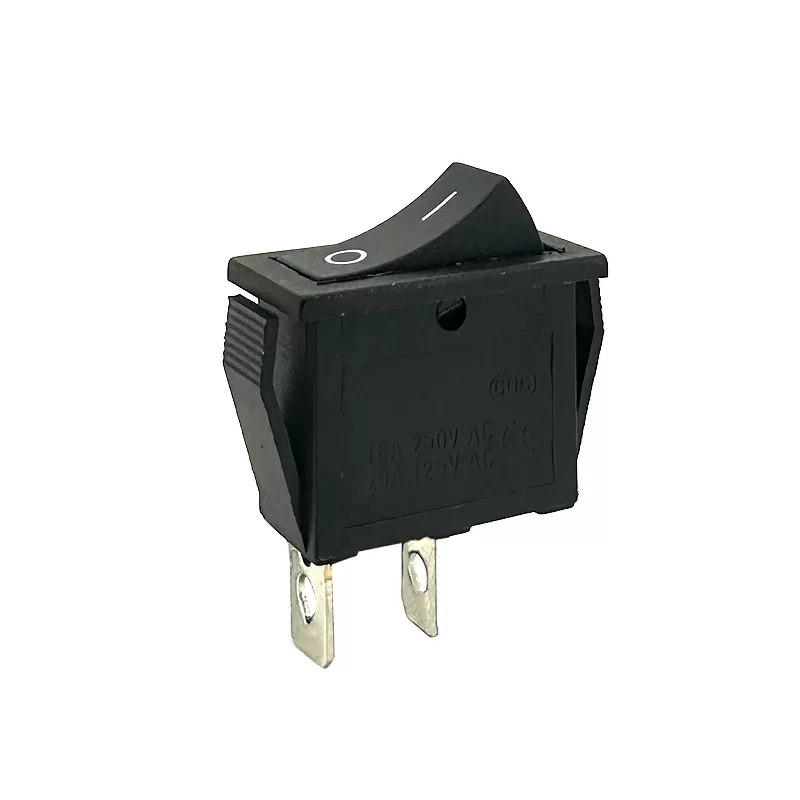

RHT provides a wide selection of Rocker Switches, supporting reliable switching performance and convenient manual control for industrial control systems, electrical equipment, household appliances, automotive applications, and various electronic devices.
With various rocker styles, actuator designs, operating functions, contact configurations, terminal options, and mounting methods, our products meet different switching requirements, panel designs, and equipment integration needs.
RHT works closely with engineering teams to provide suitable Rocker Switch solutions, from sample evaluation and specification confirmation to design verification, product integration, and technical support.
Features
-The rocker switch operates with a simple pressing action, typically rocking back and forth to toggle between on and off states.
-The switch often features a mechanical snap action, making it easy to feel when it's engaged.
-Low-force operation is common, requiring minimal effort to engage.
-Available in a wide range of colors and designs, allowing for customization to match the aesthetic or functional needs of the product.
Applications
1.Computers and Electronics
2.Industrial and Manufacturing Equipment
3.Automotive Applications
4.Power Panels and Circuit Boards
Specifications
MATERIAL
1.Housing: Nylon 66
2.Rocker: PC & PA66
3.Contacts: Silver Alloy
4.Terminal: Brass Silver Plated
5.Lamp: Neon Lamp,Tungsten Lamp
6.Spring: SWP,SUS
7.Movable Arm: Brass Silver Plated
ELECTRICAL
1.Electrical Rating:
10(4)A 250VAC T85
16(4)A 250VAC T125/55 1E4
15A 125V/7.5A 250AC
2.Mechanical life:Over 30000 Cycles
3.Electrical life: Over 10000 Cycles
4.Contact Resistance:<20mΩ
5.Insulation Resistance:>1000MΩ
6.High Voltage Resistance:>1500V 1 min
7.Ambient Temperature: Terminal Side -20ºC~+85ºC; Actuating Side -20ºC~+55ºC
8.Storage Temperature: -30ºC~+80ºC Max
9.Atmospheric Humidity: Max 85%
10.Actuating force: 4~8N(depends on different switch function)
11.Flammability: UL94 V-2
12.Temperature rise at the terminal: Max 30ºC (Ul1054)
13.Solder ability of terminal: Max 350ºC 3S
Technical Documents
Please contact us for more information.
