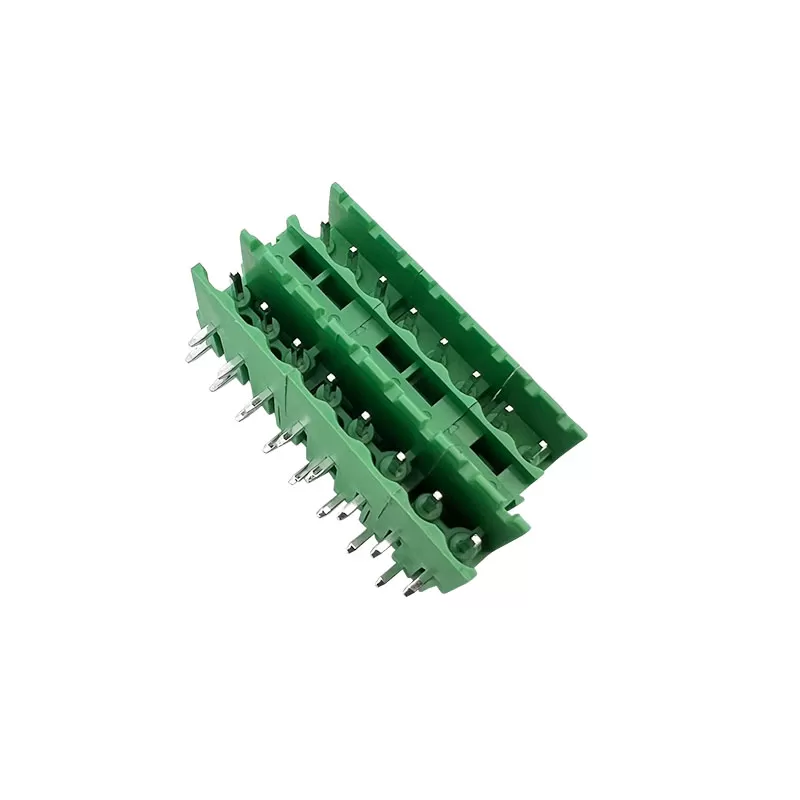

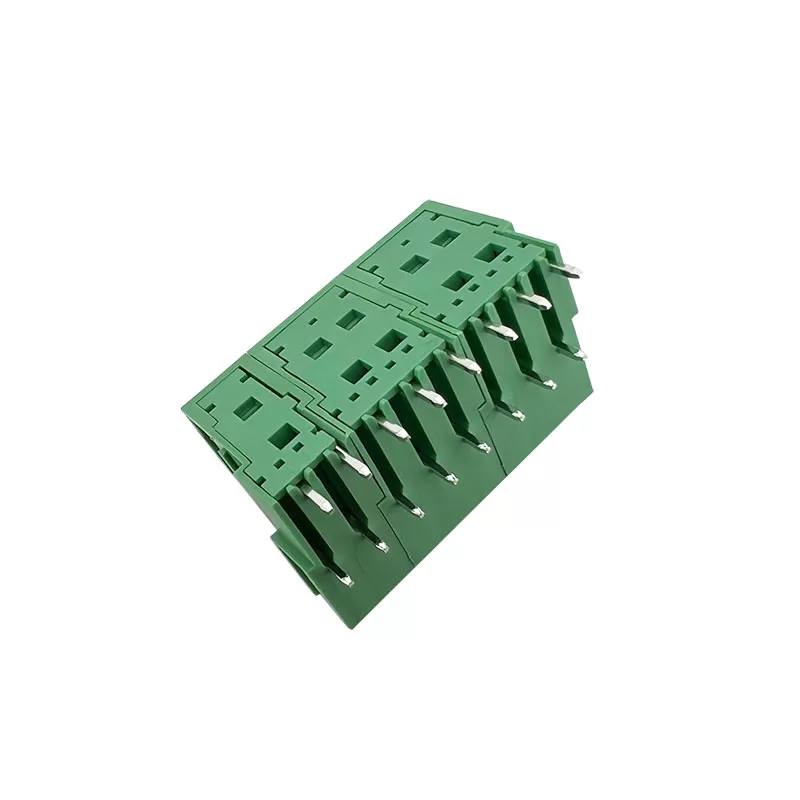

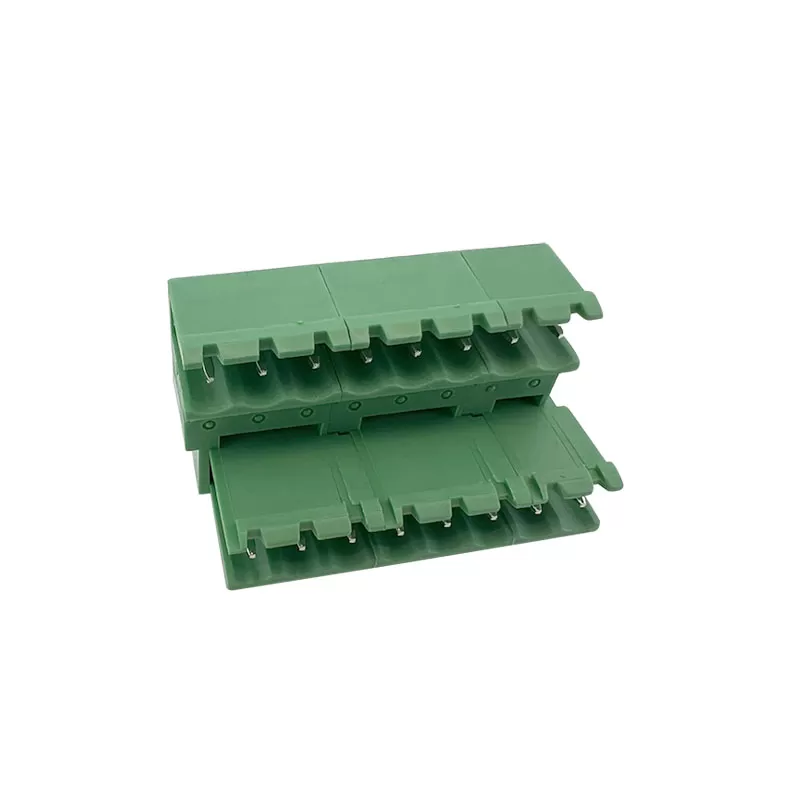

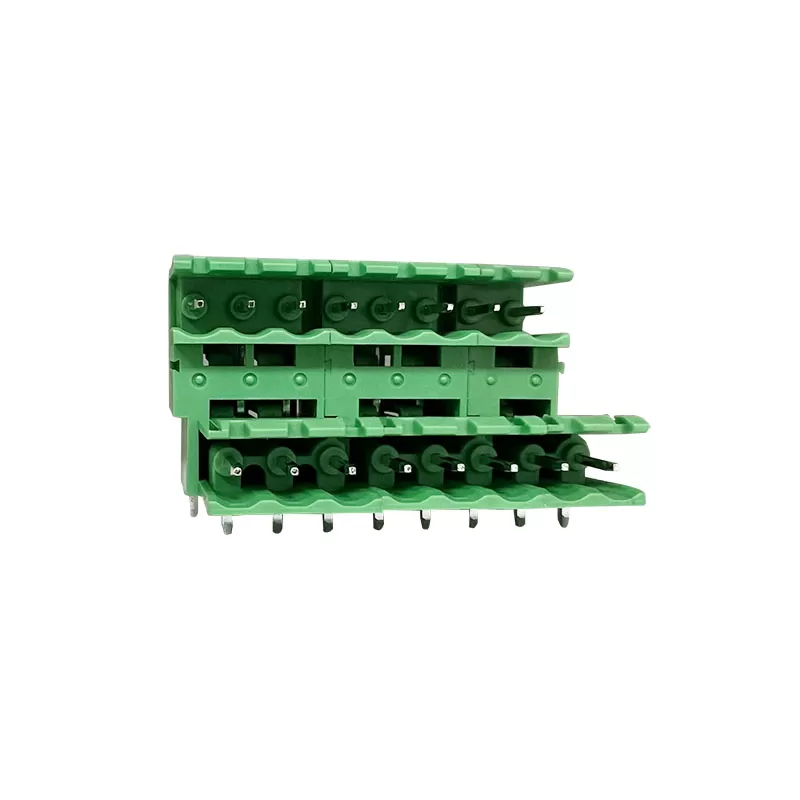

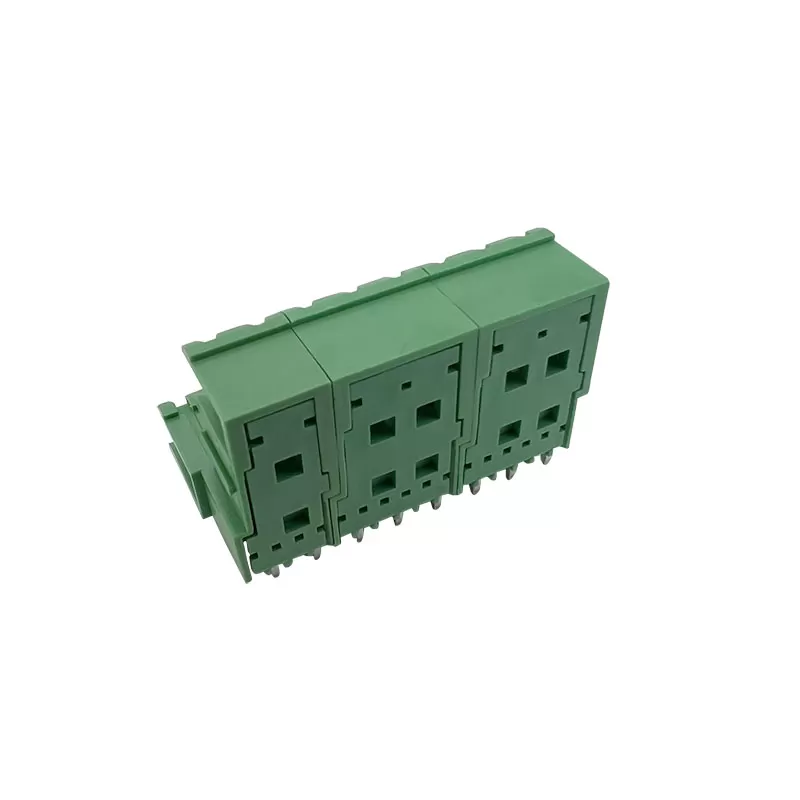

5.08mm Female Pluggable terminal block Right Angle :RHTBYDCR-5.08-16P-4
Pluggable terminal blocks is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Pluggable terminal blocks. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-5.08mm Pitch Design provides stable electrical spacing, suitable for power and signal transmission in industrial and control applications.
-Female Pluggable Structure allows quick plug in and removal, simplifying installation, maintenance, and modular system design.
-Right Angle PCB Mount optimizes space utilization on the circuit board, ideal for compact layouts and panel mounted assemblies.
-Reliable Contact Performance ensures secure wire connection, low contact resistance, and long term durability under industrial conditions.
Applications
1.Industrial Automation
2.Power Supply Systems
3.Control Panels & Control Systems
4.Building & Energy Management
Specifications
Electrical
Rated voltage: 300V
Rated current: 15A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Material
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Mechanical
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Technical Documents
Please contact us for more information.
