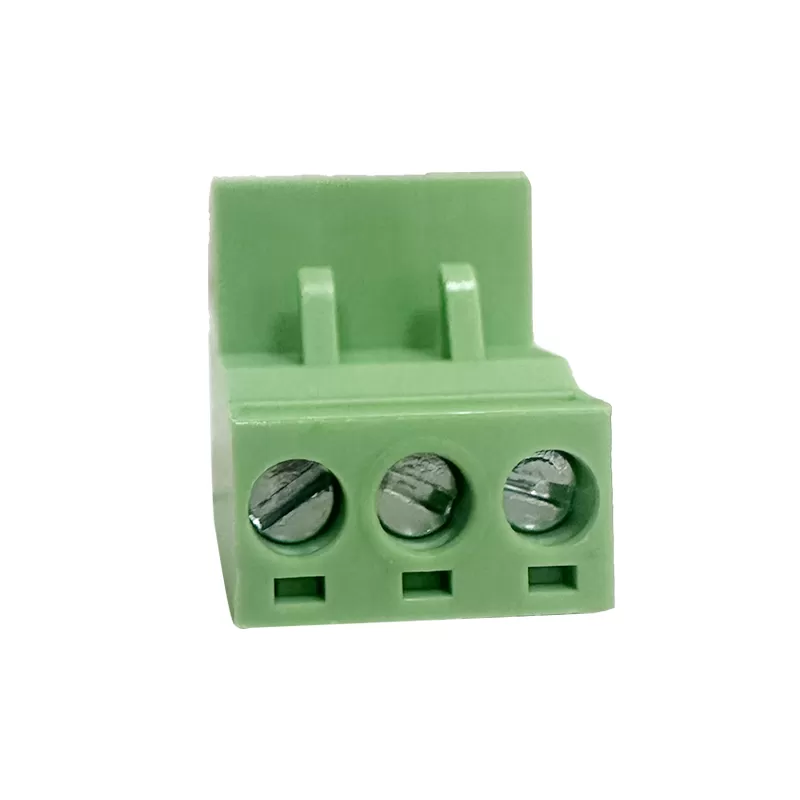

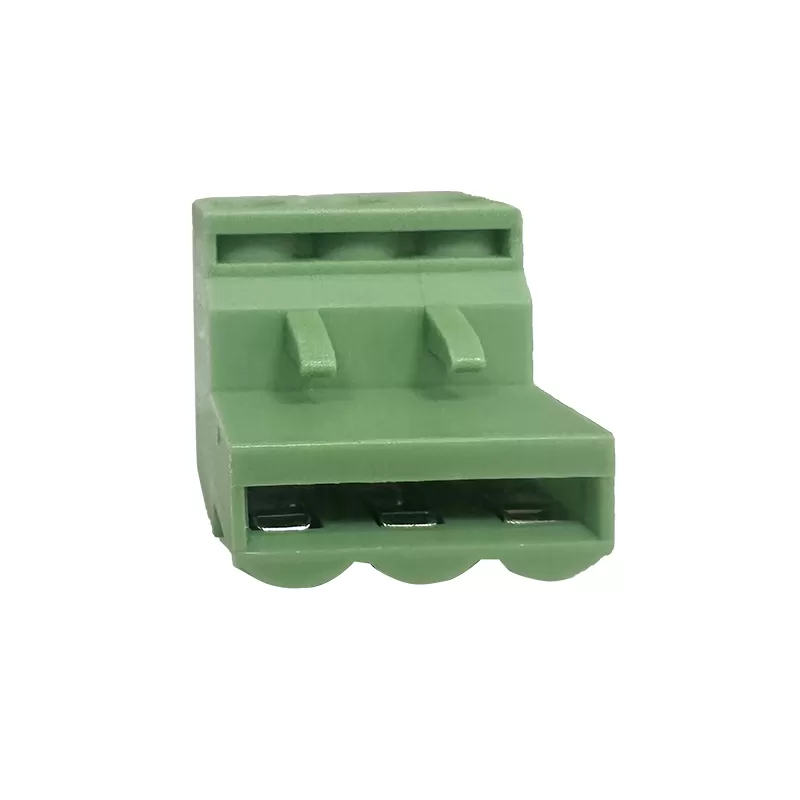

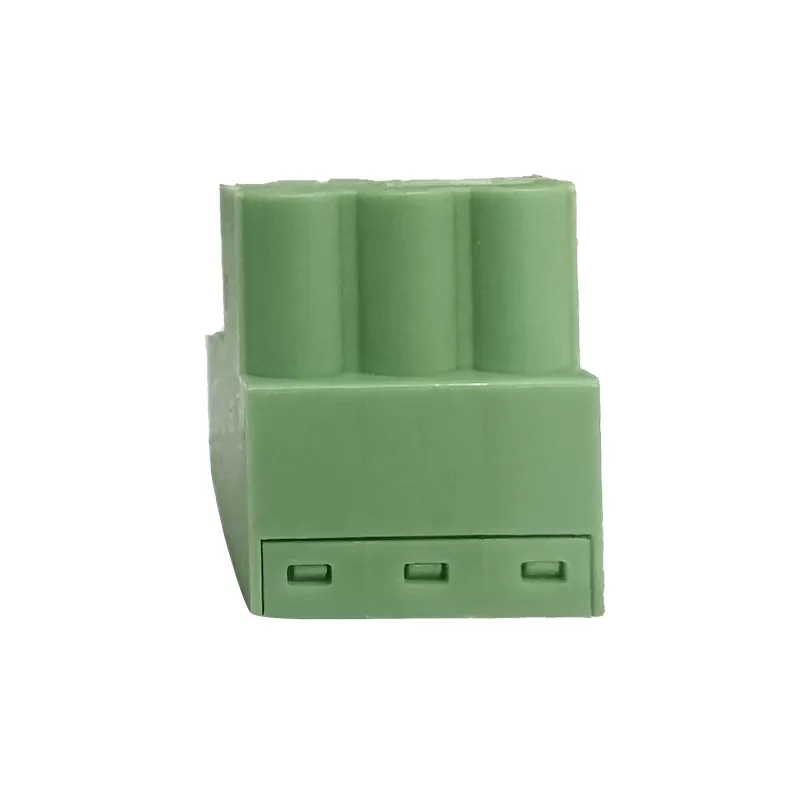

RHT provides a wide selection of Pluggable Terminal Blocks, supporting reliable electrical connections for industrial control systems, automation equipment, power supplies, and electronic devices.
With various pole configurations, pitch sizes, current ratings, voltage options, and plug-in connection designs, our products meet different wiring, installation, and maintenance requirements.
RHT works closely with engineering teams to provide suitable Pluggable Terminal Block solutions, from sample evaluation and design verification to product integration and technical support.
Features
-Pitch: 5.00mm pitch refers to the distance between each pin or terminal center, which is a standard spacing for many industrial and commercial applications.
-Type: Usually, plug terminal blocks are male connectors with pins that plug into a corresponding female socket or terminal block.
-Termination Type:Designed for wire-to-board connections, where wires are typically inserted into the terminal block and secured with screws, clamps, or spring mechanisms.
-Number of Contacts: Available in various configurations such as single-row or double-row with multiple contacts.
Applications
1. Telecommunications
2. Transportation
3. Medical Devices
4. Renewable Energy Systems
Specifications
Electrical
Rated voltage: 300V
Rated current: 18A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Wire range:28-14AWG 2.5mm²
Material
Screws: M3 steel Zinc plated
Contact: Brass,Ni Plated
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Mechanical
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 0.5Nm (3.54lb.in)
Strip length: 7-8mm
Technical Documents
Please contact us for more information.
