RHT provides a wide selection of Pluggable Terminal Blocks, supporting reliable electrical connections for industrial control systems, automation equipment, power supplies, and electronic devices.
With various pole configurations, pitch sizes, current ratings, voltage options, and plug-in connection designs, our products meet different wiring, installation, and maintenance requirements.
RHT works closely with engineering teams to provide suitable Pluggable Terminal Block solutions, from sample evaluation and design verification to product integration and technical support.
Features
-Wire Size Compatibility: Supports a range of wire sizes, accommodating various conductor diameters commonly used in electronics and electrical applications.

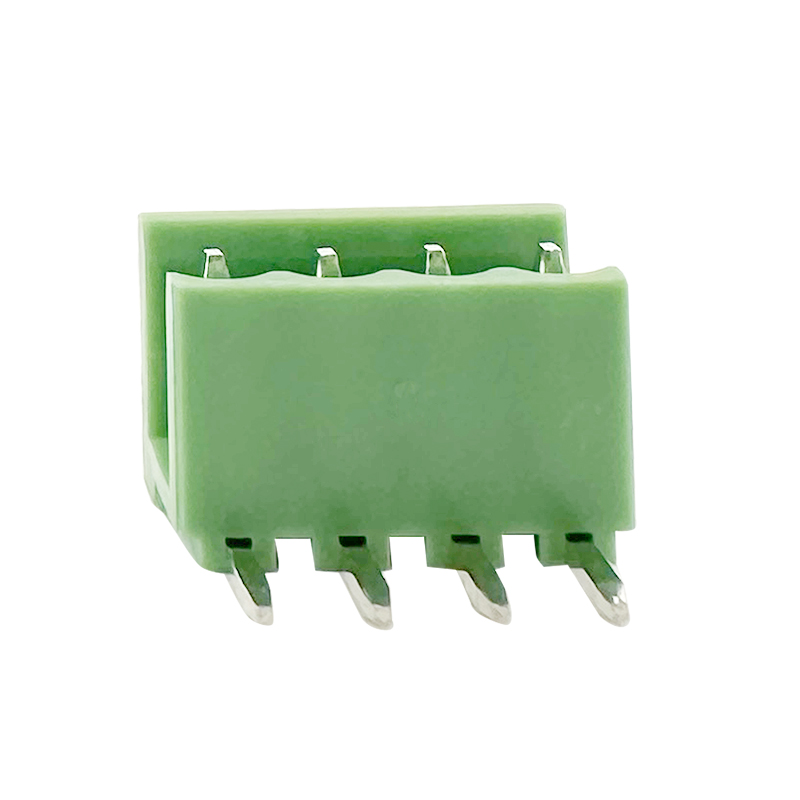

-Termination Method: Features right-angle pins for PCB (Printed Circuit Board) mounting, facilitating space-efficient installation on the PCB. This orientation is beneficial where vertical space is limited, allowing for compact PCB layouts.
-Mounting Options: Designed for PCB mounting using through-hole technology. The right-angle pin design ensures secure attachment to the PCB, providing stability and reliability of connections.
-Environmental Considerations: Resistant to environmental factors such as temperature variations, humidity, and mechanical stress, ensuring reliable performance in diverse operating conditions.
Applications
1.PCB Assembly
2.Consumer Electronics
3.Industrial Control Systems
4.Telecommunications Equipment
Specifications
Electrical
Rated voltage: 300V
Rated current: 18A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Wire range:28-14AWG 2.5mm²
Material
Screws: M3 steel Zinc plated
Contact: Brass,Ni Plated
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Mechanical
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 0.5Nm (3.54lb.in)
Strip length: 7-8mm
Technical Documents
Please contact us for more information.
