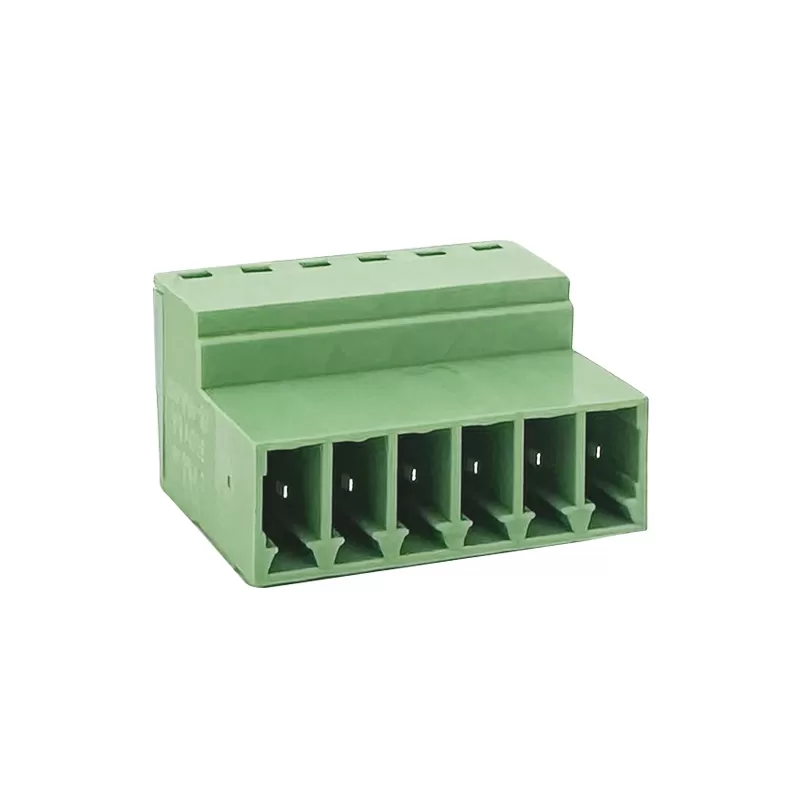

    3.81mm Male/Female Pluggable PCB terminal block:RHTBYDGF-3.81

    3.81mm Male/Female Pluggable PCB terminal block:RHTBYDGF-3.81

    Series P/N: RHTBYDGF-3.81

    RHT provides a wide selection of Pluggable Terminal Blocks, supporting reliable electrical connections for industrial control systems, automation equipment, power supplies, and electronic devices.

    With various pole configurations, pitch sizes, current ratings, voltage options, and plug-in connection designs, our products meet different wiring, installation, and maintenance requirements.

    RHT works closely with engineering teams to provide suitable Pluggable Terminal Block solutions, from sample evaluation and design verification to product integration and technical support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Male header (mounted on PCB) and female pluggable socket (wire connection)

    -Generally supports 8A to 10A, depending on wire size and design

    -Copper alloy, tin- or nickel-plated for conductivity and corrosion resistance

    -Allows for quick connection/disconnection without rewiring


    Applications

    1.Power Supply Units

    2.LED Lighting Systems

    3.Communication Equipment

    4.Building Automation


    Specifications

    Electrical

    Rated voltage: 300V

    Rated current: 8A

    Contact resistance: 20mΩ

    Insulation resistance: 500MΩ/DC500V

    Withstanding Voltage: AC1600V/1Min

    Wire range: 28-16AWG 1.5mm²

    Material

    Screws: M2 steel Zinc plated

    Pin header: Brass, Sn plated

    Housing: PA66, UL94V-0

    Mechanical

    Temp. Range: -40ºC~+105ºC

    Strip length:6-7mm


    Technical Documents

    Please contact us for more information.
