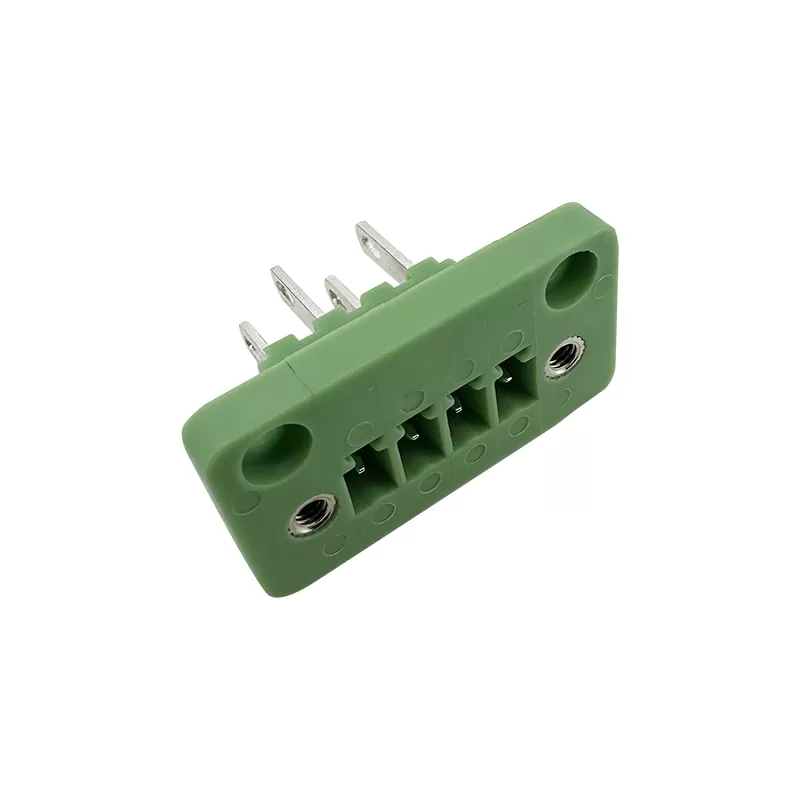

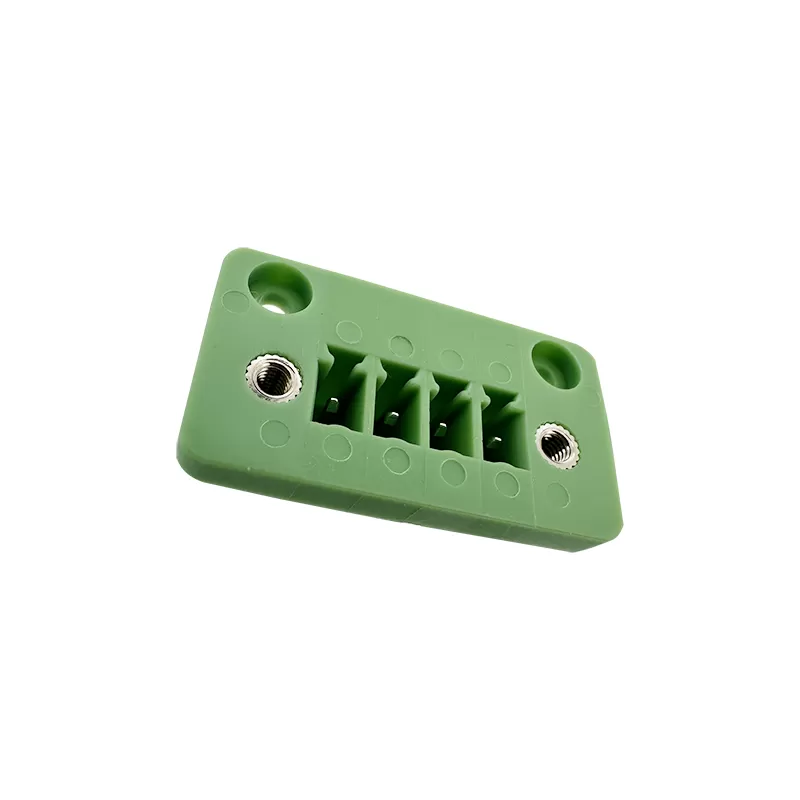

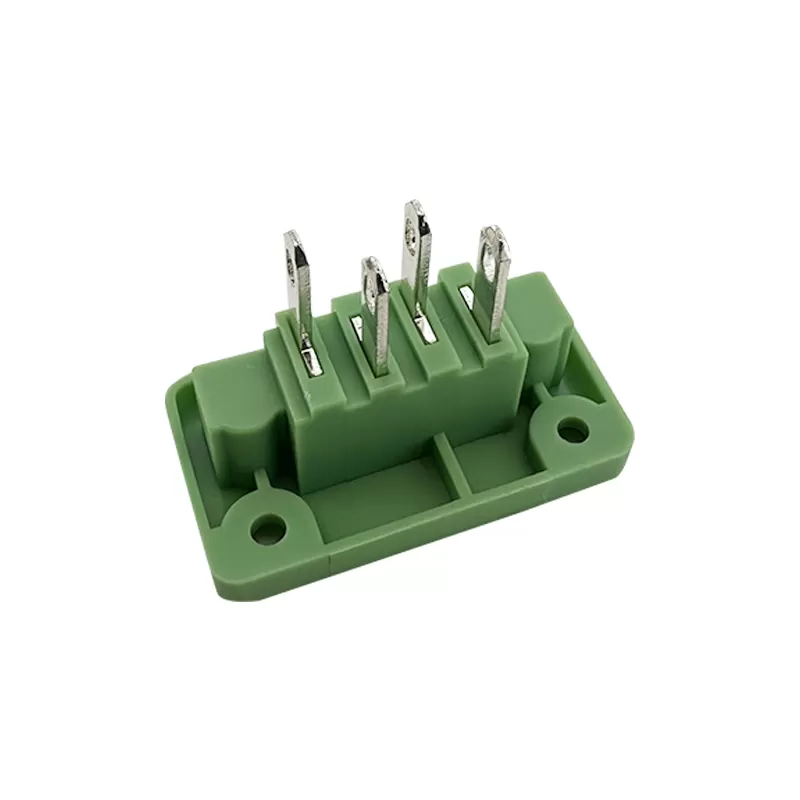

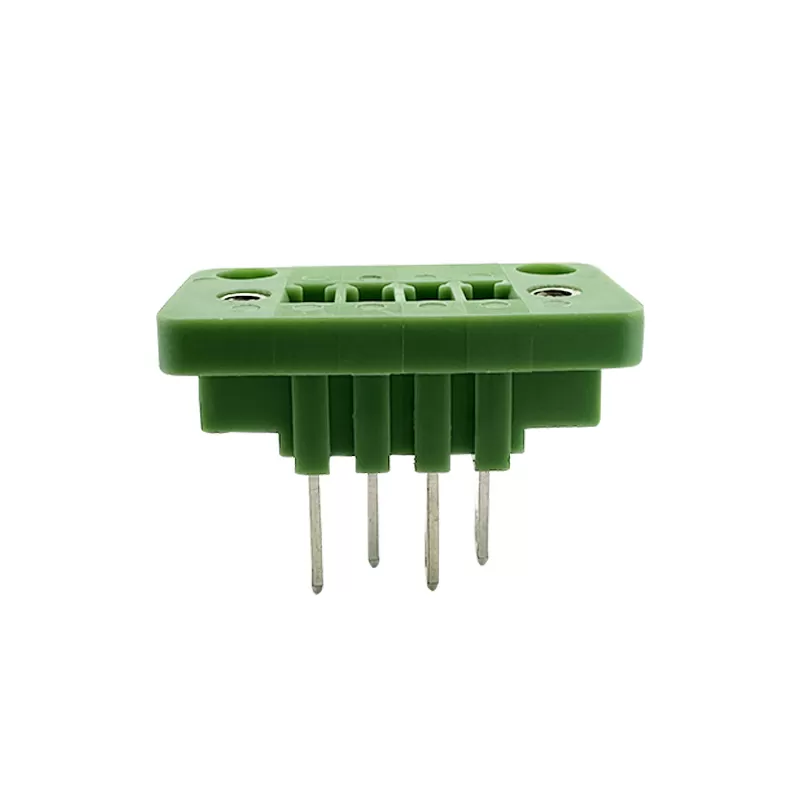

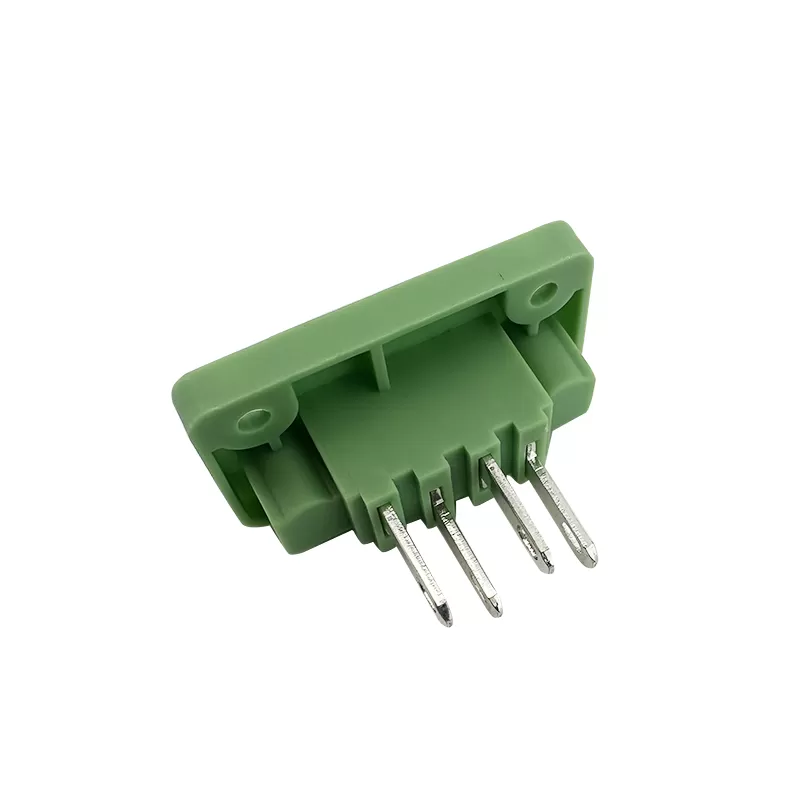

    3.81mm Female Pluggable PCB terminal block With Fixed hole:RHTBYDGM-3.81

    Series P/N:RHTBYDGM-3.81

    RHT provides a wide selection of Pluggable Terminal Blocks, supporting reliable electrical connections for industrial control systems, automation equipment, power supplies, and electronic devices.

    With various pole configurations, pitch sizes, current ratings, voltage options, and plug-in connection designs, our products meet different wiring, installation, and maintenance requirements.

    RHT works closely with engineering teams to provide suitable Pluggable Terminal Block solutions, from sample evaluation and design verification to product integration and technical support.




    Inquire Now
    Share
    Product parameter:

    Features

    -This size provides a balance between compactness and the ability to accommodate thicker wires and higher current, making it ideal for power connections in various systems.

    -The terminal block has female contacts designed to mate with corresponding male pins or plugs.

    -The female connector provides a secure connection, and the pluggable nature allows for easy installation and disconnection without soldering.

    -Orientation: Available in vertical and horizontal orientations to suit different PCB layouts and space constraints.


    Applications

    1.Test and Measurement Instruments

    2.Industrial Control Systems

    3.Telecommunications Equipment

    4.Prototyping and Custom Electronics


    Specifications

    Electrical

    Rated voltage: 300V

    Rated current: 8A

    Contact resistance: 20mΩ

    Insulation resistance: 500MΩ/DC500V

    Withstanding Voltage: AC1600V/1Min

    Material

    Screws: M2.5 steel Zinc plated

    Pin header: Brass,  Sn plated

    Housing: PA66, UL94V-0

    Mechanical

    Temp. Range: -40ºC~+105ºC

    MAX Soldering: +250ºC for 5 Sec.


    Technical Documents

    Please contact us for more information.
