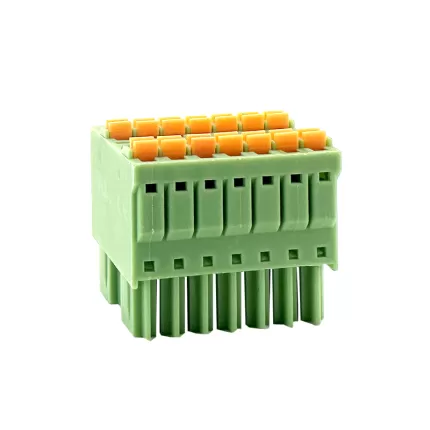

    3.50mm Male Pluggable terminal block double :RHTBYMCC-3.50

    3.50mm Male Pluggable terminal block double :RHTBYMCC-3.50

    Series P/N:RHTBYMCC-3.50

    RHT provides a wide selection of Pluggable Terminal Blocks, supporting reliable electrical connections for industrial control systems, automation equipment, power supplies, and electronic devices.

    With various pole configurations, pitch sizes, current ratings, voltage options, and plug-in connection designs, our products meet different wiring, installation, and maintenance requirements.

    RHT works closely with engineering teams to provide suitable Pluggable Terminal Block solutions, from sample evaluation and design verification to product integration and technical support.




    Inquire Now
    Share
    Product parameter:

    Features

    -The terminal block features male pins that protrude from the block and are designed to be inserted into a corresponding female pluggable terminal block or header.

    -Male pins provide a secure electrical contact when mated with female connectors, ensuring solid connections for various systems.

    -The double-row design allows for a higher pin density, meaning more connections can be made in a smaller space compared to a single-row configuration.

    -This design is ideal for applications where multiple connections need to be made in a compact footprint.


    Applications

    1.PHigh-Density PCB Designs

    2.Prototyping and Custom Electronics

    3.Railway and Transportation Systems

    4.Smart Grid and Energy Monitoring


    Specifications

    Electrical

    Rated voltage: 300V

    Rated current: 8A

    Contact resistance: 20mΩ

    Insulation resistance: 500MΩ/DC500V

    Withstanding Voltage: AC1600V/1Min

    Wire range: 24-16AWG 1.5mm²

    Material

    Pin header: Brass, Sn plated

    Housing: PA66, UL94V-0

    Mechanical

    Temp. Range: -40ºC~+105ºC

    Strip length:9-10mm


    Technical Documents

    Please contact us for more information.
