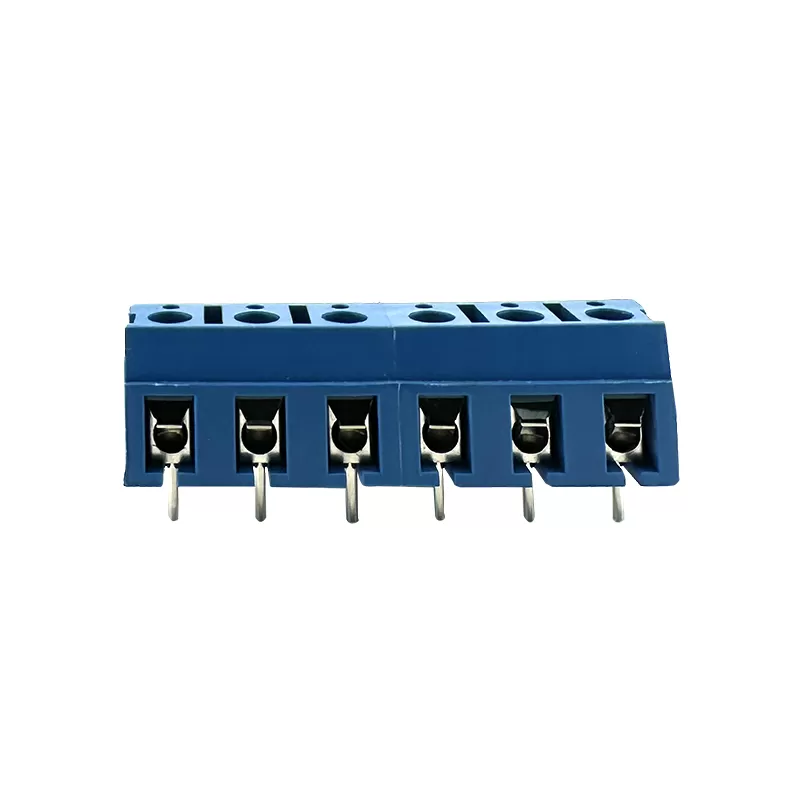

    PCB Terminal block 7.5mm Pitch:RHTBY00-7.50

    PCB Terminal block 7.5mm Pitch:RHTBY00-7.50

    Series P/N:RHTBY00-7.50

    RHT provides a wide selection of PCB Terminal Blocks with Wire Protectors, supporting reliable electrical connections for power supplies, industrial control systems, automation equipment, and electronic devices.

    With various pole configurations, pitch sizes, current ratings, voltage options, and wire protection designs, our products meet different PCB wiring and installation requirements.

    RHT works closely with engineering teams to provide suitable PCB Terminal Block with Wire Protector solutions, from sample evaluation and design verification to product integration and technical support.



    Inquire Now
    Share
    Product parameter:

    Features

    -Mounting Style: Designed for PCB mounting with through-hole pins or surface mount (SMT) pads, suitable for various PCB assembly processes such as wave soldering or reflow soldering.

    -Termination Types: Terminal blocks may feature screw clamp, spring clamp, or insulation displacement (IDC) terminations. These options provide flexibility in connection methods depending on the application requirements for ease of installation and maintenance.

    -Orientation: Available in different orientations including vertical (straight) and right-angle configurations, allowing for optimized PCB layout and space utilization based on specific application needs.

    -Locking Mechanism: Some terminal blocks feature locking mechanisms such as clips or screws to secure mating connectors or wires, ensuring a reliable and stable connection under vibration or movement.


    Applications

    1.Heavy Machinery and Equipment

    2.Renewable Energy Systems

    3.Automotive Electronics

    4.Telecommunications


    Specifications

    Material

    Screw:         M3, Steel,Zn plated

    Shrapnel:     Phosphor bronze, Nickel plated

    Pin header:  Brass, Tin plated

    Housing:      PA66, UL94V-0

    Electrical

    Rated voltage:  250V

    Rated current:  16A

    Wire range:      22~14AWG  2.5mm²

    Contact Resistance: 20 m Ω

    Insulation resistance:  500MΩ/DC500V

    Withstand voltage:      AC2000V / 1 min

    Mechanical

    Temp. Range:   -40 ° C ~ + 105 ° C

    Soldering:         250 ° C   5Sec.  Max.

    Torque:            0.5 N.m (4.43Lb. in)

    Strip length:     4.5~5 mm


    Technical Documents
