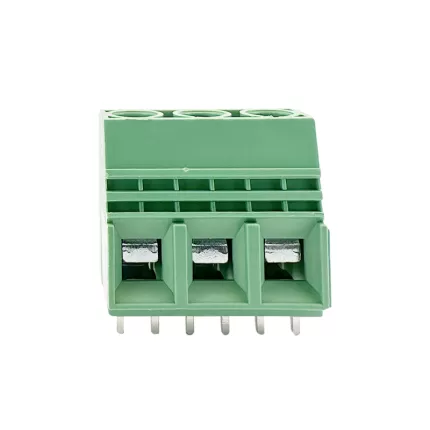

    10.16mm Screw Terminal Block Rising clamp:RHTBY49-10.16

    10.16mm Screw Terminal Block Rising clamp:RHTBY49-10.16

    Series P/N:RHTBY49-10.16

    RHT provides a wide selection of PCB Terminal Blocks with Rising Clamps, supporting reliable electrical connections for power supplies, industrial control systems, automation equipment, and electronic devices.

    With various pole configurations, pitch sizes, current ratings, voltage options, and wire connection designs, our products meet different PCB wiring and installation requirements.

    RHT works closely with engineering teams to provide suitable PCB Terminal Block with Rising Clamp solutions, from sample evaluation and design verification to product integration and technical support.



    Inquire Now
    Share
    Product parameter:

    Features

    -Voltage Rating: Specifies the maximum voltage the terminal block can withstand.

    -Material: Often made from materials like brass or steel for conductivity and durability.

    -Mounting Type: Describes how the terminal block is fixed to a surface, often via screws or snaps.

    -Features: Can include characteristics like a rising clamp mechanism, which allows for easy insertion and removal of wires by turning a screw to open and close the clamp.


    Applications

    1.Industrial Control Panels

    2.Power Distribution

    3.Automation Equipment

    4.Field Wiring


    Specifications

    Electrical

    Rated voltage:300V

    Rated current:52A

    Contact resistance: 20mΩ

    Insulation resistance: 500MΩ/DC500V

    Withstanding Voltage: AC2200V/1Min

    Wire range:20-6AWG10mm²

    Material

    Screws: M4steel Zinc plated

    Pin header: Brass, Sn plated

    Housing: PA66, UL94V-0

    Mechanical

    Temp. Range: -40ºC~+105ºC

    MAX Soldering: +250ºC for 5 Sec.

    Torque: 1.2Nm (10.6lb.in)

    Strip length: 10mm
